ABB 3HAC058991-004 Migration-Ready Servo Motor for IRB 6660

Overview

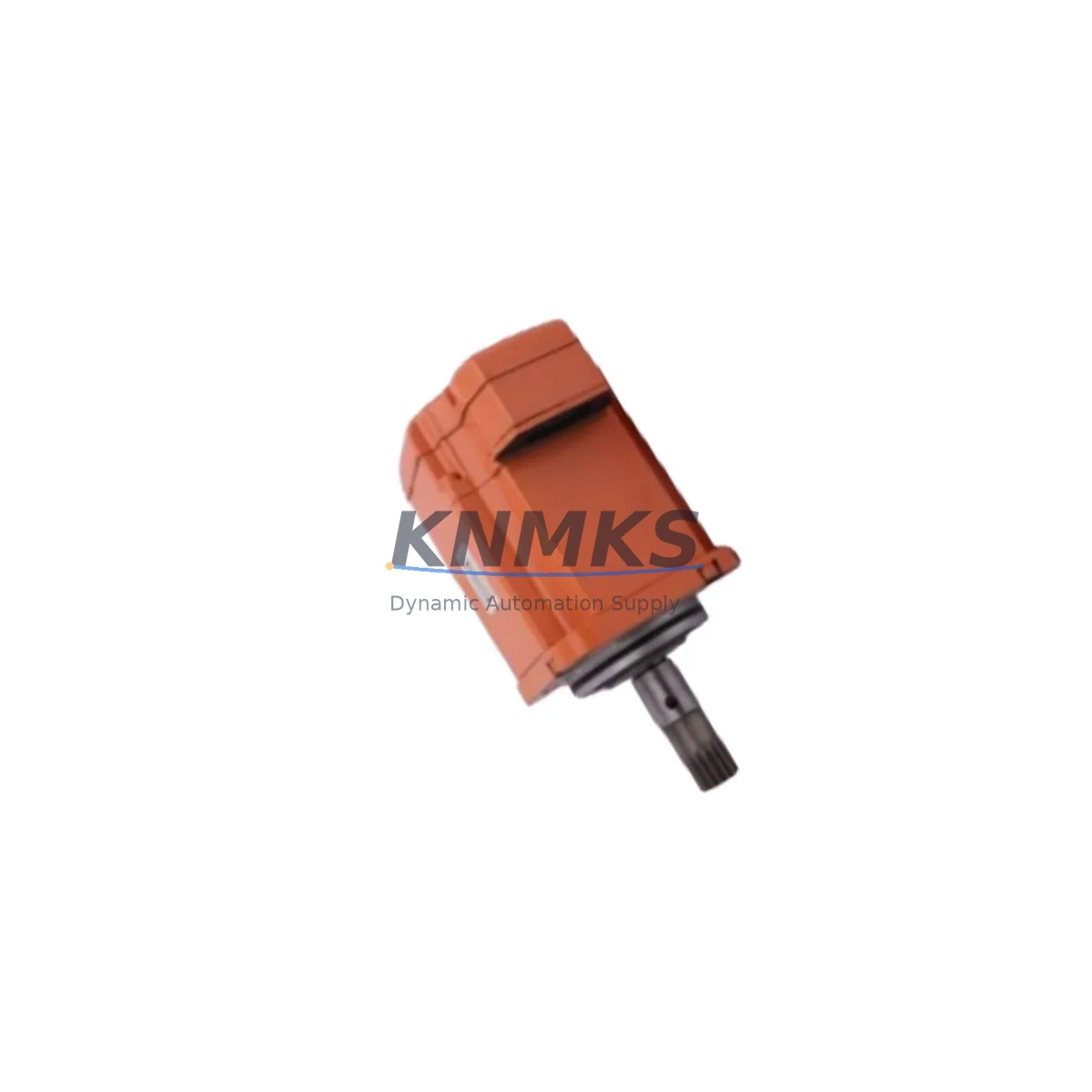

ABB 3HAC058991-004 Migration-Ready Servo Motor for IRB 6660: Legacy System Upgrade & Retrofit Solution

The ABB 3HAC058991-004 is a migration-ready servo motor engineered for direct replacement in ABB IRB 6660 and IRB 7602-33 robotic systems. As legacy automation lines face increasing pressure from discontinued OEM support, aging drive hardware, and obsolete spare parts pipelines, the 3HAC058991-004 provides a verified drop-in solution that preserves existing wiring harnesses, encoder feedback loops, and axis control logic without requiring full system re-engineering. Each unit is pre-tested against ABB’s original torque, speed, and thermal specifications, ensuring compatibility with S4C+, IRC5, and OmniCore controller platforms commonly found in legacy production environments.

For facilities operating IRB 6660 cells in press-tending, spot-welding, or heavy-material-handling applications, motor degradation is a leading cause of unplanned downtime. The 3HAC058991-004 addresses this directly: its connector pinout matches the original 3HAC034526-001 and 3HAC058991-003 variants, allowing technicians to swap the motor without modifying the existing cable management or junction box layouts. Power supply verification should confirm that the servo drive — typically an ABB DSQC 661 or equivalent drive module — delivers the correct DC bus voltage and current rating before installation. Mismatched drive output is one of the most common causes of post-replacement faults in IRB 6660 axis 1–3 configurations.

During retrofit planning, engineers should also audit the backplane interface and module addressing within the IRC5 controller cabinet. If the system uses a DSQC 652 digital I/O module or a DSQC 378B fieldbus adapter for DeviceNet or PROFIBUS communication, these components must be confirmed operational before the new motor is commissioned. Address conflicts between I/O modules and the motion controller can trigger SafeMove faults that halt the entire cell. Verifying the robot’s RobotWare firmware version — particularly for compatibility with axis calibration routines — is a mandatory pre-commissioning step. Firmware versions below RobotWare 6.x may require a patch before the new motor’s resolver data is correctly interpreted by the motion planner.

HMI screen updates are another frequently overlooked element of servo motor replacement. If the facility uses an ABB FlexPendant or a third-party SCADA panel linked to the IRC5 controller, axis status displays and torque monitoring screens may reference motor-specific parameters stored in the system configuration. After installing the 3HAC058991-004, technicians should validate that the HMI correctly reflects the new motor’s rated current and temperature thresholds. Communication links between the controller and any upstream PLC — such as an Allen-Bradley ControlLogix or Siemens S7-300 coordinating the press line — should be tested under simulated load before returning the cell to production.

Installation space confirmation is essential for IRB 7602-33 applications, where the motor mounting flange and cable exit direction must align with the existing robot arm geometry. The 3HAC058991-004 retains the same mechanical envelope as the original motor, but technicians should verify that any aftermarket cable brackets or conduit guides installed during previous maintenance cycles do not interfere with the new unit’s connector housing. A torque wrench calibrated to ABB’s specified fastener values should be used during final assembly to prevent housing stress fractures that can develop over high-cycle press-tending operations.

Once installed, the commissioning sequence should include a full axis calibration using ABB’s CalPendulum or equivalent calibration tool, followed by a load identification routine to update the motor model parameters in the IRC5 motion controller. This step is critical for maintaining path accuracy in welding or press-tending applications where positional repeatability directly affects product quality. After calibration, a 30-minute warm-up cycle under reduced load is recommended before returning the robot to full production speed. All test results, including peak torque readings, thermal sensor outputs, and resolver feedback values, should be documented for the maintenance record.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IRB 6660 or IRB 7602-33 retrofit begins well before the motor arrives on site. The first step is a full audit of the IRC5 controller cabinet, including the condition of the DSQC 661 servo drive module, the DSQC 652 digital I/O board, and the DSQC 378B fieldbus communication adapter. These components interact directly with the servo motor’s feedback signals and must be confirmed fault-free before the new 3HAC058991-004 is installed. If the drive module shows signs of capacitor aging or thermal stress — common in systems with more than 10 years of continuous operation — replacement of the drive alongside the motor is strongly recommended to avoid repeat failures.

Power capacity verification is the next critical checkpoint. The servo drive must supply the correct DC bus voltage and peak current for the 3HAC058991-004’s rated torque output. In multi-axis IRB 6660 installations, the total power demand across all active axes must be calculated against the cabinet’s power supply module rating. Undersized power supplies are a frequent root cause of intermittent axis faults that are misdiagnosed as motor failures. The ABB PSU module installed in the IRC5 cabinet should be checked against the robot’s axis load data before commissioning the replacement motor.

For facilities integrating the IRB 6660 into a broader production line controlled by a Siemens S7-300 or S7-1500 PLC, the communication link between the PLC and the IRC5 controller — typically via PROFIBUS DP or PROFINET — must be validated after motor replacement. Any changes to the robot’s axis configuration or safety zone parameters may require a corresponding update to the PLC’s function block library. Signal isolation between the robot controller and the PLC’s analog input modules should also be verified, particularly in environments with high electromagnetic interference from welding equipment or variable-frequency drives. A signal isolator module installed at the cabinet interface can prevent ground loop faults that corrupt position feedback data.

Downtime Control During System Migration

Minimizing downtime during a servo motor replacement on an IRB 6660 or IRB 7602-33 requires a structured pre-outage preparation protocol. Before the scheduled maintenance window, technicians should back up the full IRC5 system configuration — including the RAPID program, tool data, work object definitions, and SafeMove safety configuration — to an external USB drive or network share. This backup ensures that if any parameter is inadvertently altered during the motor swap, the original program logic can be restored within minutes rather than hours.

The motor replacement itself, when performed by a trained ABB-certified technician with the correct tooling, typically requires two to four hours for a single axis on the IRB 6660. The majority of this time is consumed by the axis calibration and load identification routines rather than the physical swap. Pre-staging the 3HAC058991-004 alongside the calibration tools, torque wrenches, and a pre-loaded FlexPendant with the calibration routine reduces the active outage window significantly. If the facility operates a two-shift production schedule, scheduling the replacement at the shift changeover minimizes the impact on overall equipment effectiveness.

After the motor is installed and calibrated, a controlled restart sequence should be followed: first verify all safety circuits, then perform a slow-speed manual jog through the full axis range to confirm smooth motion and correct resolver feedback, then run the production program at 25% speed before returning to full production velocity. This staged restart approach catches any residual wiring or calibration issues before they cause a high-speed fault that could damage tooling or fixtures. Documenting the total outage duration and the post-replacement performance metrics supports continuous improvement tracking and justifies the investment in migration-ready spare parts inventory.

Retrofit Support FAQ

Q1: Is the ABB 3HAC058991-004 a direct replacement for the 3HAC034526-001 and 3HAC058991-003?
Yes. The 3HAC058991-004 is connector-compatible and mechanically interchangeable with the 3HAC034526-001 and 3HAC058991-003 in IRB 6660 and IRB 7602-33 applications. No wiring modifications are required. A full axis calibration is required after installation to update the motion controller’s motor model parameters.

Q2: What pre-shipment testing is performed on each unit?
Every 3HAC058991-004 unit is tested for rated torque output, no-load speed accuracy, thermal sensor continuity, and resolver feedback signal integrity before dispatch. Test records are available upon request. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions.

Q3: Can this motor be used with an IRC5 controller running an older RobotWare version?
The 3HAC058991-004 is fully compatible with RobotWare 6.x and later. For systems running earlier firmware versions, a RobotWare patch may be required to correctly interpret the motor’s resolver data. Contact our technical support team before ordering if your system runs RobotWare 5.x or earlier, and we will confirm compatibility and patch availability for your specific controller serial number.

Q4: What is the typical lead time and stock availability?
The 3HAC058991-004 is held availability confirmed by RFQ for immediate dispatch. Standard orders are processed within one business day. For urgent breakdown situations, expedited shipping is available. Our inventory is maintained with a minimum 12-month buffer stock to support long-lifecycle installations and prevent supply chain disruptions caused by OEM discontinuation. Contact [email protected] or call +86 18359268345 to confirm current stock levels and shipping options for your region.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

IRB66603HAC058991-004 3HAC058991-003 IRB7602-33HAC034526-001 IRB7602-33HAC058991-004
IRC5 Series

Product Family

Servo Systems

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Motion range

Servo drives, motors and cable sets

Common needs

Power, encoder and brake confirmation

Project support

Motion upgrade and spare-part supply

Inquiry Support

• Motor, drive and cable set coordination
• Power rating and encoder type checking
• Motion control replacement support

What to Send Us

• Brand and exact model number: ABB IRB66603HAC058991-004 3HAC058991-003 IRB7602-33HAC034526-001 IRB7602-33HAC058991-004
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
