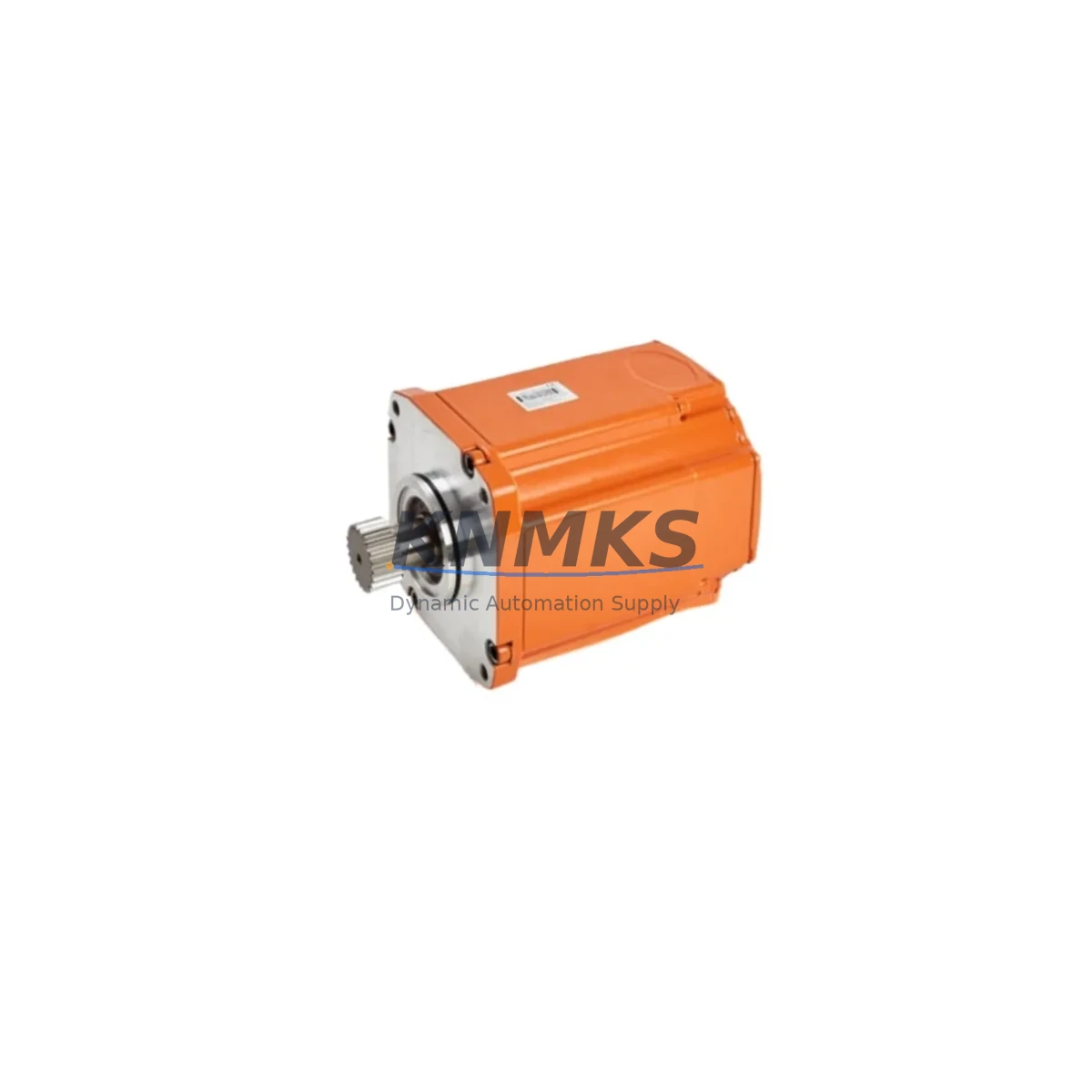

ABB 3HAC057549-003 Fail-Safe AC Servo Motor IRB 6650

Overview

ABB 3HAC057549-003 Fail-Safe AC Servo Motor IRB 6650: Fault-Protected Reliability for Critical Industrial Sites

The ABB 3HAC057549-003 is a precision-engineered AC servo motor designed specifically for the ABB IRB 6650 industrial robot series. Built to operate in demanding continuous-production environments, this motor delivers fail-safe motion control with robust protection against the electrical and mechanical hazards that threaten uptime in heavy industrial settings. Whether deployed in automotive body shops, metal stamping lines, petrochemical handling cells, or high-cycle palletizing systems, the 3HAC057549-003 is engineered to keep critical robot axes running without unplanned interruption.

In high-electromagnetic-interference environments — common in arc welding bays, large drive rooms, and switchgear-dense control cabinets — servo motors are vulnerable to signal drift, encoder feedback corruption, and torque instability. The ABB 3HAC057549-003 addresses these risks through shielded winding architecture and precision-balanced rotor construction, maintaining positional accuracy even when adjacent frequency inverters, contactors, or bus-coupled drives generate conducted or radiated interference. This makes it a dependable choice for safety-critical robot axes where motion deviation could trigger interlock faults or endanger personnel.

Surge and transient protection is equally critical in industrial power systems subject to switching events, capacitor bank operations, or utility grid instability. The 3HAC057549-003 is rated for operation within ABB’s IRC5 controller ecosystem, which incorporates coordinated overvoltage clamping and regenerative braking management through the ABB DSQC639 drive unit and associated axis computer modules. When paired with properly specified ABB 3HAC026254-001 power supply units, the servo system maintains stable bus voltage during deceleration transients, preventing nuisance trips and protecting motor windings from voltage spikes that degrade insulation over time.

Thermal management is a persistent challenge in enclosed robot control cabinets and confined workcell enclosures. The 3HAC057549-003 features a thermally optimized frame with integrated temperature monitoring compatibility, allowing the IRC5 controller to implement protective speed derating before thermal limits are reached. In high-ambient-temperature foundry or forge environments, this proactive thermal feedback loop prevents the motor from entering fault states that would halt production. Complementary cabinet cooling components — including ABB 3HAC025338-001 fan units — should be maintained in parallel to ensure adequate airflow across the drive stack and servo amplifier modules.

Dust, moisture, and vibration are constant threats in mining, cement, port crane, and food-processing installations. The 3HAC057549-003’s sealed bearing arrangement and robust encoder housing resist particulate ingress and condensation that would otherwise cause premature bearing failure or encoder signal loss. In high-vibration applications such as press-tending or heavy-payload transfer robots, the motor’s precision-balanced rotor minimizes resonance-induced wear, extending mean time between replacements and reducing the frequency of unscheduled maintenance windows.

For safety interlock circuits and emergency-stop architectures, the servo motor’s compatibility with ABB’s SafeMove safety controller option ensures that axis motion can be reliably monitored and halted within certified response times. When integrated with ABB 3HAC044168-001 SafeMove boards and properly configured safety-rated I/O modules, the 3HAC057549-003 supports SIL 2 / PLd-compliant robot safety functions including safe speed monitoring, safe standstill, and safe direction control — essential for collaborative workcells and guarded installations where personnel access during reduced-speed operation is required.

Communication integrity between the servo motor’s encoder and the IRC5 axis computer is maintained through ABB’s proprietary resolver or encoder feedback protocols. Signal cable routing, connector integrity, and shield termination at the ABB 3HAC031683-001 measurement board are critical to preventing feedback errors that manifest as axis following errors or unexpected protective stops. KNMKS supplies the 3HAC057549-003 with pre-shipment continuity and insulation resistance testing to verify winding health and encoder signal quality before dispatch, reducing the risk of installation failures in the field.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable servo motor performance begins at the control cabinet level. In IRB 6650 installations, the 3HAC057549-003 operates as part of a tightly integrated drive chain that depends on the health of every upstream component. The ABB DSQC639 drive unit governs axis current regulation and regenerative energy management; a degraded drive unit will produce torque ripple and thermal stress on the motor even if the motor itself is in perfect condition. Similarly, the ABB 3HAC026254-001 main computer unit coordinates motion path execution and safety supervision — any firmware inconsistency or hardware fault here can generate spurious axis faults that are incorrectly attributed to the servo motor.

Power quality at the cabinet input directly affects motor longevity. Installations in regions with unstable grid supply should incorporate line reactors or active front-end filters upstream of the IRC5 cabinet to suppress harmonic distortion and voltage notching. Within the cabinet, the ABB 3HAC025338-001 cooling fan assembly must maintain adequate airflow across the drive modules; a blocked or failed fan can raise ambient temperature inside the enclosure by 15–25°C, accelerating insulation aging in both the drive unit and the connected servo motor. Periodic inspection of fan operation and filter media is a low-cost intervention that significantly extends the service life of the entire axis drive system.

For installations where the robot operates in safety-rated reduced-speed zones, the ABB 3HAC044168-001 SafeMove board provides certified axis monitoring. Ensuring this board’s firmware is current and its configuration is validated against the robot’s safety layout is essential before returning a repaired or replaced servo motor to service. The ABB 3HAC031683-001 measurement board handles encoder signal conditioning; connector re-seating and shield integrity checks at this board should be part of any servo motor replacement procedure to prevent feedback-related faults after installation.

Critical Industrial Safety Applications

The ABB 3HAC057549-003 servo motor is deployed across a wide range of safety-critical industrial sectors where robot uptime directly affects production continuity and personnel safety.

In petrochemical and refinery facilities, IRB 6650 robots perform drum handling, valve assembly, and hazardous material transfer in classified zones. Servo motor reliability in these environments is non-negotiable — an axis fault during a transfer cycle can trigger emergency shutdowns with significant safety and financial consequences. The 3HAC057549-003’s robust construction and compatibility with ABB’s safety monitoring functions support the stringent reliability requirements of these installations.

In electric power generation and transmission facilities, robots equipped with IRB 6650 axes perform transformer component handling and high-voltage substation maintenance tasks. The motor’s EMI resistance is particularly valuable in these environments, where strong magnetic fields from large transformers and bus bars can interfere with less robust servo systems.

In mining and mineral processing operations, continuous-duty robot cells handle ore sampling, conveyor loading, and equipment maintenance in environments characterized by heavy dust, vibration, and temperature extremes. The 3HAC057549-003’s sealed construction and thermal management compatibility make it well-suited for these demanding conditions.

In water and wastewater treatment plants, robots perform chemical dosing, pipe inspection, and valve actuation in high-humidity, corrosive-atmosphere environments. Servo motor reliability in these installations prevents unplanned downtime that could compromise treatment process continuity and regulatory compliance.

In port and maritime logistics operations, IRB 6650 robots handle heavy cargo, container components, and ship maintenance tasks in salt-air, high-humidity environments with significant vibration from vessel movement and crane operations. The motor’s robust bearing and encoder protection supports reliable operation in these challenging conditions.

In continuous manufacturing — automotive body welding, press-tending, and large-part assembly — the 3HAC057549-003 supports high-cycle, high-payload robot axes where any unplanned stop propagates immediately to downstream production cells. Maintaining a qualified spare in inventory is standard practice for these installations, and KNMKS supports this strategy with reliable stock availability and fast global dispatch.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the ABB 3HAC057549-003?
All ABB 3HAC057549-003 units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and premature failure under normal operating conditions. Support terms support includes technical consultation, replacement coordination, and documentation to support your maintenance records.

Q2: What pre-shipment testing is performed on each unit?
Every unit undergoes winding continuity testing, insulation resistance measurement (Megger test), and encoder/resolver signal verification before dispatch. Test records are available upon request to support incoming inspection and quality assurance requirements.

Q3: Is the 3HAC057549-003 compatible with all IRC5 controller variants?
The 3HAC057549-003 is designed for the ABB IRB 6650 robot series operating with the IRC5 controller platform. Compatibility with specific axis positions and IRC5 cabinet variants (single cabinet, dual cabinet, panel-mounted) should be confirmed against your robot’s axis configuration documentation. KNMKS technical support can assist with compatibility verification prior to order.

Q4: Can KNMKS support long-term supply for ongoing maintenance programs?
Yes. KNMKS maintains stock of the ABB 3HAC057549-003 and related IRB 6650 spare parts to support planned maintenance programs, emergency replacements, and multi-unit procurement for fleet operators. Long-term supply agreements and priority allocation for high-volume customers are available — contact [email protected] to discuss your requirements.
