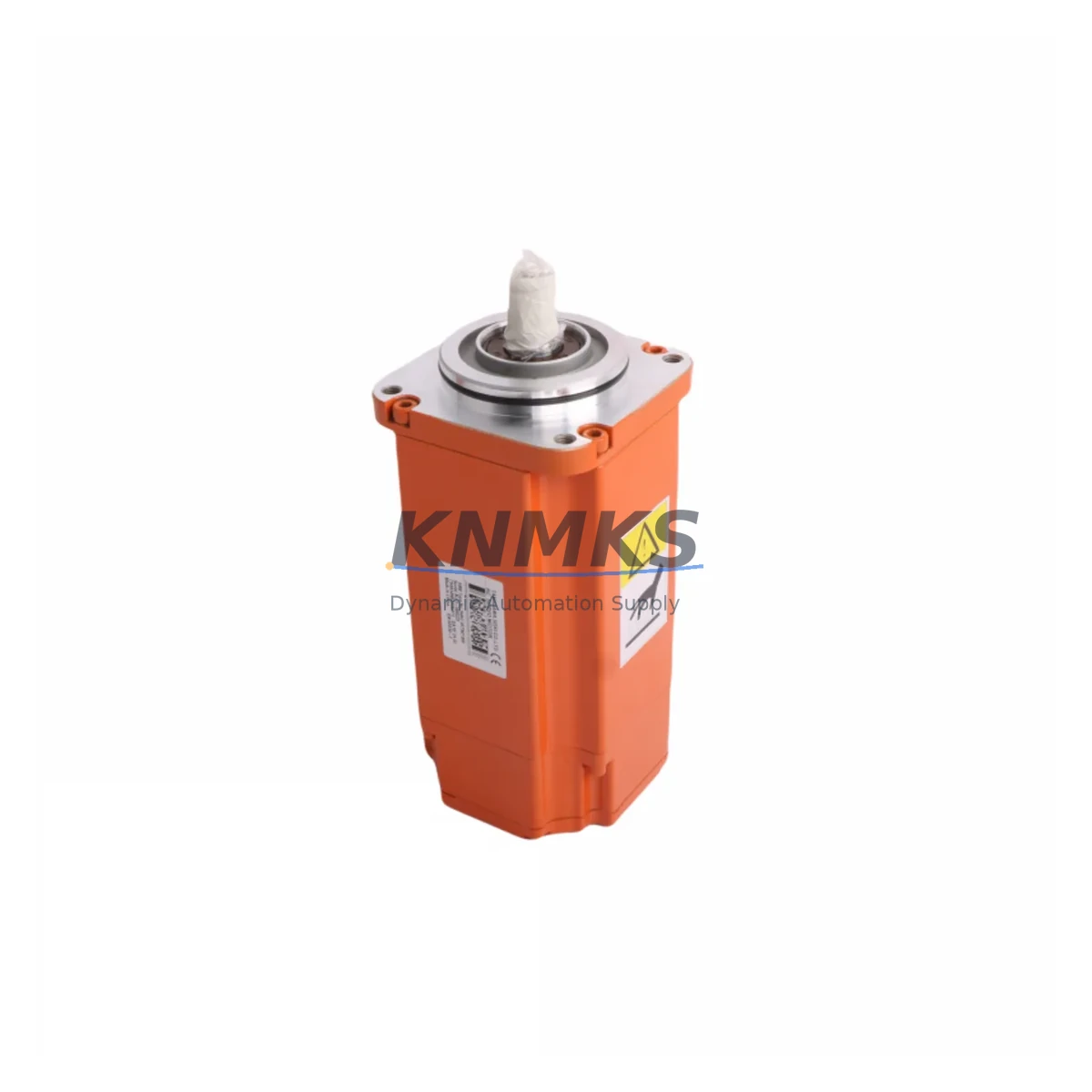

ABB 3HAC057547-003 Fail-Safe AC Servo Drive Motor

Overview

ABB 3HAC057547-003 Fail-Safe AC Servo Drive Motor: Fault Protection and Critical Industrial Field Reliability

The ABB 3HAC057547-003 is a precision-engineered AC servo drive motor designed for the ABB IRB 6700 series industrial robot, one of the most widely deployed heavy-payload robotic platforms in continuous manufacturing, automotive assembly, and process automation. In high-demand environments where unplanned downtime carries severe operational and safety consequences, the 3HAC057547-003 delivers the fail-safe performance, signal integrity, and thermal resilience that critical control cabinets demand.

Engineered to ABB’s stringent robotics motion control standards, this servo motor integrates directly with the ABB IRC5 controller cabinet, operating in close coordination with the DSQC 661 drive unit and the 3HAC026254-001 axis computer module. Its closed-loop feedback architecture ensures precise torque and velocity regulation even under variable load conditions, eliminating the risk of positional drift, axis runaway, or uncontrolled motion that can compromise both product quality and personnel safety.

In environments characterized by high electromagnetic interference — such as arc welding cells, high-frequency induction heating stations, or heavy motor drive rooms — the 3HAC057547-003 maintains stable encoder signal transmission and consistent commutation response. This EMI resilience is critical in preventing false fault triggers, axis desynchronization, and emergency stop cascades that interrupt production cycles. When paired with the ABB 3HAC025338-001 resolver cable assembly and properly shielded cable routing through the robot’s dress pack, signal integrity is preserved across the full operating range.

Thermal management is a key reliability factor for servo motors operating in high-cycle, high-torque applications. The 3HAC057547-003 is rated for continuous operation across a wide ambient temperature range, with internal thermal protection that prevents winding damage during sustained peak-load cycles. In foundry, die-casting, and metal stamping environments where ambient temperatures and radiant heat loads are elevated, this thermal robustness directly reduces the risk of insulation breakdown and premature bearing failure — two of the most common causes of unplanned servo axis downtime.

Surge and transient voltage protection is equally critical in industrial power environments. The 3HAC057547-003 is designed to withstand the voltage transients common in facilities with large inductive loads, capacitor bank switching, or inadequate power conditioning. When the IRC5 cabinet’s 3HAC036447-001 power supply module is properly maintained and the drive system is protected by appropriate surge suppression, the servo motor’s winding insulation and encoder electronics remain protected against the cumulative degradation that leads to intermittent faults and eventual failure.

For facilities operating in dusty, humid, or chemically aggressive atmospheres — including cement plants, food processing lines, and chemical reactor areas — the motor’s sealed construction and robust IP-rated housing prevent contaminant ingress that would otherwise accelerate bearing wear and encoder contamination. This environmental resilience supports the extended mean time between failures (MTBF) that maintenance planners require when scheduling predictive maintenance intervals.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable servo axis performance in the IRB 6700 depends on a well-maintained and correctly specified IRC5 control cabinet ecosystem. The 3HAC057547-003 servo motor operates as part of an integrated motion control chain that includes the DSQC 661 drive module, which regulates current delivery and monitors axis feedback in real time. Any degradation in the drive module’s current regulation directly impacts motor torque linearity and can introduce the micro-vibrations that accelerate mechanical wear in high-precision assembly applications.

The 3HAC036447-001 IRC5 power supply module is the upstream protection point for the entire servo system. Voltage ripple, brownout conditions, or capacitor aging in the power supply can introduce instability into the servo loop, manifesting as position hunting, increased following error, or nuisance fault codes. Regular inspection and timely replacement of the power supply module is a critical preventive measure for facilities that cannot tolerate unplanned axis faults.

Cable integrity is equally important. The 3HAC025338-001 resolver cable assembly connects the motor’s feedback encoder to the drive unit, and any shield discontinuity, connector corrosion, or cable flex fatigue in this signal path will degrade position accuracy and can trigger safety-critical axis monitoring faults. In high-cycle applications where the robot’s cable dress pack undergoes continuous flexing, proactive cable replacement at scheduled intervals is strongly recommended.

For facilities managing multiple IRB 6700 units, maintaining a verified spare of the 3HAC057547-003 alongside the DSQC 679 teach pendant and the 3HAC044168-001 SMB battery unit ensures that the most common single-point failure components can be addressed within a single maintenance shift, minimizing the production impact of any unplanned axis fault.

Critical Industrial Safety Applications

The ABB 3HAC057547-003 is deployed across a broad range of safety-critical and continuous-process industrial environments. In automotive body-in-white welding lines, IRB 6700 robots equipped with this servo motor perform high-speed, high-force spot welding and material handling operations where any axis fault triggers an immediate line stop and potential safety interlock activation. The motor’s fail-safe design and robust feedback system support the rapid fault detection and controlled deceleration required by functional safety standards in these environments.

In petrochemical and refinery facilities, IRB 6700 robots are used for valve manipulation, pipe handling, and inspection tasks in areas classified as hazardous locations. The servo motor’s sealed construction and stable thermal performance are essential for reliable operation in these environments, where maintenance access is restricted and unplanned downtime carries both safety and regulatory consequences.

Heavy metallurgical operations — including steel mill ladle handling, aluminum smelter anode changing, and foundry pouring operations — subject servo motors to extreme thermal radiation, vibration, and airborne particulate contamination. The 3HAC057547-003’s robust mechanical construction and thermal protection make it a preferred replacement choice for maintenance engineers managing robot fleets in these demanding environments.

Port and logistics automation, including container handling and heavy palletizing systems, relies on continuous multi-shift operation with minimal maintenance windows. In these applications, the availability of a verified, pre-tested replacement 3HAC057547-003 with a support terms confirmed by quotation provides the supply chain assurance that maintenance planners require to support their preventive maintenance programs.

Safety and Quality FAQ

Q: What support terms coverage is provided for the ABB 3HAC057547-003?
A: Every 3HAC057547-003 unit is covered by a support terms confirmed by quotation from the date of dispatch. This covers manufacturing defects, electrical failures, and performance deviations from ABB’s published specifications. Support requests are supported with direct technical assistance and expedited replacement dispatch.

Q: What pre-shipment testing is performed before dispatch?
A: Each unit undergoes a full pre-shipment inspection including electrical continuity testing, insulation resistance measurement, encoder signal verification, and mechanical rotation check. Units that do not meet ABB’s original performance specifications are not dispatched. A test report is available upon request.

Q: Is the 3HAC057547-003 compatible with all IRB 6700 variants and the IRC5 controller?
A: The 3HAC057547-003 is the ABB-specified servo motor for the IRB 6700 series and is fully compatible with the IRC5 controller cabinet across all standard IRB 6700 payload and reach variants. Customers should verify the axis position (J1–J6) requirement for their specific robot configuration before ordering. Technical support is available to confirm compatibility.

Q: Can long-term supply be guaranteed for ongoing maintenance programs?
A: Yes. We maintain multi-region stock of the 3HAC057547-003 to support both emergency replacement and planned preventive maintenance programs. For facilities managing fleets of IRB 6700 robots, we offer supply planning consultation and reserved stock arrangements to ensure parts availability aligns with your maintenance schedule.
