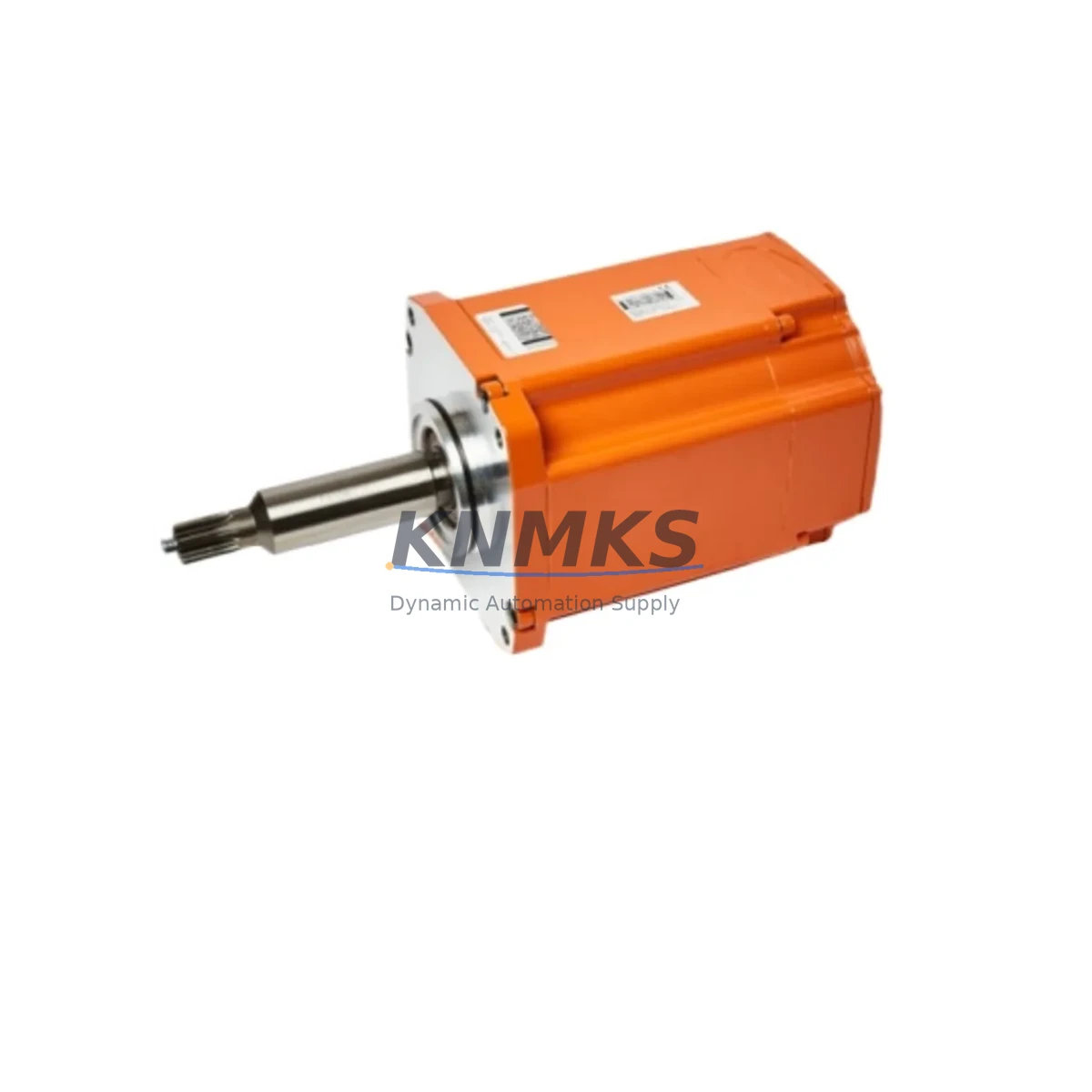

ABB 3HAC057546-003 Fail-Safe Servo Motor IRB 6700

Overview

ABB 3HAC057546-003 Fail-Safe Servo Motor IRB 6700: Fault Protection and Critical Industrial Reliability

The ABB 3HAC057546-003 is a precision servo motor engineered specifically for the ABB IRB 6700 series industrial robot platform — one of the most widely deployed heavy-payload robotic systems in continuous manufacturing, automotive body-in-white assembly, foundry operations, and high-cycle palletizing lines. Designed to ABB’s stringent safety and reliability standards, this motor delivers consistent torque output, low signal drift, and robust fault-tolerant performance across demanding industrial environments where unplanned downtime carries significant operational and safety consequences.

In safety-critical automation architectures, the servo motor is not merely a motion component — it is a core element of the control loop integrity. The 3HAC057546-003 is built to maintain precise positional feedback and torque control even under conditions of high electromagnetic interference (EMI), mechanical vibration, thermal cycling, and fluctuating supply voltage. Its integrated encoder system minimizes signal drift that could otherwise cause axis deviation, erratic motion, or safety interlock activation in coordinated multi-axis robot cells. When paired with the ABB IRC5 controller and its associated drive modules such as the DSQC661 or DSQC662 drive units, the motor forms a tightly integrated motion chain that supports both normal operation and safe-state transitions under fault conditions.

For facilities operating under IEC 62061 or ISO 13849 functional safety frameworks, maintaining the integrity of each axis motor is a prerequisite for achieving and sustaining the required Performance Level (PL) or Safety Integrity Level (SIL) of the robot cell. A degraded or counterfeit servo motor introduces unpredictable torque ripple, encoder noise, and thermal runaway risk — all of which can compromise the safe-stop functions (SS1, SS2, STO) managed by the robot’s safety-rated drive system. The 3HAC057546-003 is sourced as a genuine ABB spare part, pre-shipment tested for winding resistance, insulation integrity, and encoder signal quality, ensuring it meets the original equipment specification before it reaches your facility.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 3HAC057546-003 servo motor does not operate in isolation — its reliability is directly dependent on the health and configuration of the surrounding control cabinet ecosystem. In a standard ABB IRB 6700 installation, the motor interfaces with the IRC5 controller’s axis computer board (typically the DSQC668 or DSQC1000 main computer) through the drive module stack. Any degradation in the drive unit — such as capacitor aging in the DSQC374 or DSQC664 rectifier/inverter modules — will manifest as torque instability or encoder communication faults at the motor level, even if the motor itself is in perfect condition.

To protect the servo motor from upstream power quality issues, facilities should ensure that the cabinet’s 24VDC power supply unit (such as the ABB DSQC661 PSU) maintains stable output under load transients. Voltage sag or ripple on the logic supply rail can corrupt encoder data packets transmitted over the resolver bus, triggering false axis errors and unnecessary safety stops. Similarly, the cabinet’s EMC filter and surge protection components — including the line filter on the incoming 3-phase supply — must be maintained to prevent conducted interference from reaching the drive modules and, by extension, the motor’s feedback electronics.

For robot cells operating in welding bays or near large press machines, the grounding architecture of the control cabinet is critical. A poorly grounded cabinet allows common-mode noise to couple into the motor’s encoder shield, producing signal jitter that the IRC5 interprets as position error. Ensuring that the cabinet’s PE (protective earth) bonding, the robot base ground strap, and the motor cable shield terminations are all intact and low-impedance is a prerequisite for stable, fault-free operation of the 3HAC057546-003 in high-interference environments. Periodic inspection of the DSQC662 drive unit’s brake control output is also recommended, as brake release timing directly affects the motor’s load at startup and contributes to bearing wear if misadjusted.

Critical Industrial Safety Applications

The ABB 3HAC057546-003 servo motor supports mission-critical automation across a broad range of heavy-industry sectors where robot uptime is directly tied to production continuity and personnel safety.

In automotive body-in-white and stamping facilities, IRB 6700 robots equipped with this motor perform high-cycle spot welding, material handling, and press-tending operations. A motor failure in these cells typically halts an entire production line, with downtime costs measured in thousands of dollars per hour. Having a pre-tested, in-stock replacement available eliminates the multi-week lead time associated with OEM procurement channels and allows maintenance teams to execute planned or emergency replacements within a single shift.

In petrochemical and refinery environments, robots are increasingly deployed for inspection, valve actuation, and hazardous material handling in zones where human access is restricted. The servo motor’s sealed construction and thermal protection make it suitable for elevated ambient temperatures and airborne contaminant exposure. Functional safety requirements in these facilities demand that replacement components meet the original specification without deviation — a requirement that genuine ABB spare parts, pre-shipment tested, are uniquely positioned to satisfy.

In metal casting and foundry operations, IRB 6700 robots handle molten metal ladles, die-casting extraction, and grinding tasks in environments characterized by extreme heat, metal dust, and mechanical shock. The motor’s robust bearing specification and thermal sensor integration allow the IRC5 controller to monitor motor health in real time and trigger predictive maintenance alerts before a failure occurs, supporting the facility’s overall equipment effectiveness (OEE) targets.

In port and heavy logistics automation, IRB 6700 robots perform container handling and palletizing in outdoor or semi-outdoor environments subject to wide temperature swings, humidity, and salt-laden air. The motor’s sealed design and ABB’s corrosion-resistant coating specification ensure long service life in these conditions, reducing the frequency of unplanned replacements and supporting continuous 24/7 operation.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the ABB 3HAC057546-003?
The support terms confirmed by quotation cover manufacturing defects, winding failures, encoder malfunctions, and bearing defects under normal operating conditions consistent with ABB IRB 6700 specifications. Support requests are supported with replacement dispatch or credit, subject to fault verification. The confirmed support period begins from the date of shipment from our facility.

Q2: What pre-shipment testing is performed on each unit?
Every 3HAC057546-003 unit undergoes winding resistance measurement across all phases, insulation resistance testing (Megger test at 500VDC), encoder signal continuity and output verification, and visual inspection for mechanical damage. Test records are available upon request for quality-critical procurement processes.

Q3: Is this motor compatible with all IRB 6700 variants and the IRC5 controller?
The 3HAC057546-003 is designed for specific axis positions within the IRB 6700 series. Compatibility depends on the robot variant (payload rating and reach) and the specific axis being replaced. We recommend confirming the axis number and robot model against the ABB spare parts list or contacting our technical team at [email protected] before ordering to ensure correct fitment.

Q4: Can you support long-term or scheduled spare parts supply for ongoing maintenance programs?
Yes. We maintain buffer stock of the 3HAC057546-003 and related IRB 6700 drive and controller components to support planned maintenance intervals, annual shutdowns, and multi-site spare parts programs. Contact us to discuss consignment stock arrangements, scheduled delivery programs, or 12-to-36-month supply agreements tailored to your facility’s maintenance strategy.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3HAC057546-003
IRC5 Series

Product Family

Servo Systems

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Motion range

Servo drives, motors and cable sets

Common needs

Power, encoder and brake confirmation

Project support

Motion upgrade and spare-part supply

Inquiry Support

• Motor, drive and cable set coordination
• Power rating and encoder type checking
• Motion control replacement support

What to Send Us

• Brand and exact model number: ABB 3HAC057546-003
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
