ABB 3HAC055699-003 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3HAC055699-003 Maintenance-Proven Spare Part for Factory Uptime

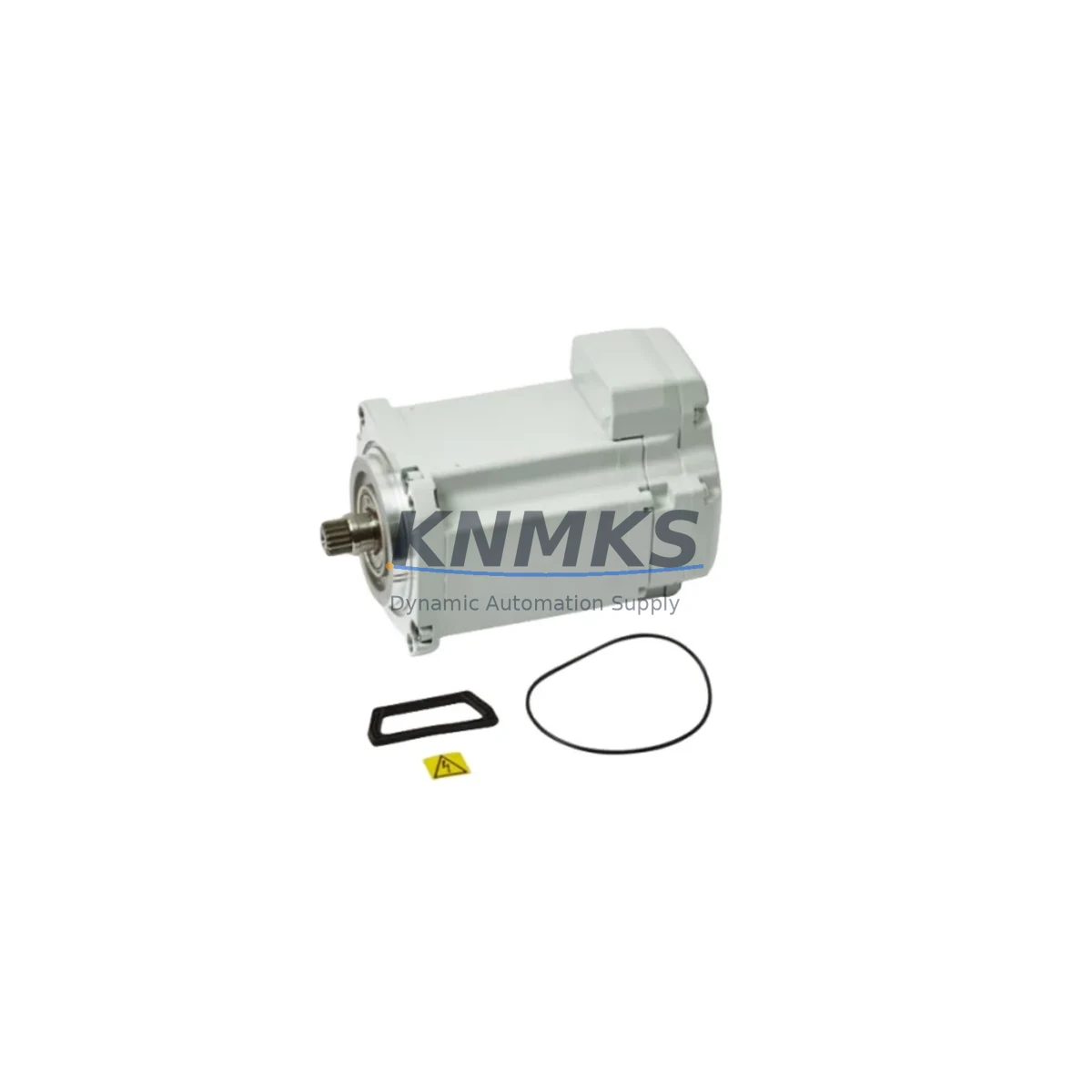

The ABB 3HAC055699-003 is an original servo motor unit engineered for the IRB6700 industrial robot series, covering Axis 1 through Axis 3 drive applications. Designed and manufactured by ABB Robotics in Sweden, this component is a critical element in maintaining continuous, high-precision operation on automated production lines. Whether you are managing a scheduled annual overhaul, responding to an unplanned axis fault, or building a proactive spare parts inventory, the 3HAC055699-003 delivers the OEM-grade reliability that maintenance engineers and procurement teams depend on.

In high-throughput manufacturing environments — automotive body shops, metal fabrication cells, and heavy-duty palletizing lines — robot downtime translates directly into lost production output. Stocking the 3HAC055699-003 as a ready-to-install spare eliminates the lead-time risk associated with sourcing replacement servo motors under emergency conditions. Each unit supplied by KNMKS is tested prior to dispatch and backed by a support terms confirmed by quotation, giving your maintenance team the confidence to execute fast, reliable replacements without extended commissioning delays.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 3HAC055699-003 servo motor unit is rarely an isolated task. A thorough site maintenance plan for the IRB6700 should treat this replacement as the trigger for a broader inspection of the surrounding electrical and mechanical ecosystem. When your maintenance team removes the axis motor, it is the ideal moment to inspect the ABB DSQC661 or DSQC679 drive units within the IRC5 cabinet, as servo drive faults and motor degradation are frequently co-occurring failure modes.

The motor resolver cable and encoder feedback harness — typically routed through the robot arm conduit — should be checked for insulation wear, connector corrosion, and secure seating at both the motor and the drive module. A degraded resolver signal is a common root cause of axis position errors that are misdiagnosed as motor failures. Simultaneously, inspect the IRC5 axis computer board (DSQC668) for fault logs that may indicate intermittent drive communication issues predating the motor failure.

Power supply integrity is equally critical. The ABB DSQC609 power supply unit within the IRC5 cabinet should be verified for stable 24 VDC output, as voltage fluctuations can accelerate servo motor winding stress. Fuse blocks and circuit breakers on the motor power bus should be tested and replaced if showing signs of thermal discoloration or contact wear.

For sites running multiple IRB6700 units, a standardized spare parts kit should include the 3HAC055699-003 alongside the 3HAC026253-001 gearbox unit for Axis 1, relevant SMB (Serial Measurement Board) assemblies, and a set of axis brake assemblies. This approach ensures that any single-axis fault can be resolved within a single maintenance shift, minimizing the risk of extended production stoppages. Procurement engineers should also consider maintaining a buffer stock of IRB6700 battery backup units for the SMB board, as battery failure can cause resolver data loss and trigger unnecessary motor replacement cycles.

Site Replacement Workflow

Before beginning the 3HAC055699-003 replacement, ensure the IRC5 controller is powered down and locked out per your site LOTO (Lockout/Tagout) procedure. Verify that the robot arm is mechanically supported or in a safe park position to prevent uncontrolled movement during axis motor removal.

Disconnect the motor power connector and resolver/encoder cable at the motor body. Document the cable routing and connector orientation with photographs before removal to simplify reinstallation. Remove the motor mounting bolts in the sequence specified in the ABB IRB6700 Product Manual (document 3HAC044266-001) to avoid housing stress.

Install the replacement 3HAC055699-003 unit, torque all fasteners to specification, and reconnect the resolver cable ensuring the connector locking tab is fully engaged. On IRC5 controller power-up, navigate to the FlexPendant and perform an axis calibration update using the fine calibration routine. Verify that the axis position matches the calibration mark on the robot base before returning the cell to production.

This workflow is compatible with both new-installation and like-for-like replacement scenarios, making the 3HAC055699-003 a drop-in solution for aging IRB6700 fleets without requiring controller software updates or parameter reconfiguration in most standard applications.

Spare Parts Support FAQ

Q1: Is the 3HAC055699-003 compatible with all IRB6700 variants?
The 3HAC055699-003 is designed for the IRB6700 series covering Axis 1–3 motor positions. Compatibility spans the major payload variants (150 kg to 300 kg). Always cross-reference the robot serial number and axis configuration against the ABB spare parts catalog or contact KNMKS with your robot nameplate data for confirmation before ordering.

Q2: What testing is performed before shipment?
Every 3HAC055699-003 unit dispatched by KNMKS undergoes functional electrical verification including winding resistance checks, insulation resistance testing, and resolver signal output validation. A test report is available upon request. Units are packed in anti-static, shock-protected packaging suitable for international air and sea freight.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions as defined by ABB’s IRB6700 installation and maintenance guidelines. Support requests are supported by KNMKS with replacement dispatch or credit, subject to fault verification. The confirmed support period begins from the confirmed delivery date.

Q4: Can KNMKS support long-term or repeat supply of the 3HAC055699-003?
Yes. KNMKS maintains stock buffers for high-demand IRB6700 spare parts and can support blanket purchase orders, scheduled delivery programs, and emergency same-week dispatch for qualified accounts. Contact our sales team to discuss volume pricing, consignment stock arrangements, or multi-site supply agreements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3HAC055699-003
IRC5 Series

Product Family

Servo Systems

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Motion range

Servo drives, motors and cable sets

Common needs

Power, encoder and brake confirmation

Project support

Motion upgrade and spare-part supply

Inquiry Support

• Motor, drive and cable set coordination
• Power rating and encoder type checking
• Motion control replacement support

What to Send Us

• Brand and exact model number: ABB 3HAC055699-003
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
