ABB 3HAC055450-003 Fail-Safe AC Servo Motor

Overview

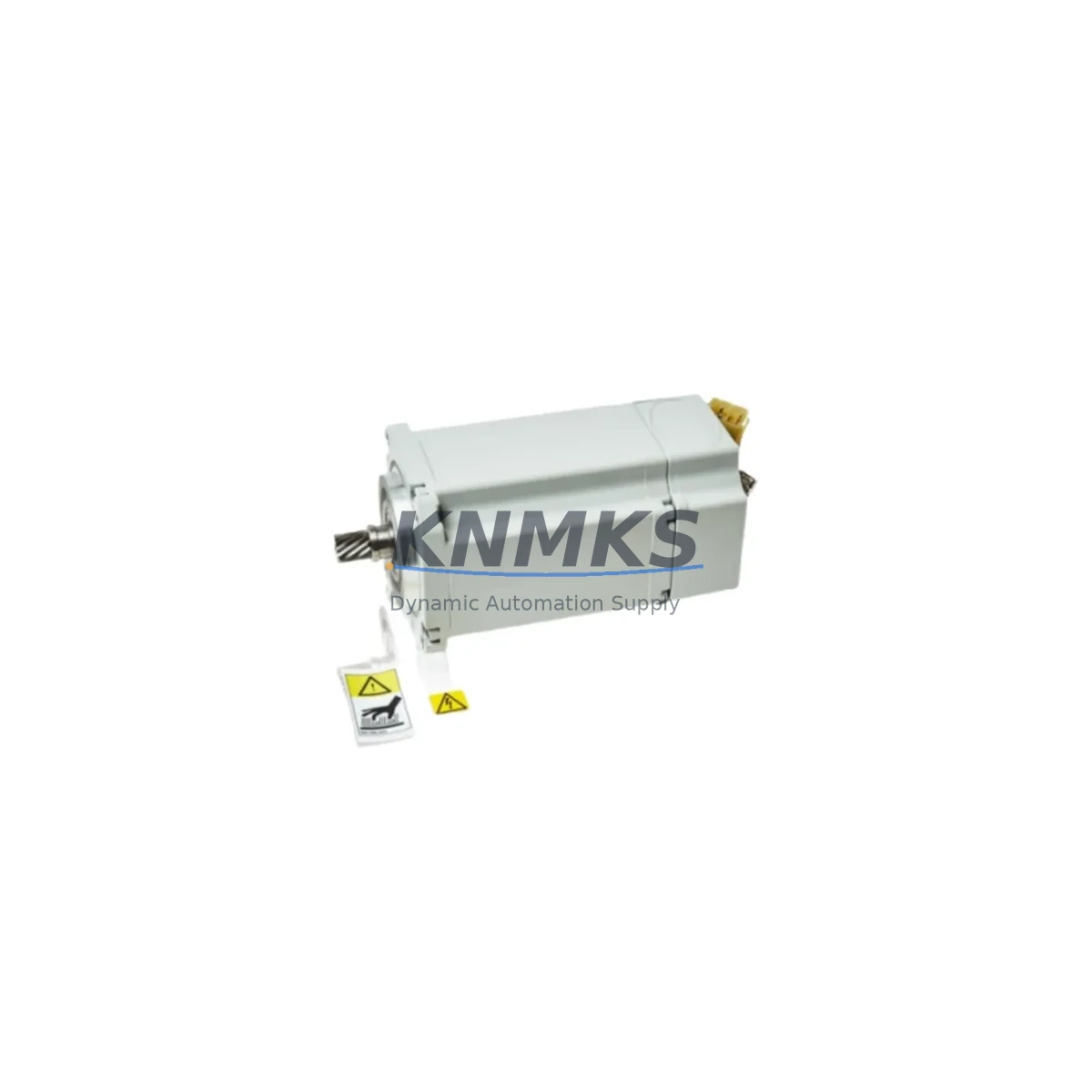

ABB 3HAC055450-003 Fail-Safe AC Servo Motor: Fault Protection for Critical Industrial Control Reliability

The ABB 3HAC055450-003 is a precision-engineered AC servo motor designed for deployment in ABB IRB 6700, IRB 6640, and IRB 6600 industrial robot platforms. In high-stakes manufacturing environments — including petrochemical processing, power generation, metallurgical operations, and continuous-process production lines — servo motor failure is not merely a maintenance event. It is a safety-critical incident that can trigger unplanned shutdowns, compromise interlock integrity, and expose personnel to hazardous conditions. The 3HAC055450-003 is built to prevent exactly these outcomes.

Engineered to ABB’s exacting standards for heavy-payload robotic axes, this servo motor delivers consistent torque output, precise encoder feedback, and robust thermal management across demanding duty cycles. Its design addresses the core failure modes that plague servo systems in harsh industrial environments: signal drift under electromagnetic interference, insulation breakdown from thermal cycling, bearing fatigue under continuous high-load operation, and encoder contamination in dusty or humid conditions. Each unit shipped from our inventory undergoes full functional testing — including no-load run-in, encoder signal verification, and insulation resistance measurement — before dispatch.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable servo motor performance in critical industrial applications depends not only on the motor itself, but on the integrity of the entire control cabinet ecosystem. When deploying the ABB 3HAC055450-003 as a replacement or upgrade component, field engineers should evaluate the condition and compatibility of surrounding cabinet components to ensure system-level fault protection.

The ABB DSQC1000 main computer unit governs motion coordination and safety interlock logic for the IRB 6700 platform. If the servo motor is being replaced following a fault event, the DSQC1000’s error logs should be reviewed to confirm whether the fault originated at the motor, the drive, or the controller level — preventing repeat failures after reinstallation. Similarly, the ABB DSQC688 drive module, which manages power delivery to the servo axes, should be inspected for capacitor degradation or IGBT stress if the motor failure was associated with overcurrent or thermal events.

The ABB SMB (Serial Measurement Board) 3HAC14550-2 is a critical companion component: it stores axis calibration data and encoder offset values. During motor replacement, the SMB must be either retained from the original installation or recalibrated using ABB’s FlexPendant calibration routines. Failure to correctly pair the SMB with the replacement motor is one of the most common causes of post-replacement axis drift and safety stop faults.

For cabinet-level power quality, the ABB PSU 3HAC025338-001 (24VDC system power supply) should be verified for output stability, particularly in environments with frequent welding operations or heavy motor starts on shared bus infrastructure. Voltage sag during motor startup can trigger safety-rated emergency stops and corrupt encoder reference positions. In high-EMI environments such as automotive body shops or metal fabrication cells, installing a dedicated line filter module upstream of the servo drive input is strongly recommended to suppress conducted interference that can cause encoder signal errors and spurious fault codes.

Finally, the ABB FlexPendant TPU3 (3HAC028357-001) or equivalent teach pendant should be used during post-replacement commissioning to execute fine motion tests, verify axis limits, and confirm that all safety zones and speed restrictions are correctly enforced before returning the robot to production. This step is non-negotiable in safety-rated installations operating under ISO 10218 or IEC 62061 compliance frameworks.

Critical Industrial Safety Applications

The ABB 3HAC055450-003 servo motor is deployed across a wide range of safety-critical industrial environments where control interruption carries significant operational and safety consequences.

In petrochemical and refinery automation, IRB 6700 robots equipped with this servo motor handle drum handling, valve actuation assistance, and inspection tasks in Zone 2 classified areas. The motor’s sealed construction and thermal stability are essential in environments where ambient temperatures fluctuate significantly and hydrocarbon vapors demand strict ignition source control.

In power generation and electrical utility applications, robotic systems using this servo motor perform transformer assembly, busbar handling, and high-voltage switchgear inspection. The EMI resistance of the 3HAC055450-003 encoder interface is particularly valuable in substations where strong magnetic fields from high-current conductors can corrupt position feedback signals in lesser-specified motors.

In metallurgical and foundry operations — including steel casting, aluminum smelting, and hot forging — the motor’s IP65 protection and thermal management capability allow continuous operation in environments with radiant heat, metal particulate, and steam. Unplanned servo failures in these environments can result in molten metal spills or press cycle interruptions with serious safety implications.

In port and maritime logistics, IRB 6700 platforms handle container lashing, heavy cargo manipulation, and ship-to-shore transfer operations. The 3HAC055450-003’s high torque density and fault-tolerant encoder design ensure that load-handling operations are not interrupted by servo faults during critical lift sequences.

In continuous process manufacturing — including paper, glass, and food processing — where production lines operate 24/7 and planned maintenance windows are measured in hours per year, the availability of a pre-tested, in-stock replacement motor with a support terms confirmed by quotation directly supports maintenance planning and spare parts lifecycle management strategies.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the ABB 3HAC055450-003?
The support terms confirmed by quotation cover manufacturing defects, encoder failure, winding insulation breakdown, and bearing failure under normal operating conditions. It does not cover damage resulting from incorrect installation, voltage transients beyond rated limits, or mechanical impact. Support requests are supported with replacement dispatch within 5 business days of fault confirmation.

Q2: How is each unit tested before shipment?
Every 3HAC055450-003 unit undergoes a pre-shipment test protocol that includes: no-load motor run-in at rated speed, absolute encoder signal verification across full rotation range, insulation resistance measurement (minimum 100MΩ at 500VDC), and visual inspection of connector pins, shaft seal, and mounting flange. A test report is available upon request.

Q3: Is this motor compatible with both IRB 6700 and IRB 6640 platforms?
The 3HAC055450-003 is the current production part number for IRB 6700 axis applications. It is also cross-referenced against 3HAC17484-9/02, which was used in IRB 6600 and IRB 6640 platforms. Axis assignment (Axis 1, 2, or 3) must be confirmed against the robot’s mechanical documentation before installation, as torque and gear ratio requirements differ by axis position. Contact our technical team with your robot serial number for axis-specific confirmation.

Q4: What is your long-term supply commitment for this part number?
We maintain buffer stock of the 3HAC055450-003 to support customers with multi-year maintenance contracts and spare parts programs. For customers requiring guaranteed availability over a 12–36 month horizon, we offer reserved stock agreements with fixed pricing. This is particularly relevant for operators running fleets of IRB 6700 robots where a single servo failure can halt an entire production cell.
