ABB 3HAC054556-001 Migration-Ready Axis Drive for IRB460

Overview

ABB 3HAC054556-001 Migration-Ready Axis Drive for IRB460: Legacy System Retrofit & Upgrade

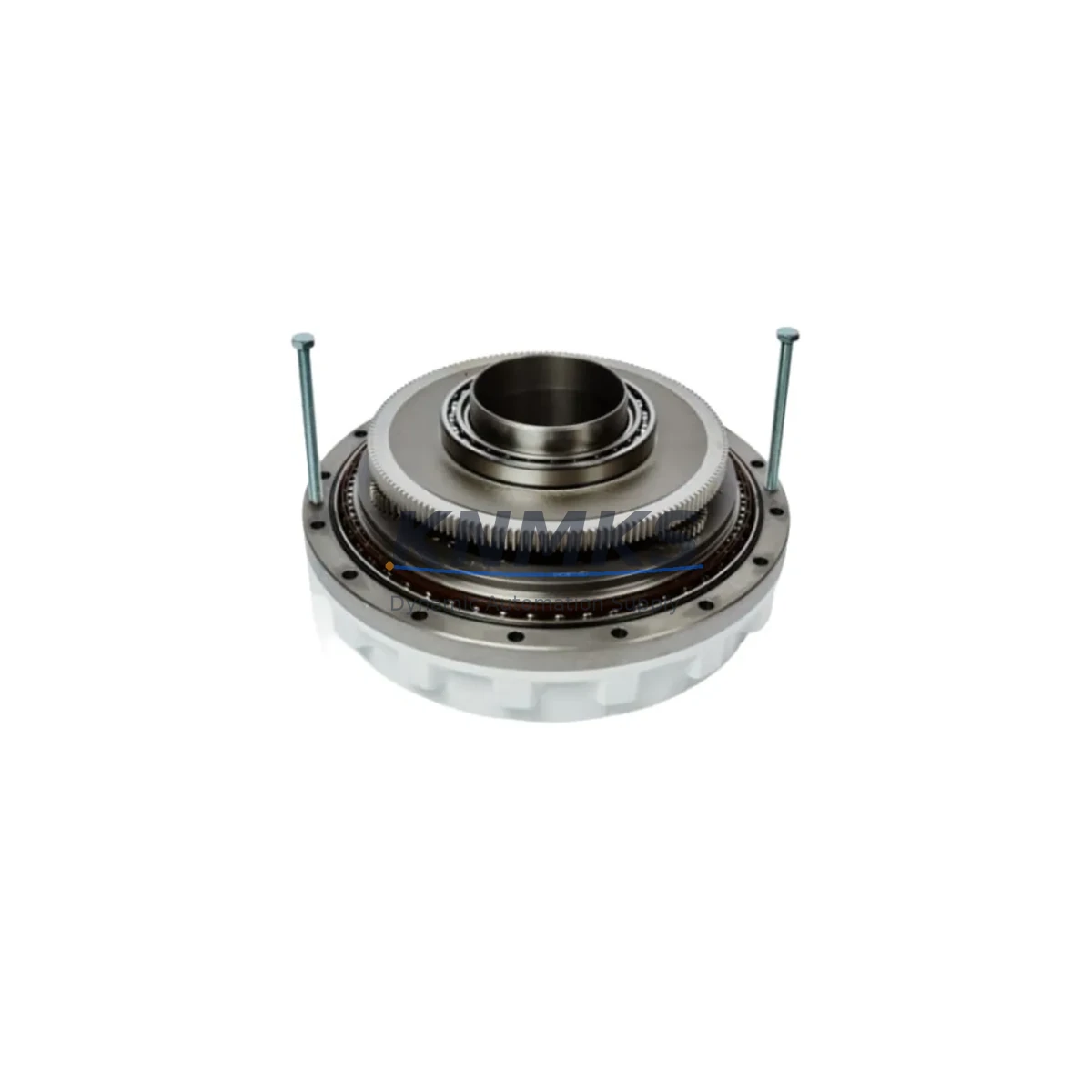

The ABB 3HAC054556-001 is a migration-ready axis drive unit engineered for the IRB460 palletizing robot platform. As a direct replacement for the discontinued 3HAC026114-007 and 3HAC026114-006 drive modules, this unit addresses one of the most critical pain points in legacy ABB robot maintenance: sourcing a verified, drop-in compatible axis drive that eliminates extended downtime and costly system re-engineering.

Industrial facilities running IRB460 lines on aging IRC5 controller cabinets frequently encounter obsolescence risk when original axis drive units fail or degrade. The 3HAC054556-001 is stocked and pre-tested to restore full axis motion control without requiring firmware re-architecture or mechanical cabinet modification. Each unit ships with a support terms confirmed by quotation and passes outgoing functional verification before dispatch.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing an axis drive in an active IRB460 palletizing cell requires careful pre-planning to protect program logic and minimize production impact. Before removing the legacy 3HAC026114-007 or 3HAC026114-006, engineers should back up the complete robot system configuration using RobotStudio, capturing all axis parameters, tool data, work object definitions, and RAPID program modules.

The IRC5 controller cabinet typically houses multiple drive units in adjacent slots. When replacing the axis drive, it is advisable to inspect neighboring components including the ABB DSQC661 main computer board and the DSQC662 I/O unit for signs of wear, since correlated failures are common in aging cabinets. The 3HAC054556-001 slots directly into the existing drive bay without requiring backplane modification, preserving the cabinet’s internal wiring harness and reducing re-commissioning scope.

Power supply capacity is a critical verification step. The IRC5 cabinet’s DSQC609 power supply unit must be confirmed to deliver stable voltage within specification before the new drive is energized. Voltage fluctuations during initial power-on can trigger drive fault codes and delay commissioning. Similarly, the SMB (Serial Measurement Board) — typically the 3HAC031670-001 — should be inspected to ensure resolver signal integrity is maintained across all axes after the swap.

For facilities integrating the IRB460 into a broader production line managed by a PLC or SCADA system, the communication link between the IRC5 controller and the upstream control system — whether via DeviceNet, PROFIBUS, or EtherNet/IP — must be verified post-installation. The DSQC688 fieldbus adapter or equivalent communication module should remain undisturbed during the drive replacement to avoid disrupting the I/O handshake with the line controller.

If the facility operates an HMI panel linked to the IRC5 for operator-level status monitoring, screen layouts and alarm mappings tied to axis drive status signals should be reviewed after replacement to confirm that fault codes and status bits are correctly interpreted by the HMI logic. No HMI reprogramming is typically required for a like-for-like drive swap, but a functional test of all operator screens is recommended before returning the cell to production.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing an axis drive in a running palletizing system. A structured replacement approach for the 3HAC054556-001 begins with a controlled shutdown sequence: park the IRB460 arm in a safe home position, disable servo power via the IRC5 panel, and isolate the cabinet before opening the drive bay.

The original RAPID program and system parameters should be exported and stored on an external device before any hardware is disturbed. This ensures that if the new drive triggers an unexpected axis configuration mismatch, the system can be restored to its last known good state without re-teaching waypoints or reconstructing tool data from scratch.

After installing the 3HAC054556-001, the IRC5 controller will typically perform an automatic drive recognition sequence on power-up. Engineers should monitor the teach pendant for any axis calibration prompts. Fine-tuning of axis 1–4 parameters may be required depending on the mechanical state of the robot and the calibration marks on the arm. In most cases, a full production cycle test — running the palletizing program at reduced speed before returning to full throughput — is sufficient to validate the replacement before signing off the work order.

For facilities with strict OEE targets, pre-staging the replacement unit and preparing all tools, torque specifications, and documentation in advance can reduce the physical swap time to under two hours. Combined with a pre-tested, outgoing-verified unit from stock, this approach keeps total migration downtime well within a planned maintenance window.

Retrofit Support FAQ

Q1: Is the 3HAC054556-001 a direct replacement for 3HAC026114-007 and 3HAC026114-006?
Yes. The 3HAC054556-001 is the current production replacement for both the 3HAC026114-007 and 3HAC026114-006 axis drive units. It shares the same mechanical form factor, connector pinout, and IRC5 backplane interface, making it a direct swap without cabinet modification.

Q2: What commissioning steps are required after installation?
After installing the unit and powering up the IRC5 controller, verify that the drive is recognized on the teach pendant. Perform an axis calibration check using the calibration marks on the IRB460 arm. Run the RAPID program at reduced speed to confirm all motion paths and I/O signals are functioning correctly before resuming full production.

Q3: Is the unit tested before shipment, and what support terms is provided?
Yes. Every 3HAC054556-001 unit undergoes outgoing functional verification before dispatch. All units are covered by a support terms confirmed by quotation from the date of shipment. In the event of a support terms claim, replacement or repair is arranged with priority handling to minimize your downtime.

Q4: Do you maintain stock for immediate shipment?
Yes. The 3HAC054556-001 is held in inventory for immediate dispatch. Global shipping is available with standard and expedited options. Contact our team to confirm current stock levels and lead times for your region.
