ABB 3HAC049653-001 Maintenance-Proven Spare IRB 1200

Overview

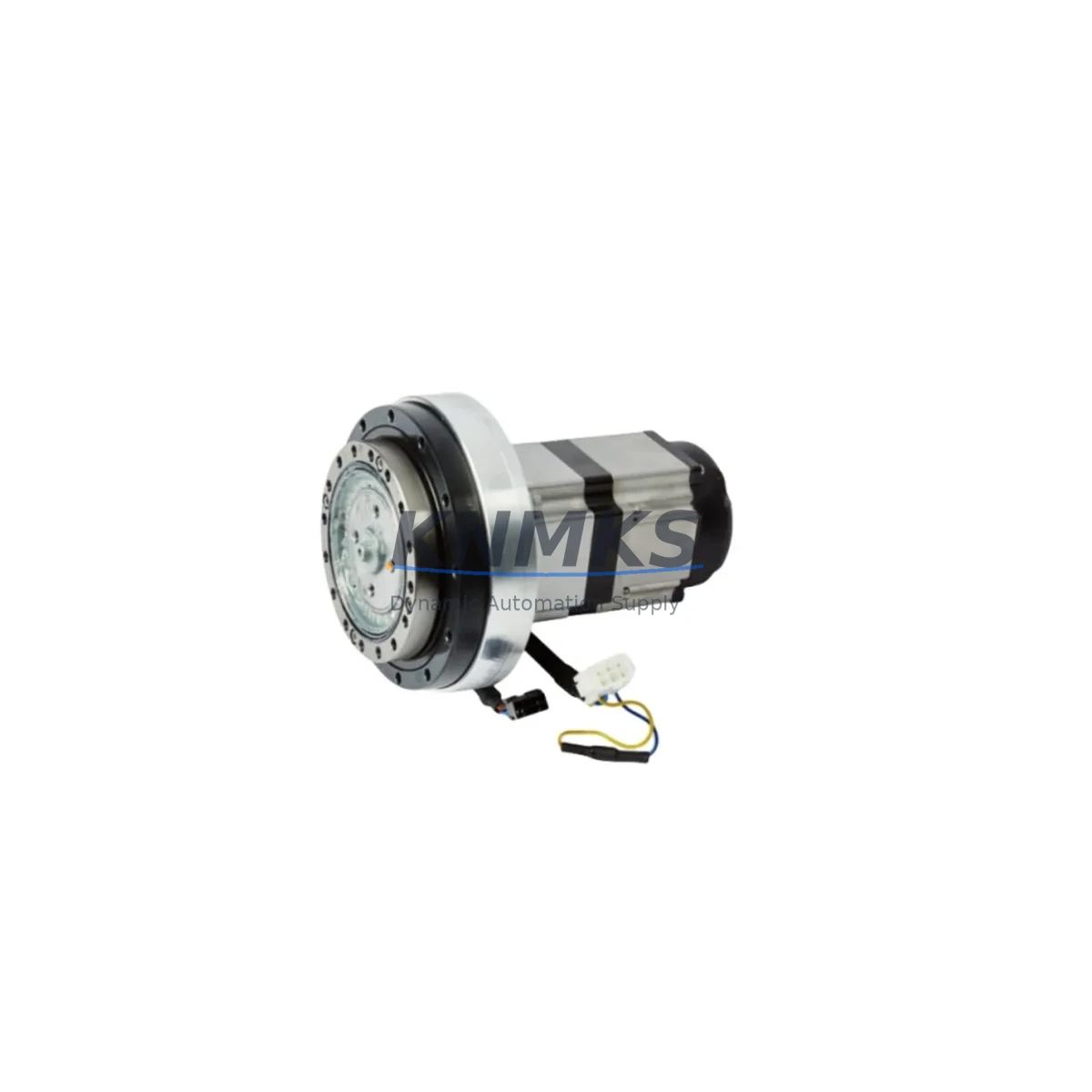

ABB 3HAC049653-001 Maintenance-Proven Spare IRB 1200: Drive Train Unit for Factory Uptime

The ABB 3HAC049653-001 is an original Drive Train Unit designed for the ABB IRB 1200 compact industrial robot series. As a precision-engineered motion component, it governs axis torque transmission and positional accuracy across the robot’s working envelope. For maintenance engineers managing ABB robot cells, keeping a verified 3HAC049653-001 in the spare parts cabinet is a direct investment in production continuity — eliminating multi-day lead times when a drive train failure triggers an unplanned shutdown.

KNMKS supplies this unit as an original ABB spare, pre-shipment tested, with a support terms confirmed by quotation and documented traceability. Each unit is inspected against ABB’s mechanical and dimensional specifications before dispatch, ensuring drop-in compatibility with IRB 1200/0.9 and IRB 1200/1.4 variants without field modification.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A drive train failure on an IRB 1200 rarely occurs in isolation. When replacing the 3HAC049653-001, a structured inspection of the surrounding electrical and mechanical subsystems significantly reduces the risk of repeat downtime within the same maintenance window.

Begin with the IRC5 Compact or OmniCore C30 controller — verify drive module status codes and check for axis-specific fault logs that may indicate whether the drive train failure was mechanical or electrically induced. Inspect the axis computer board (DSQC 668 or equivalent) for thermal stress or connector corrosion, as intermittent axis faults often originate at the board-to-drive interface rather than the mechanical unit itself.

Review the servo drive power supply feeding the affected axis. Voltage ripple or under-voltage events during high-load cycles can accelerate drive train wear beyond the expected service interval. A calibrated power quality check at this stage prevents premature failure of the replacement unit.

Inspect all motor feedback cables and resolver connectors routed along the robot arm. Chafed insulation or loose Harting connectors introduce position feedback errors that the controller may misinterpret as drive train faults. Replacing the 3HAC049653-001 without addressing cable integrity risks a repeat fault within weeks.

For cells running continuous multi-shift production, also audit the SMB (Serial Measurement Board) and the axis brake release unit. These components interact directly with drive train operation and are frequently overlooked during reactive maintenance. If the robot has accumulated significant runtime hours, consider scheduling a concurrent inspection of the wrist unit (3HAC026020-001 series) and lower arm assembly to consolidate downtime into a single planned window rather than multiple reactive interventions.

Finally, confirm that the teach pendant (FlexPendant) and connected I/O modules are logging correctly post-replacement. A full axis calibration and mastering procedure should be completed before returning the robot to production, with results documented in the maintenance log for support terms and audit purposes.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the IRC5 or OmniCore event log to confirm the fault is localized to the drive train axis. Cross-reference with ABB’s diagnostic codes to rule out controller-side or cable-side root causes before ordering the replacement unit.

Step 2 — Safe Shutdown: Execute a controlled program stop, engage axis brakes, and isolate the controller cabinet power per ABB’s lockout/tagout procedure. Confirm zero-energy state before opening the robot arm.

Step 3 — Unit Removal: Follow ABB’s service manual disassembly sequence for the IRB 1200 drive train. Document the existing cable routing and connector positions with photographs before disconnecting. Retain all fastener hardware for reuse unless visually damaged.

Step 4 — Compatibility Verification: Confirm the replacement 3HAC049653-001 part number and revision against the robot’s serial plate and ABB’s spare parts catalog. Cross-reference with alternate part numbers 3HAC061403-001 and 3HAC044514-001 if applicable to your robot’s production batch.

Step 5 — Installation and Mastering: Install the replacement unit per ABB torque specifications. Reconnect all feedback and power connectors. Perform axis mastering using the FlexPendant calibration routine. Run a slow-speed test cycle before returning to full production speed.

Step 6 — Documentation: Record the replacement in the robot’s maintenance log, including part number, serial number, installation date, and technician ID. Retain the KNMKS shipment documentation for support terms reference.

Spare Parts Support FAQ

Q: Is the 3HAC049653-001 compatible with both IRB 1200/0.9 and IRB 1200/1.4 reach variants?
A: Yes. The 3HAC049653-001 Drive Train Unit is designed for the IRB 1200 platform and is compatible across the standard reach variants. Always verify against your robot’s serial number and ABB’s spare parts catalog for your specific production batch before installation.

Q: What is the support terms coverage and what does it include?
A: KNMKS provides a support terms confirmed by quotation from the date of shipment. Coverage includes manufacturing defects and functional failures under normal operating conditions. Each unit is pre-shipment tested and ships with inspection documentation. Contact [email protected] for support requests.

Q: How quickly can the unit be shipped, and what shipping options are available?
A: Units availability confirmed by RFQ ship within 1–3 business days via DHL, FedEx, or UPS express. For urgent breakdown situations, contact KNMKS directly at +86 18359268345 to confirm stock availability and arrange priority dispatch.

Q: Can KNMKS support long-term spare parts supply for ABB IRB 1200 fleets?
A: Yes. KNMKS maintains multi-region stock of ABB IRB 1200 series components and can support annual blanket orders, consignment stock arrangements, and spare parts kitting for planned maintenance programs. Reach out to discuss a tailored supply agreement for your facility.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

IRB12003HAC049653-001 3HAC061403-001 IRB12003HAC044514-001 IRB12003HAC061403-001
IRC5 Series

Product Family

Variable Frequency Drives

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Drive range

AC drives, VFDs and accessories

Common needs

Voltage, kW/HP and load type

Project support

Motor control, energy saving and spares

Inquiry Support

• Input/output voltage and kW/HP confirmation
• Energy-saving motor control inquiry
• Accessory and spare-unit support

What to Send Us

• Brand and exact model number: ABB IRB12003HAC049653-001 3HAC061403-001 IRB12003HAC044514-001 IRB12003HAC061403-001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
