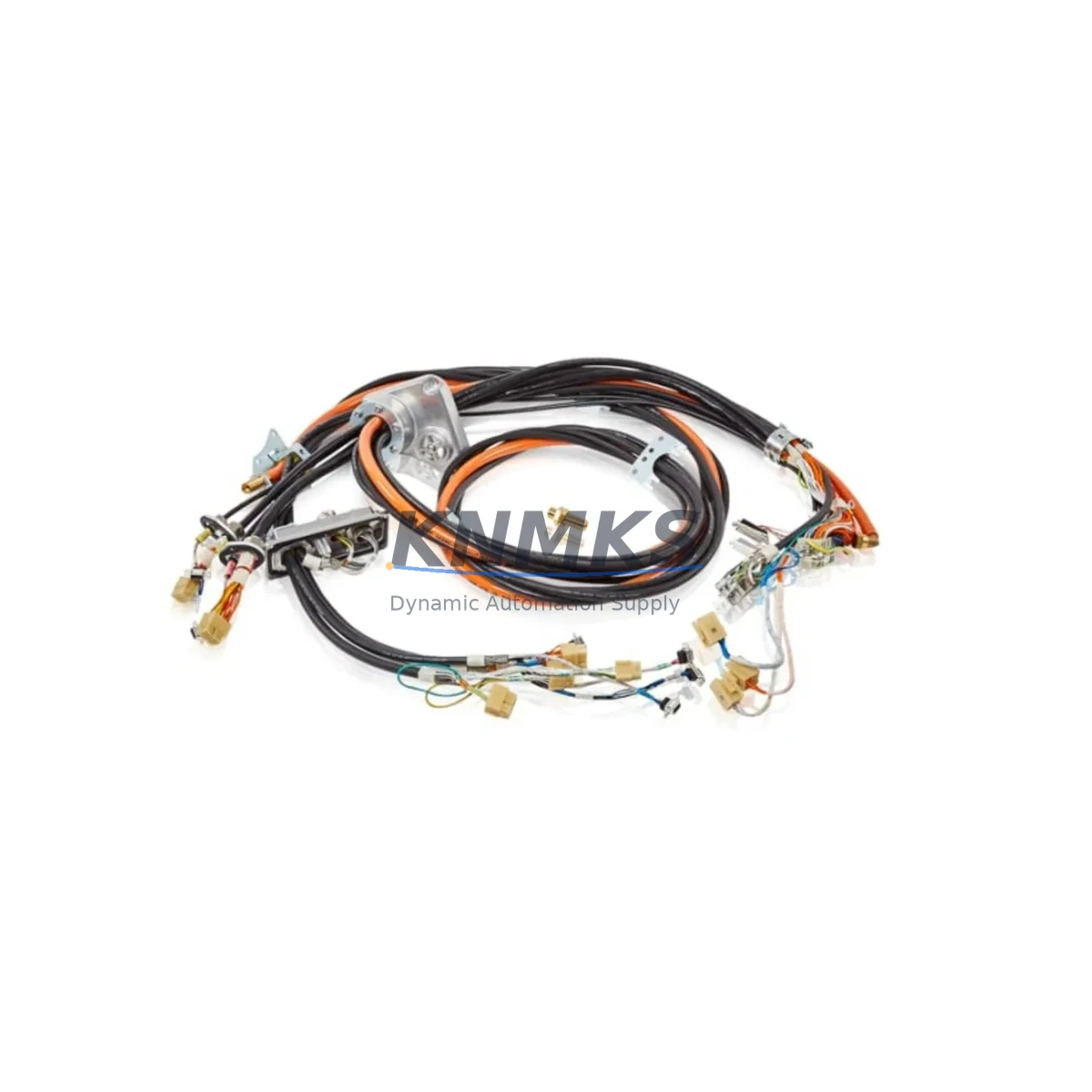

The ABB 3HAC043963-001 is an original cable harness assembly engineered for the IRB 4600 and IRB 1600 robot series — two of ABB’s most widely deployed six-axis industrial robots in automotive, electronics, and general manufacturing environments. As a maintenance-proven spare part, the 3HAC043963-001 plays a critical role in sustaining robot uptime, protecting signal integrity between the controller and manipulator, and ensuring safe, uninterrupted production cycles. Whether you are managing a planned annual overhaul, responding to an unscheduled fault, or building a strategic spare parts buffer, this cable harness is a foundational component in any ABB robot maintenance program.

Sourced from verified ABB supply channels and tested prior to shipment, each unit is backed by a support terms confirmed by quotation covering manufacturing defects and functional performance. Global logistics support ensures delivery details confirmed by RFQ to maintenance teams across Asia-Pacific, Europe, and North America — minimizing the window between fault detection and full system restoration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a cable harness fault is identified on an IRB 4600 or IRB 1600 robot — whether through a teach pendant alarm, irregular axis behavior, or a scheduled inspection — the replacement workflow extends beyond the harness itself. Experienced maintenance engineers know that cable degradation rarely occurs in isolation. A thorough site assessment should include inspection of the IRC5 controller power supply module (e.g., DSQC 661 or equivalent) to confirm stable DC bus voltage before reconnecting a new harness. Fluctuating supply voltage is a leading cause of premature cable insulation breakdown.

The I/O module connected to the robot’s wrist and base — typically an ABB DSQC 652 or DSQC 1030 — should be verified for correct signal mapping after harness replacement, as connector re-seating can occasionally shift pin assignments in aging backplane connectors. Similarly, the SMB (Serial Measurement Board), which handles resolver feedback from each robot axis, must be checked for communication continuity; a degraded harness segment can corrupt axis position data and trigger safety stops even after the primary fault is cleared.

For robots integrated into a production line via DeviceNet or PROFIBUS communication modules, network integrity should be re-validated post-replacement using the IRC5 FlexPendant diagnostic tools. In cells where the robot interfaces with a safety relay module or safety PLC (such as an ABB JSHD4 or equivalent), the E-stop and safeguard input circuits must be re-tested to confirm the harness replacement has not introduced any latent wiring fault in the safety chain.

Maintenance planners building a 12-month spare parts inventory for IRB 4600 installations should also consider stocking axis computer boards, brake release units, and teach pendant cables alongside the 3HAC043963-001 harness. These components share similar wear profiles in high-cycle environments and are frequently replaced together during major overhauls, reducing total downtime per maintenance event.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the IRC5 FlexPendant or RobotStudio to identify the specific fault code. Cable harness faults typically appear as axis communication errors, resolver signal loss, or I/O timeout alarms. Document the fault log before powering down.

Step 2 — Safe Shutdown: Execute a controlled stop, engage the mechanical brake on all axes, and isolate the controller from mains power. Follow ABB’s lockout/tagout procedure for the IRC5 cabinet before opening any cable access panels.

Step 3 — Harness Removal: Disconnect the 3HAC043963-001 harness at both the controller-side and manipulator-side connectors. Inspect connector housings, locking clips, and cable routing channels for secondary damage — cracked conduit or corroded connector pins may indicate a broader wiring issue requiring additional remediation.

Step 4 — New Harness Installation: Route the replacement 3HAC043963-001 through the original cable management path. Secure all cable ties and strain relief clamps to OEM torque specifications. Reconnect all connectors and verify positive locking engagement on each plug.

Step 5 — System Verification: Power up the IRC5 controller and perform a full axis calibration check. Run the robot through its programmed path at reduced speed (10–25%) before returning to full production speed. Confirm no residual fault codes are present and log the replacement in the maintenance record.

This workflow is compatible with both IRC5 and OmniCore controller platforms and supports a seamless transition from legacy harness assemblies to current OEM specifications without requiring software reconfiguration.

Spare Parts Support FAQ

Q1: Is the 3HAC043963-001 compatible with both the IRB 4600 and IRB 1600 robot series?
Yes. The 3HAC043963-001 cable harness is designed for use across the IRB 4600 and IRB 1600 series. However, compatibility can vary by robot variant and manufacturing date. Please provide your robot’s serial number and controller type when placing an order so our technical team can confirm the correct harness revision for your specific unit.

Q2: What pre-shipment testing is performed on each unit?
Every 3HAC043963-001 unit undergoes continuity testing across all signal and power conductors, insulation resistance measurement, and physical connector seating verification before dispatch. A test report is available upon request. All units are shipped in OEM-grade protective packaging to prevent transit damage.

Q3: What does the support terms confirmed by quotation cover, and how is a claim processed?
The support terms confirmed by quotation cover manufacturing defects, connector failures, and functional performance under normal operating conditions. It does not cover damage resulting from incorrect installation, voltage surges, or physical mishandling. To initiate a support terms claim, contact [email protected] with your order number, fault description, and photographic evidence. Replacement units are dispatched within 3–5 business days of claim approval.

Q4: Can KNMKS support long-term supply agreements for this part?
Yes. KNMKS maintains buffer stock of high-demand ABB robot spare parts including the 3HAC043963-001 to support planned maintenance schedules and emergency procurement. Long-term supply agreements with fixed pricing and priority allocation are available for OEM integrators, system integrators, and end-user maintenance teams managing multi-robot installations. Contact our team to discuss volume pricing and lead time commitments.
