ABB 3HAC043569-001 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3HAC043569-001 Maintenance-Proven Spare Part for Factory Uptime

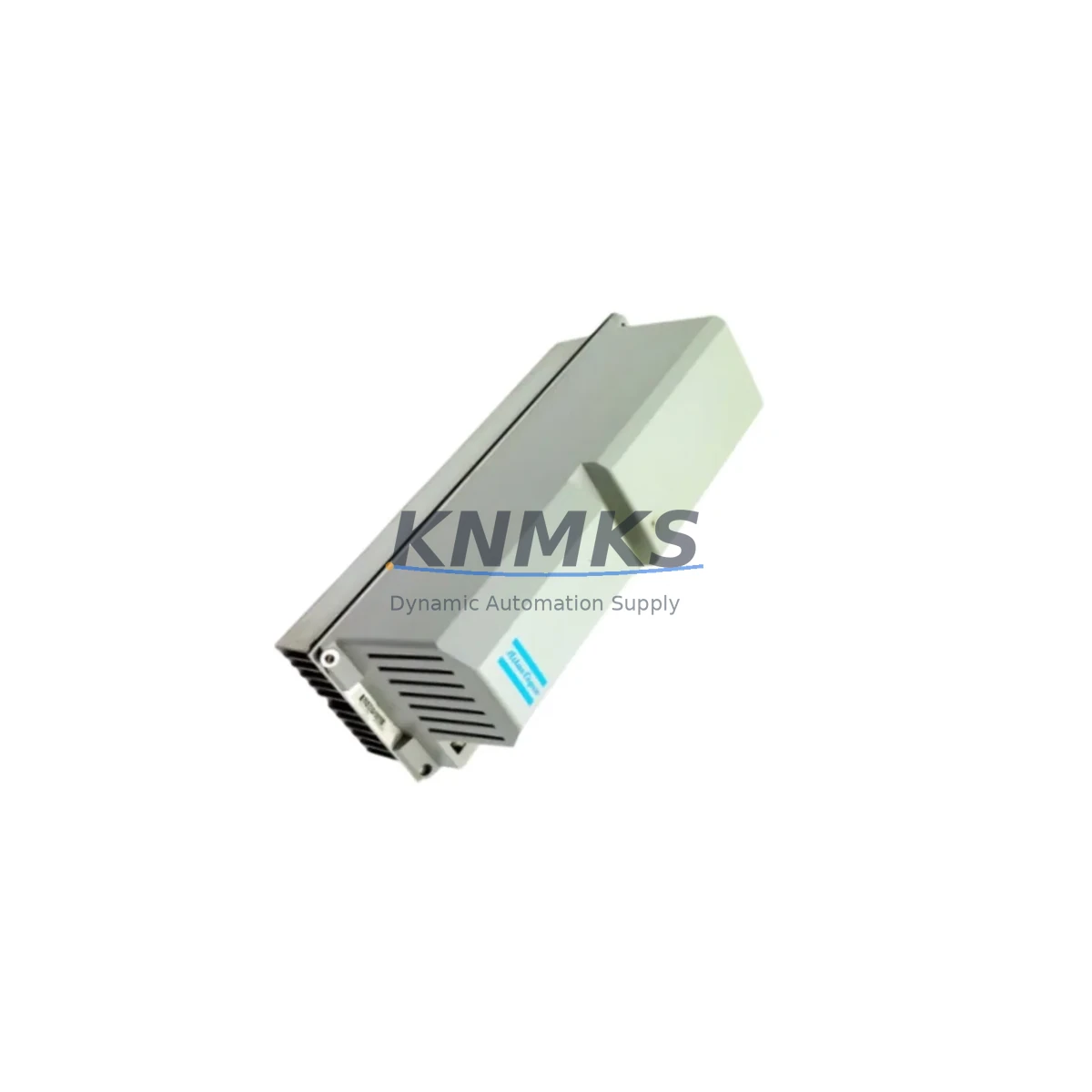

The ABB 3HAC043569-001 is an original axis motor unit designed for the IRB 4600 industrial robot series — one of ABB’s most widely deployed six-axis articulated robots in automotive, general manufacturing, and precision assembly environments. As a maintenance-proven spare part, the 3HAC043569-001 supports rapid axis restoration, minimizes unplanned downtime, and ensures your IRB 4600 robot cell continues to operate within OEM-specified performance tolerances. Whether you are managing a scheduled annual overhaul, responding to an emergency axis fault, or building a proactive spare parts buffer, this unit is a critical line item in any IRB 4600 maintenance strategy.

Sourced from verified supply channels and subject to pre-shipment functional testing, each 3HAC043569-001 unit shipped by KNMKS is backed by a support terms confirmed by quotation. Our inventory is maintained to support both single-unit emergency orders and bulk procurement for multi-robot installations. Long-term supply continuity is a core commitment — ensuring your maintenance team can source this part reliably across the full operational lifecycle of your IRB 4600 fleet.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 3HAC043569-001 axis motor is rarely an isolated task. Experienced maintenance engineers know that an axis motor fault on the IRB 4600 is often accompanied by — or can accelerate wear in — adjacent components within the same drive circuit. A thorough site inspection should include the following areas:

Drive and Power Supply: Verify the ABB DSQC661 or DSQC662 drive unit powering the affected axis. A failing motor can cause drive overcurrent faults; inspect the drive module for error logs and thermal stress before reinstalling a new motor. Check the IRC5 controller’s power distribution module (DSQC609) for stable 24VDC auxiliary supply to the axis circuit.

Encoder and Feedback Wiring: The resolver or encoder cable harness connected to the 3HAC043569-001 should be inspected for insulation damage, connector corrosion, and continuity. Intermittent encoder signal loss is a common root cause of axis position errors that can be misdiagnosed as motor failure. Replacement encoder cables for the IRB 4600 series should be kept in your spare parts cabinet alongside the motor unit.

Motor Brake Circuit: The IRB 4600 axis motor incorporates an integrated holding brake. After motor replacement, verify brake release voltage (typically 24VDC) and confirm brake engagement/disengagement response via the FlexPendant. A faulty brake relay on the DSQC611 safety board can prevent proper brake operation even after a correct motor installation.

I/O and Safety Interlock: Confirm that the robot’s safety PLC or external safety relay module (e.g., ABB JOKAB PLUTO or equivalent) is not masking an upstream fault. Check the emergency stop circuit, axis enable signals, and any external I/O interlocks tied to the robot cell before returning the axis to automatic mode.

Gearbox and Mechanical Interface: Inspect the axis gearbox output flange and motor mounting interface for fretting corrosion or misalignment. A worn gearbox can cause premature motor failure if not addressed during the same maintenance window. Lubrication intervals for the IRB 4600 gearbox should be reviewed in parallel with motor replacement.

Maintaining a minimum stock of one 3HAC043569-001 unit per robot cell — or one unit per every three IRB 4600 robots in a fleet — is a widely adopted spare parts strategy in high-utilization manufacturing environments. Pairing this with a stocked DSQC661 drive module and a set of axis encoder cables provides a comprehensive first-response kit for axis-related downtime events.

Site Replacement Workflow

The 3HAC043569-001 is a direct OEM replacement for the IRB 4600 axis motor position. The following workflow is recommended for site engineers performing the replacement:

1. Pre-Replacement Verification: Confirm the fault code on the IRC5 FlexPendant. Axis motor faults (e.g., 50071, 50072 series) should be documented. Verify that the fault is motor-related and not caused by drive, encoder, or brake circuit issues before proceeding with motor removal.

2. Safe Isolation: Follow ABB’s lockout/tagout procedure for the IRC5 controller. Discharge the drive capacitor bank before accessing the motor compartment. Confirm zero-energy state with a calibrated voltage tester.

3. Motor Removal and Inspection: Remove the motor mounting bolts and disconnect the power and encoder connectors. Inspect the motor shaft, mounting flange, and connector pins for damage. Document the condition of the removed unit for support terms or failure analysis records.

4. Installation of 3HAC043569-001: Install the new motor unit per ABB’s torque specifications. Reconnect power and encoder connectors, ensuring correct pin orientation. Verify connector locking engagement before closing the robot arm cover.

5. Calibration and Recommissioning: Perform axis calibration using the IRB 4600 calibration routine via the FlexPendant or RobotStudio. Verify axis position accuracy across the full working range before returning the robot to production. Log the replacement in your CMMS for support terms tracking and future maintenance scheduling.

This workflow minimizes recommissioning time and ensures the replacement is performed in a manner consistent with ABB’s maintenance guidelines, preserving system compatibility and robot cell safety certification.

Spare Parts Support FAQ

Q1: Is the 3HAC043569-001 compatible with all IRB 4600 variants?
The 3HAC043569-001 is designed for the ABB IRB 4600 series. Compatibility should be verified against your specific robot’s axis configuration and serial number. The 3HAC043569-004 is a known compatible variant. Contact [email protected] with your robot serial number for confirmation before ordering.

Q2: What pre-shipment testing is performed on each unit?
Every 3HAC043569-001 unit dispatched by KNMKS undergoes functional verification prior to shipment. This includes electrical continuity checks, insulation resistance testing, and brake circuit verification where applicable. A test report can be provided upon request for quality assurance documentation.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, electrical overstress, or use outside the specified operating environment. Support requests are processed through [email protected] with supporting fault documentation.

Q4: Can KNMKS support long-term supply for fleet maintenance programs?
Yes. KNMKS maintains ongoing inventory of the 3HAC043569-001 and related IRB 4600 spare parts to support multi-year maintenance contracts and fleet-level procurement programs. Blanket purchase orders and scheduled delivery arrangements are available. Contact our team to discuss volume pricing and supply continuity agreements.
