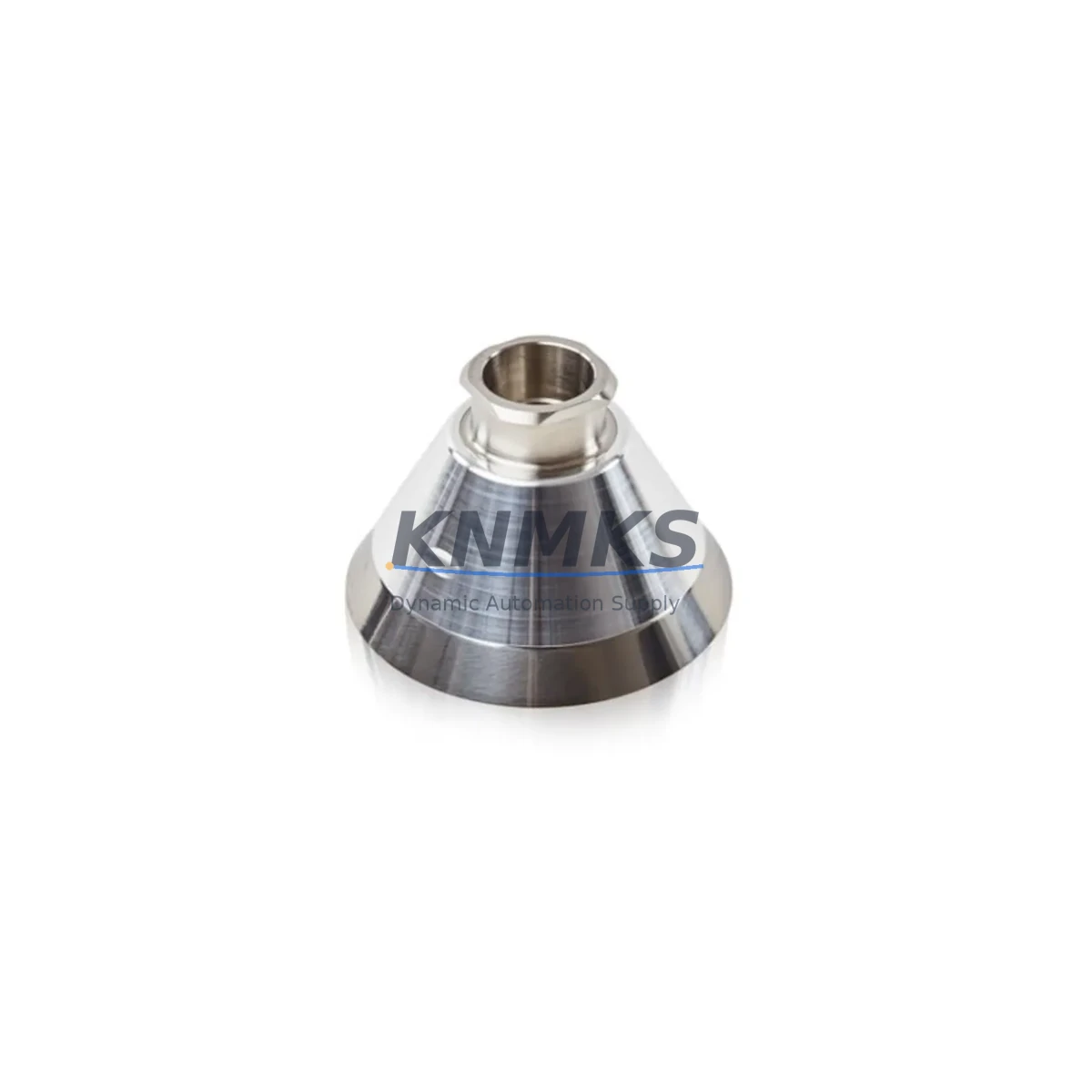

ABB 3HAC043166-005 Migration-Ready D70 Bell Cup RB Series

Overview

ABB 3HAC043166-005 Migration-Ready D70 Bell Cup RB Series: Legacy System Migration and Compatible Upgrade

The ABB 3HAC043166-005 D70 Bell Cup (BOC) is a precision rotary atomizer component engineered for ABB RB Series painting robots, including the IRB 5500 and IRB 580 platforms. As legacy painting lines face increasing pressure from discontinued OEM support, aging spare parts pipelines, and tightening production uptime requirements, the 3HAC043166-005 serves as a verified migration-ready replacement that enables facilities to extend the operational life of existing robot painting systems without committing to full platform replacement.

This bell cup is designed for direct fitment into ABB’s rotary atomizer assembly, interfacing with the high-speed air turbine spindle and the electrostatic charging circuit. Engineers planning a retrofit or spare parts replenishment cycle must confirm the following before installation: turbine shaft diameter and thread specification, shaping air and atomizing air port alignment, electrostatic voltage rating compatibility (typically 60–90 kV range for RB Series), bell cup rotation speed range (up to 60,000 RPM), and paint material compatibility (solvent-borne or waterborne). These parameters are critical to ensuring that the replacement bell cup integrates without requiring modification to the existing atomizer body or the robot’s process parameter library.

For facilities currently operating ABB painting robots with the 3HAC028357-001 atomizer body or the 3HAC043167-001 turbine cartridge assembly, the 3HAC043166-005 bell cup is the recommended replacement component. Procurement teams sourcing this part as a long-cycle spare should also evaluate stocking the 3HAC028356-001 needle valve assembly and the 3HAC043168-001 bearing cartridge to ensure a complete consumable kit for planned maintenance intervals. These components share the same service interval and are typically replaced together during scheduled downtime to minimize future unplanned stoppages.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful bell cup retrofit on an ABB RB Series painting robot requires a structured approach that accounts for both mechanical and process-level integration. Before scheduling the replacement window, maintenance engineers should pull the current process parameter file from the robot controller — typically stored in the IRC5 or IRC5P paint controller — and document the active shaping air, atomizing air, and paint flow setpoints. These values do not need to change when replacing a like-for-like bell cup, but they must be verified post-installation to confirm atomization quality is maintained.

The atomizer assembly on the IRB 5500 and IRB 580 is accessed by removing the wrist cover and disconnecting the paint hose quick-connect fitting. Facilities using the ABB IDAB or Ransburg electrostatic system should ensure the high-voltage cable is fully discharged before disassembly. The 3HAC043166-005 bell cup threads onto the turbine spindle — confirm the thread engagement depth and apply the correct torque value as specified in the ABB atomizer service manual. Over-torquing is a common cause of premature spindle bearing wear in the 3HAC043167-001 turbine cartridge.

For lines undergoing a broader control system migration — for example, transitioning from an S4C+ controller to an IRC5 platform — the bell cup replacement is typically bundled with updates to the paint process module, I/O signal mapping, and fieldbus configuration. In these scenarios, engineers should also audit the DeviceNet or PROFIBUS communication links between the paint controller and the zone control cabinet, and verify that the new controller’s digital output assignments for atomizer enable, high voltage enable, and paint trigger match the existing wiring harness. The 3HAC028357-001 atomizer body and associated paint hose manifold should be inspected for wear during this window, as replacement parts may have extended lead times.

Facilities managing multi-robot painting lines should consider stocking a minimum of two 3HAC043166-005 bell cups per robot as a buffer against unplanned failures. Bell cups are a high-wear consumable with replacement intervals that vary by paint throughput, coating material abrasiveness, and cleaning cycle frequency. A support terms confirmed by quotation-backed supply agreement ensures that replacement units are available without relying on spot-market procurement, which carries risk of counterfeit or non-OEM-grade components that can cause imbalance, vibration, and premature turbine failure.

Downtime Control During System Migration

Minimizing unplanned downtime during a bell cup replacement or broader atomizer retrofit is achievable with proper pre-staging and a disciplined changeover protocol. The recommended approach is to pre-torque the replacement 3HAC043166-005 bell cup onto a spare turbine cartridge assembly offline, so that the on-robot swap is reduced to a cartridge-level exchange rather than a component-level assembly. This technique, common in high-throughput automotive painting facilities, reduces the robot’s offline window to under 30 minutes for a trained technician.

Before the maintenance window opens, the robot program should be placed in a safe hold state with the paint zone interlocked. The IRC5 paint controller’s active program should be backed up to a USB or network share — ABB’s RobotStudio software supports this via the controller backup function. This ensures that if a parameter is inadvertently altered during the maintenance sequence, the original process logic can be restored without re-teaching spray paths or recalibrating the TCP (Tool Center Point).

Post-installation, the commissioning sequence should include a dry-spin test at low RPM to confirm bell cup balance, followed by a shaping air sweep to verify uniform air distribution. Paint flow should be introduced only after the rotation speed and air balance are confirmed stable. Electrostatic voltage should be ramped up gradually while monitoring for arc discharge, which can indicate contamination on the bell cup surface or an incorrect installation torque. A short production trial run with a test panel is recommended before returning the robot to full production duty.

For facilities with redundant robot cells, a rolling replacement strategy — replacing one robot at a time while the adjacent cell maintains production — is the most effective method for maintaining line output during a planned retrofit campaign. This approach, combined with pre-staged spare parts including the 3HAC043166-005 bell cup, 3HAC028356-001 needle valve, and 3HAC043168-001 bearing cartridge, allows a multi-robot line to complete a full consumable refresh with zero unplanned production loss.

Retrofit Support FAQ

Q: Is the ABB 3HAC043166-005 a direct replacement for the bell cup currently installed on my IRB 5500 or IRB 580?
A: Yes, the 3HAC043166-005 D70 bell cup is the current ABB-specified replacement for the BOC rotary atomizer assembly used on the IRB 5500 and IRB 580 RB Series painting robots. It is a drop-in replacement that requires no modification to the atomizer body or robot program. Confirm the turbine spindle thread specification before installation to ensure correct engagement.

Q: What commissioning steps are required after installing the 3HAC043166-005 bell cup?
A: After installation, perform a dry-spin balance check at low RPM, verify shaping air distribution, confirm atomizing air pressure setpoints, and ramp electrostatic voltage gradually while monitoring for arc discharge. Compare post-installation spray pattern quality against the baseline test panel archived before the maintenance window. No changes to the robot program or controller parameters are required for a like-for-like replacement.

Q: What is the support terms coverage and how is it validated for shipped units?
A: All 3HAC043166-005 bell cups supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. Each unit undergoes pre-shipment inspection including dimensional verification and surface finish check. Support requests are supported with shipment documentation and inspection records. Contact [email protected] for support terms registration and claim procedures.

Q: Can KNMKS supply the 3HAC043166-005 for urgent or emergency replacement requirements?
A: Yes. KNMKS maintains buffer stock of the 3HAC043166-005 to support urgent procurement requirements. Standard lead time is confirmed at order placement. For emergency requirements, contact +86 18359268345 or [email protected] to confirm available inventory and expedited shipping options. Global shipping is supported with export documentation for customs clearance.
