ABB 3HAC043074-001 Spare Part for IRB 6700 Uptime

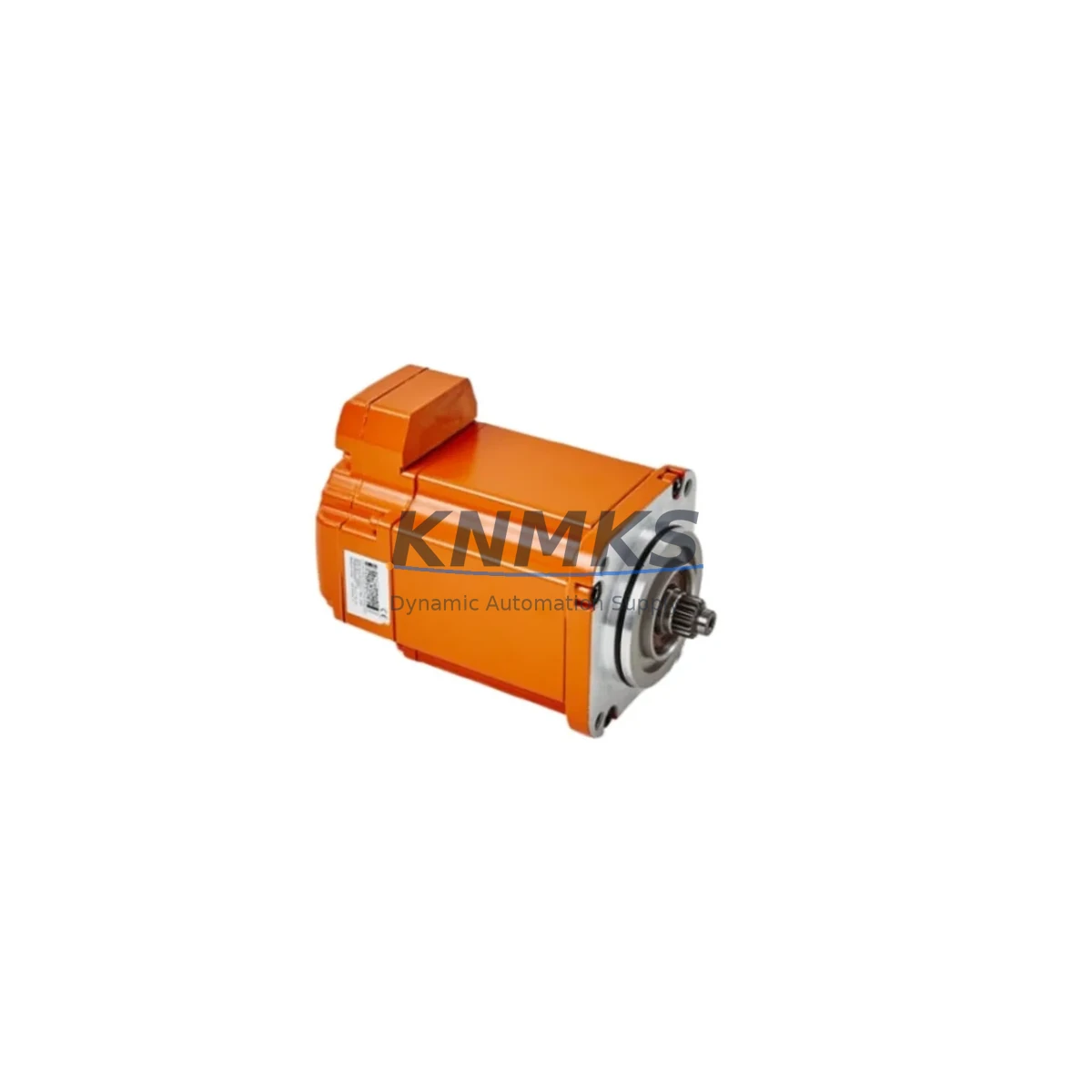

The ABB 3HAC043074-001 is an OEM-grade servo motor drive unit engineered for the IRB 6700 series industrial robot platform — one of ABB’s most widely deployed six-axis robot families in automotive, metal fabrication, foundry, and heavy-duty material handling environments. As a direct maintenance spare, this unit is designed to restore full servo axis performance with minimal downtime, making it a critical component in any planned or emergency maintenance program for IRB 6700, IRB 6600, IRB 6650, and IRB 660 installations.

For maintenance engineers managing aging robot fleets, the 3HAC043074-001 addresses one of the most common failure modes in high-cycle robotic systems: servo drive degradation caused by thermal stress, vibration fatigue, and accumulated operating hours. When axis performance begins to drift — evidenced by position error alarms, irregular motion profiles, or servo fault codes on the IRC5 controller — replacing the drive unit with a verified OEM spare is the fastest path to restoring production continuity.

At KNMKS, every 3HAC043074-001 unit is pre-tested against ABB factory specifications before shipment. Electrical parameters including rated voltage, current output, encoder feedback integrity, and thermal protection thresholds are verified to ensure the unit performs identically to the original installation. This pre-shipment testing protocol eliminates the risk of receiving a non-functional spare during a critical production window.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for IRB 6700 installations requires more than simply stocking the servo drive unit. When replacing the 3HAC043074-001, maintenance engineers should conduct a concurrent inspection of the surrounding electrical and mechanical subsystems to prevent secondary failures from masking the root cause or triggering a repeat fault within a short interval.

Begin with the IRC5 drive module cabinet: inspect the axis computer board (DSQC 668 or equivalent) for fault history logs and verify that the drive module power supply rails are within tolerance. A degraded 24VDC power supply unit inside the IRC5 cabinet can cause intermittent servo faults that mimic drive unit failure — replacing the servo unit without addressing the upstream power issue will result in repeat downtime. The SMB (Serial Measurement Board), typically the 3HAC031670-001, should also be inspected for encoder signal integrity, as a failing SMB can corrupt position feedback and cause axis runaway or position error alarms even with a new drive unit installed.

The resolver or encoder cable harness connecting the servo motor to the SMB is another high-wear item in high-cycle environments. Inspect the 3HAC031683-001 or equivalent motor cable for insulation damage, connector pin corrosion, and continuity. A damaged motor cable will prevent the new drive unit from achieving stable closed-loop control and may trigger immediate fault codes on first power-up after replacement.

For robots operating in foundry or high-temperature environments, the axis gearbox lubrication condition should be assessed at the same time. The 3HAC043074-001 drives the mechanical load through the reduction gear assembly — if the gearbox is worn or under-lubricated, the increased mechanical resistance will place abnormal current demand on the new drive unit, shortening its service life. Refer to ABB’s lubrication schedule for the IRB 6700 and top up or replace gearbox grease as required.

Finally, verify the FlexPendant and IRC5 system software version compatibility. If the robot controller firmware has been updated since the original installation, confirm that the new drive unit’s firmware revision is compatible with the current IRC5 software baseline. In some cases, a firmware update via the RobotStudio programming cable may be required before the axis can be commissioned successfully.

Site Replacement Workflow

A structured replacement workflow minimizes unplanned downtime and reduces the risk of commissioning errors when installing the 3HAC043074-001 in the field.

Step 1 — Fault Isolation: Use the IRC5 FlexPendant to retrieve the active fault log. Confirm that the fault code points to the specific axis servo circuit before proceeding with hardware replacement. Document the fault code, axis number, and operating conditions at the time of failure.

Step 2 — Safe Shutdown: Execute a controlled program stop, engage the mechanical brake on the affected axis, and isolate the IRC5 cabinet power. Follow ABB’s lockout/tagout procedure for the IRB 6700 before opening any cabinet panels or accessing the robot arm.

Step 3 — Component Removal: Disconnect the motor power cable and encoder/resolver cable from the existing drive unit. Label all connectors before removal to prevent miswiring during reinstallation. Remove the drive unit from the robot arm housing, noting the torque specifications for all fasteners.

Step 4 — Installation: Install the 3HAC043074-001 into the robot arm housing. Reconnect the motor power cable and encoder cable in the correct orientation. Torque all fasteners to ABB specification. Verify that the SMB cable is fully seated and latched.

Step 5 — Commissioning: Restore IRC5 cabinet power. Perform a fine calibration routine using the FlexPendant to re-establish axis zero position. Run a low-speed jog test on the affected axis before resuming automatic program execution. Monitor the IRC5 drive module for thermal and current alarms during the first 30 minutes of operation.

Step 6 — Documentation: Record the replacement in the robot maintenance log, including the part number, serial number, installation date, and technician name. Update the spare parts inventory to trigger a reorder for the next 3HAC043074-001 unit.

Spare Parts Support FAQ

Q1: Is the 3HAC043074-001 compatible with both IRB 6700 and IRB 6600 platforms?
Yes. The 3HAC043074-001 is cross-compatible with the IRB 6700, IRB 6600, IRB 6650, and IRB 660 series. It also cross-references with 3HAC042840-001 and 3HAC033224-003. Always verify the axis number and robot variant against the ABB spare parts catalog before installation to confirm the correct unit for your specific robot configuration.

Q2: What pre-shipment testing is performed on each unit?
Every 3HAC043074-001 shipped by KNMKS undergoes electrical parameter verification, encoder feedback testing, and functional performance checks against ABB OEM specifications. A test report is available upon request. Units that do not meet specification thresholds are quarantined and not shipped.

Q3: How quickly can the unit be shipped, and what support terms is provided?
In-stock units are dispatched within 1–2 business days. Global shipping is supported with tracking. Each unit carries a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Support requests are processed directly through KNMKS.

Q4: What should be inspected alongside the 3HAC043074-001 to prevent repeat failures?
Concurrent inspection of the IRC5 drive module power supply, the Serial Measurement Board (SMB), the motor encoder cable harness, and the axis gearbox lubrication condition is strongly recommended. Addressing these adjacent components during the same maintenance window reduces the risk of repeat servo faults and maximizes the service life of the replacement unit.
