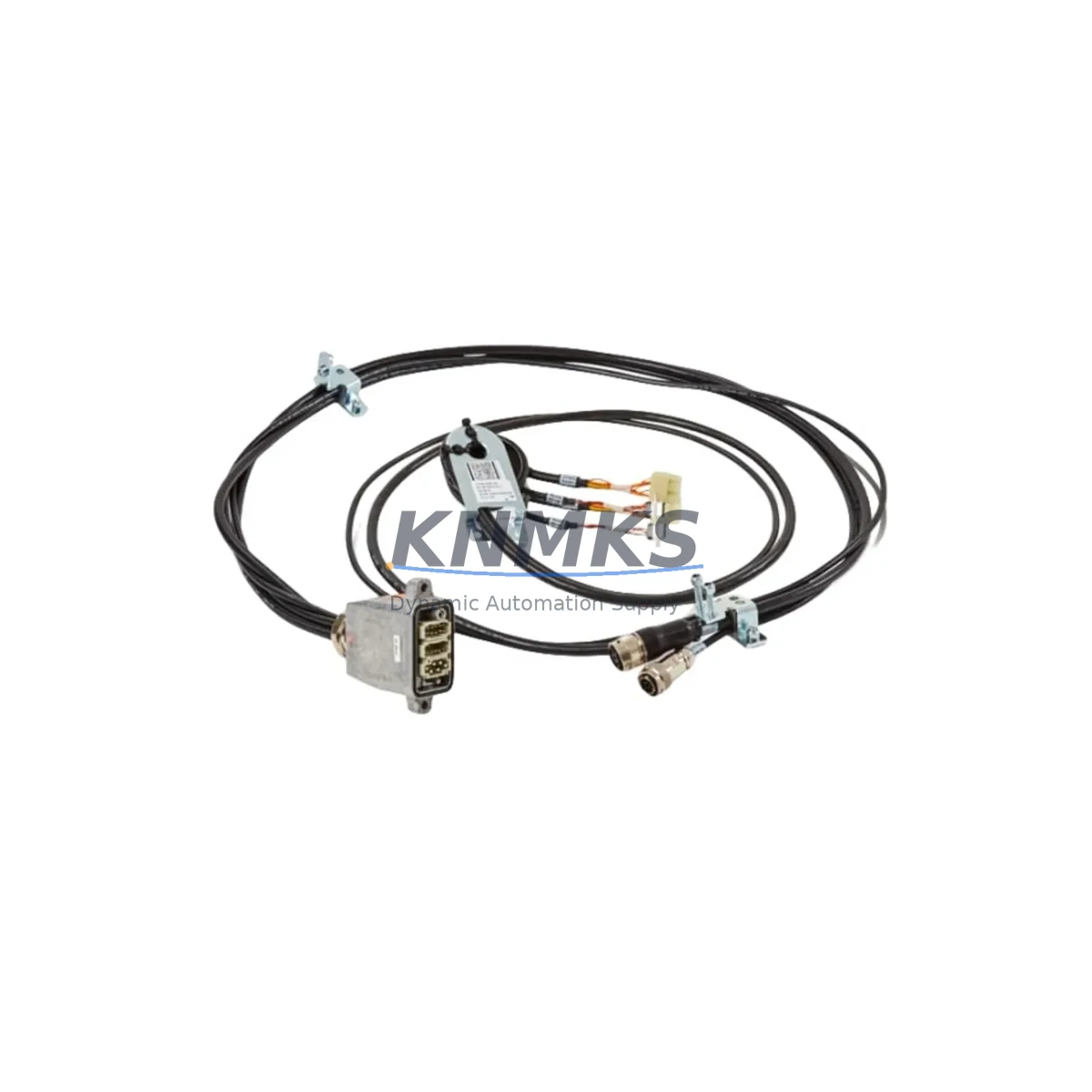

In continuous manufacturing environments, the integrity of internal cable harnesses is often the difference between a planned maintenance window and an unplanned production halt. The ABB 3HAC042840-001 is an original internal cable harness designed for ABB IRB 4600 and IRB 6700 series industrial robots — two of the most widely deployed articulated robot platforms in automotive, metal fabrication, and general assembly lines worldwide. When this harness degrades due to mechanical fatigue, insulation wear, or connector oxidation, the result is signal loss, axis fault alarms, or complete robot shutdown. Stocking a verified replacement unit is the most reliable way to restore operations within a single shift rather than waiting days for emergency procurement.

The 3HAC042840-001 harness routes power and signal connections through the robot’s internal axis structure, interfacing directly with the servo drive system, encoder feedback circuits, and safety monitoring channels. Its routing path is engineered to withstand the repetitive flexion cycles inherent to high-speed robotic motion, and the connector housings are rated for the vibration and thermal cycling typical of welding cells, press-tending stations, and palletizing lines. Every unit supplied by KNMKS is sourced from verified ABB distribution channels, inspected against dimensional and continuity specifications, and dispatched with a support terms confirmed by quotation covering manufacturing defects and premature failure under normal operating conditions.

For maintenance engineers managing a fleet of IRB 4600 or IRB 6700 robots, the 3HAC042840-001 should be treated as a Tier-1 critical spare — one that belongs in the cabinet alongside the robot controller’s backup battery pack, the SMB (Serial Measurement Board) unit such as the 3HAC14550-2, and the axis computer board. When a harness fault is diagnosed, the replacement workflow is straightforward: power down the robot, lock out the controller, remove the upper arm cover, disconnect the faulty harness at both termination points, route the new 3HAC042840-001 along the original cable path, reconnect, and perform a system restart with axis calibration verification. Total downtime for an experienced technician is typically under four hours.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for ABB IRB 4600 and IRB 6700 robots extends well beyond the cable harness itself. When scheduling a harness replacement or responding to an axis fault, maintenance engineers should simultaneously inspect the SMB unit (3HAC14550-2), which manages encoder signal processing and is directly connected to the harness signal lines. A degraded harness can induce transient errors that mask underlying SMB faults, so both components should be evaluated together during any axis-related diagnostic session.

The robot controller’s internal power distribution — including the drive unit and rectifier module — should also be checked for output stability. Voltage ripple or intermittent supply from the drive system can accelerate harness insulation breakdown over time, particularly in high-duty-cycle applications. Similarly, the axis computer board and its associated I/O interface modules should be inspected for connector corrosion or loose seating, as these are common secondary failure points when a harness fault has been present for an extended period.

For robots operating in welding or plasma-cutting environments, the teach pendant cable and its strain relief assembly are frequently overlooked during harness replacement. Spatter ingress and UV degradation affect the pendant cable at a similar rate to the internal harness, and replacing both during the same maintenance window eliminates a second unplanned outage within the same service cycle. Additionally, the robot’s battery backup unit — responsible for preserving axis position data during power-off — should be tested and replaced on schedule, as a failed battery will require full axis calibration after any harness swap that involves a controller restart.

Site Replacement Workflow

Replacing the ABB 3HAC042840-001 on an IRB 4600 or IRB 6700 follows a structured procedure that minimizes downtime and ensures system compatibility. Begin by downloading the current robot configuration and axis calibration data to a USB backup before any physical intervention. This protects against data loss during the power cycle and provides a restore point if post-replacement calibration reveals unexpected axis offsets.

With the robot in the maintenance position and the controller locked out, remove the upper arm housing panels to access the internal cable routing channel. Document the existing harness routing with photographs before disconnection — this is particularly important for robots that have been in service for several years and may have had previous non-standard repairs. Disconnect the harness at the axis 4/5/6 motor connectors and at the upper arm junction block, then carefully extract the harness from its routing clips without disturbing adjacent signal cables.

Install the new 3HAC042840-001 by following the original routing path, securing all clips and strain relief points. Reconnect all motor and signal connectors, verifying that each connector is fully seated and latched. Restore power, perform a controller restart, and run the ABB axis calibration routine. Verify that all six axes report correct encoder positions and that no fault codes are active before returning the robot to production. A short dry-run cycle at reduced speed is recommended before resuming full-rate production.

This replacement approach is compatible with both legacy IRB 4600 installations running IRC5 controllers and newer IRB 6700 systems. The 3HAC042840-001 is a direct OEM replacement that requires no firmware changes or parameter adjustments, making it the lowest-risk option for field replacement compared to aftermarket alternatives.

Spare Parts Support FAQ

Q: What is the support terms coverage for the ABB 3HAC042840-001?
A: KNMKS provides a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects and premature failure under normal operating conditions. Support requests are supported by our technical team with replacement dispatch within 5 business days of fault confirmation.

Q: How do I verify compatibility with my specific IRB 4600 or IRB 6700 variant?
A: The 3HAC042840-001 is compatible across the IRB 4600 and IRB 6700 series. To confirm fitment for your specific robot variant and manufacturing date, provide your robot serial number to [email protected] and our engineering team will verify compatibility before shipment.

Q: What pre-shipment testing is performed on each unit?
A: Every 3HAC042840-001 unit undergoes continuity testing across all conductors, insulation resistance measurement, and physical connector seating verification before dispatch. Test records are available upon request for quality documentation purposes.

Q: Can KNMKS support long-term supply for fleet maintenance programs?
A: Yes. KNMKS maintains buffer stock of high-demand ABB spare parts including the 3HAC042840-001 to support scheduled maintenance programs and emergency replacement needs. Volume pricing and reserved stock agreements are available for customers managing fleets of 10 or more robots. Contact [email protected] for program details.
