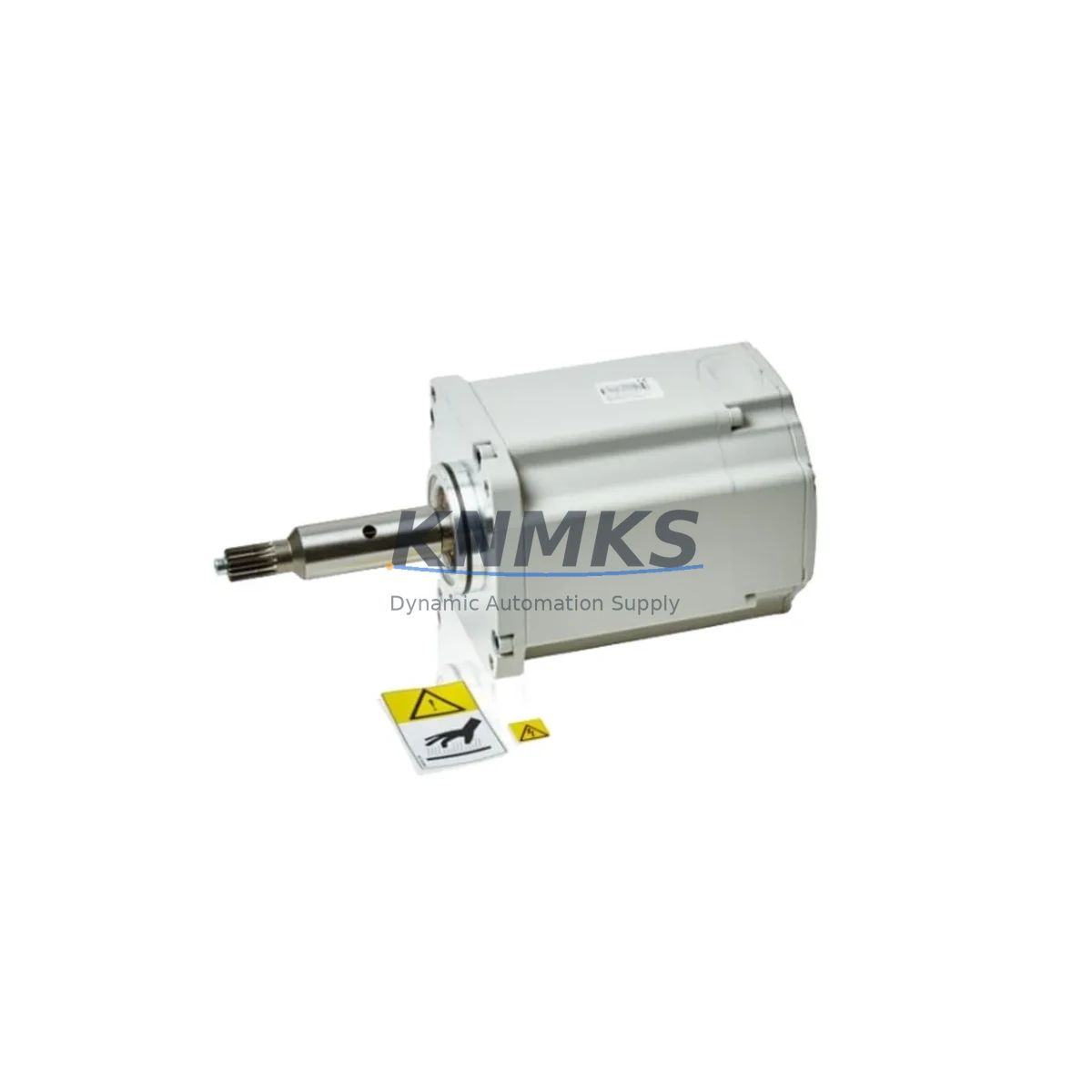

ABB 3HAC040502-001 Fail-Safe AC Servo Motor

Overview

ABB 3HAC040502-001 Fail-Safe AC Servo Motor: Fault Protection and Critical Industrial Field Reliability

The ABB 3HAC040502-001 is a precision-engineered AC servo motor designed for joint drive applications in ABB IRB 460 and IRB 6700 industrial robot systems. Built to ABB’s stringent safety and reliability standards, this motor delivers consistent torque output and position accuracy in continuous production environments where unplanned downtime carries severe operational and safety consequences. Whether deployed in palletizing lines, heavy-payload transfer cells, or high-cycle welding stations, the 3HAC040502-001 is engineered to maintain fail-safe performance under demanding electrical and mechanical stress.

In critical interlock circuits and safety-rated control architectures, servo motor reliability is non-negotiable. The 3HAC040502-001 integrates seamlessly with ABB’s IRC5 controller platform and the associated drive modules, ensuring that position feedback, torque limiting, and emergency stop response remain within certified safety margins. Its robust encoder interface minimizes signal drift risk — a common failure mode in high-electromagnetic-interference environments such as arc welding bays, induction heating zones, and variable-frequency drive-dense control cabinets.

For facilities operating in dusty, humid, high-temperature, or high-vibration conditions — including metallurgical plants, port logistics terminals, mining extraction sites, and offshore marine installations — the 3HAC040502-001 provides the mechanical and electrical resilience required for long-interval maintenance cycles. Its sealed construction resists particulate ingress and moisture penetration, reducing the risk of insulation breakdown, bearing contamination, and premature winding failure that can trigger unscheduled shutdowns in continuous process lines.

Surge and transient protection is a critical consideration in heavy industrial control cabinets. When paired with ABB DSQC series drive units and properly specified surge suppression components within the robot controller enclosure, the 3HAC040502-001 is protected against voltage spikes originating from capacitor bank switching, motor inrush events, and grid-side disturbances. Complementary components such as the ABB 3HAC025338-001 axis computer board and ABB 3HAC026254-001 drive unit are commonly deployed alongside this servo motor to form a complete, validated axis control chain — reducing integration risk and simplifying spare parts governance.

Communication integrity between the servo motor’s feedback encoder and the IRC5 controller is maintained through shielded cable assemblies and the ABB 3HAC031683-001 measurement board, which conditions encoder signals and provides fault detection for open-circuit and short-circuit conditions. In safety-critical applications requiring SIL 2 or PLd compliance, this signal chain integrity is essential for safe torque off (STO) and safe stop (SS1/SS2) function validation. The ABB 3HAC14550-2 teach pendant and associated safety panel components complete the operator-side safety loop, ensuring that field personnel can initiate controlled stops without risk of residual motion.

Replacement planning for the 3HAC040502-001 should account for ABB’s OEM lead times, which can extend significantly for legacy robot configurations. Maintaining a buffer stock of this motor — alongside compatible cross-reference units 3HAC12924-1 and 3HAC046163-001 — is a recognized best practice for facilities with high robot utilization rates and strict mean-time-to-repair (MTTR) targets. KNMKS maintains verified inventory of the 3HAC040502-001 with pre-shipment functional testing and a support terms confirmed by quotation, supporting rapid field replacement without extended production interruption.
