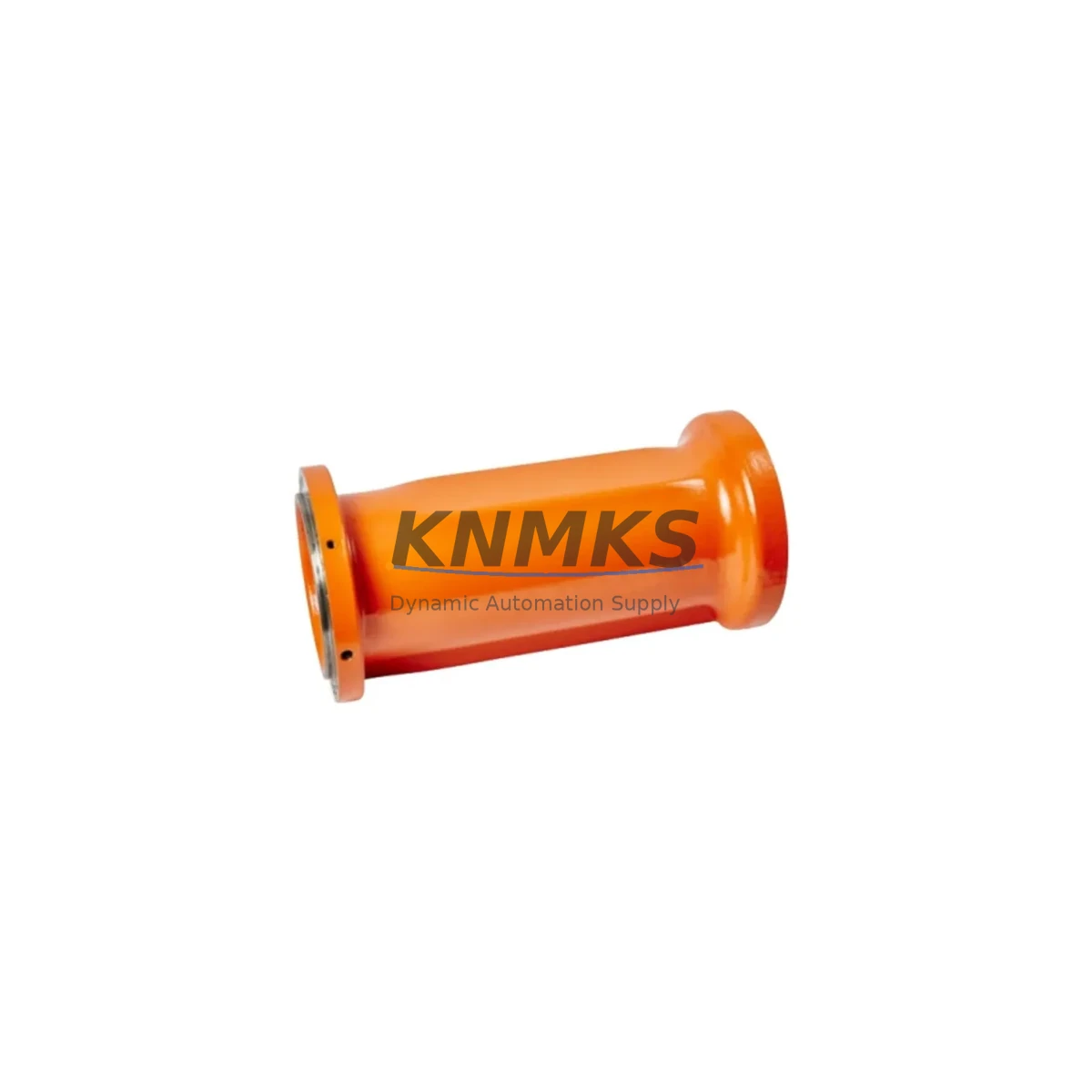

ABB 3HAC037638-002 HDS120-0825BRKBS Migration-Ready Servo

Overview

ABB 3HAC037638-002 HDS120-0825BRKBS Migration-Ready AC Servo Motor for Legacy Control Systems

The ABB 3HAC037638-002 (HDS120-0825BRKBS / 3HAC17339-1) is a migration-ready AC servo motor engineered for direct replacement in ABB IRB 6600 and IRB 7600 robotic systems. As legacy robot cells approach end-of-service milestones, sourcing a verified, drop-in servo motor with confirmed mechanical and electrical compatibility is critical to minimizing retrofit risk and unplanned downtime. This unit ships pre-tested, with full dimensional and connector verification against the original ABB axis drive specification.

Engineers planning a servo replacement or axis drive upgrade must confirm several parameters before installation: motor frame size and mounting bolt pattern, encoder connector pinout (typically a 17-pin or 23-pin Harting or Intercontec interface on HDS-series motors), brake voltage (24 VDC on BRKBS suffix units), cable harness routing clearance inside the robot arm, and resolver or encoder signal compatibility with the existing ABB DSQC drive module. The HDS120-0825BRKBS designation indicates a high-dynamic servo with integrated spring-applied brake — a configuration commonly required on axes 1–3 of the IRB 6600/7600 where gravity-hold is mandatory for safe power-off behavior.

When retrofitting this motor into an existing robot cell, the ABB IRC5 controller cabinet must be verified for drive module compatibility. The DSQC 661 or DSQC 663 servo drive units are the typical counterparts for this motor family. If the existing drive module shows fault codes related to motor feedback loss or overcurrent, the drive itself may require replacement alongside the servo motor. In multi-axis cells, it is advisable to audit all axis motors simultaneously rather than replacing a single unit, as adjacent motors on the same robot — such as the axis 2 or axis 3 HDS motor variants — may show similar wear patterns after equivalent operating hours.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful servo motor retrofit on an ABB IRB 6600 or IRB 7600 requires a structured pre-installation audit. Begin by pulling the robot’s service log from the IRC5 FlexPendant to identify accumulated operating hours on the affected axis. Motors in the HDS series are typically rated for a defined grease interval and bearing service life — exceeding these thresholds without replacement increases the risk of in-service failure during production.

Before removing the failed or degraded motor, document the current axis calibration offsets stored in the IRC5 system parameters. These values — accessible via the RobotStudio configuration editor or directly from the FlexPendant system menu — must be restored or recalibrated after the new motor is installed. Failure to recalibrate will result in positional errors that can damage tooling, fixtures, or the robot structure itself.

The motor cable harness connecting the HDS120-0825BRKBS to the IRC5 cabinet runs through the robot’s internal cable management system. During motor removal, inspect the full cable run for insulation wear, connector corrosion, or pinched sections — particularly at the wrist and upper arm articulation points. A degraded motor cable can cause intermittent encoder faults even after a new motor is installed. If the harness shows damage, the ABB 3HAC044075-001 or equivalent axis cable set should be replaced concurrently.

For sites running multiple IRB 6600 or IRB 7600 robots on the same production line, it is operationally efficient to maintain a spare motor inventory alongside related consumables: the DSQC 661 servo drive module for IRC5, the SMB (Serial Measurement Board, e.g., DSQC 633) which manages encoder data routing, and the IRC5 main computer unit (DSQC 656) if the controller is approaching end-of-support. Coordinating these spares reduces the mean time to repair (MTTR) when an axis fault occurs during a production shift.

Sites migrating from an older S4C+ controller to the IRC5 platform should note that the HDS motor series is native to IRC5 and is not directly compatible with S4C+ drive hardware without a full controller cabinet upgrade. In such cases, the migration path typically involves replacing the S4C+ cabinet with an IRC5 Compact or IRC5 Panel Mounted Controller, updating the robot’s system parameters, and re-importing the existing RAPID program after syntax validation for RobotWare version differences.

Downtime Control During System Migration

Minimizing production downtime during a servo motor replacement on an ABB industrial robot requires advance preparation and a disciplined on-site procedure. The target for a planned motor swap on an IRB 6600 axis 1–3 motor is typically 4–8 hours for a skilled ABB-certified technician, including mechanical removal, motor installation, cable reconnection, brake function test, and axis calibration.

Before the maintenance window begins, pre-stage all required tools: torque wrench set calibrated to ABB specifications, Intercontec or Harting connector extraction tools, a laptop with RobotStudio installed and licensed, and the robot’s backup file (saved from the IRC5 FlexPendant prior to shutdown). The backup preserves the RAPID program, system parameters, I/O configuration, and safety settings — restoring from backup after calibration ensures the robot returns to its pre-maintenance operational state without manual re-entry of parameters.

During the motor swap, the IRC5 cabinet should remain powered for brake release control if the robot arm must be manually positioned. Use the brake release unit (if equipped) or the IRC5 manual brake release function to safely lower gravity-loaded axes before disconnecting the motor. Never rely on mechanical blocking alone without also engaging the IRC5 emergency stop and lockout/tagout procedure.

After motor installation and cable reconnection, perform a brake function test at 24 VDC before releasing the robot for calibration. Confirm brake engagement and release response before proceeding. Complete the fine calibration procedure using the calibration pendulum or the robot’s built-in calibration routine, verify all axis positions against the calibration marks, and run a slow-speed test cycle of the existing RAPID program before returning the robot to full production speed. This structured commissioning sequence protects the original program logic and confirms mechanical and electrical integrity before resuming operations.

Retrofit Support FAQ

Q1: Is the ABB 3HAC037638-002 a direct drop-in replacement for the original HDS120-0825BRKBS motor in IRB 6600/7600 robots?
Yes. The 3HAC037638-002 is the ABB OEM part number for the HDS120-0825BRKBS motor. It is a direct mechanical and electrical replacement for the original unit. Verify the cross-reference 3HAC17339-1 against your robot’s spare parts manual to confirm axis applicability before ordering.

Q2: What commissioning steps are required after replacing this servo motor?
After mechanical installation and cable reconnection, a brake function test and axis fine calibration are mandatory. Use the ABB CalPend tool or the IRC5 UpdateCalibration routine. Restore the robot backup file to preserve RAPID programs and system parameters. Run a slow-speed test cycle before returning to production.

Q3: Does this motor ship tested, and what support terms is provided?
Yes. Each unit undergoes pre-shipment functional testing including brake engagement verification and encoder signal check. A support terms confirmed by quotation from the shipment date covers manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical lead time and stock availability?
This part is maintained availability confirmed by RFQ to support urgent replacement requirements. Standard shipment is available within 3–5 business days. For large-quantity orders or multi-robot fleet maintenance programs, contact our sales team to confirm availability and arrange priority allocation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3HAC037638-002/HDS120-0825BRKBS/3HAC17339-1
IRC5 Series

Product Family

Servo Systems

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Motion range

Servo drives, motors and cable sets

Common needs

Power, encoder and brake confirmation

Project support

Motion upgrade and spare-part supply

Inquiry Support

• Motor, drive and cable set coordination
• Power rating and encoder type checking
• Motion control replacement support

What to Send Us

• Brand and exact model number: ABB 3HAC037638-002/HDS120-0825BRKBS/3HAC17339-1
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
