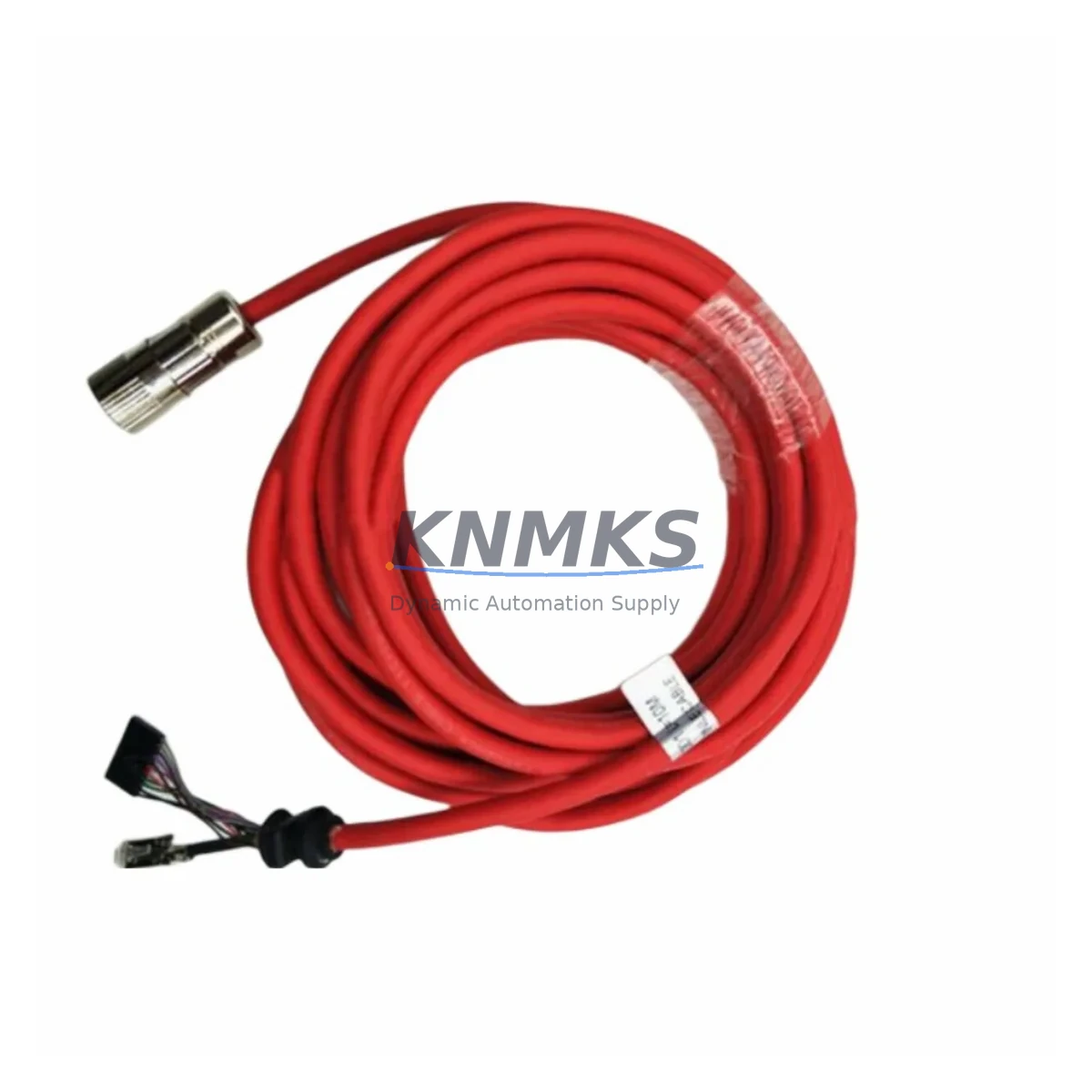

ABB 3HAC031683-004 Fail-Safe Teach Pendant Cable

Overview

ABB 3HAC031683-004 Fail-Safe Teach Pendant Cable: Fault Protection and Critical Industrial Reliability

The ABB 3HAC031683-004 is a 30-meter FlexPendant teach pendant cable engineered for the ABB IRC5 robot controller platform. Designed to meet the demanding requirements of continuous production environments, this cable delivers fail-safe signal integrity between the IRC5 controller and the FlexPendant operator panel — a communication link that is mission-critical in every robot-integrated production cell.

In industrial automation, the teach pendant cable is far more than a passive connector. It carries real-time operator commands, safety interlock signals, emergency stop (E-stop) circuits, and live status feedback between the controller and the human-machine interface. Any degradation in this cable — whether from mechanical fatigue, electromagnetic interference, connector oxidation, or insulation breakdown — can result in robot misoperation, unplanned downtime, or, in worst-case scenarios, a safety incident. The 3HAC031683-004 is built to eliminate these failure modes under the harshest field conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a fully integrated ABB IRC5 robot cell, the teach pendant cable does not operate in isolation. Its reliability is directly tied to the health of the entire control cabinet ecosystem. When deploying or replacing the 3HAC031683-004, field engineers should simultaneously audit the condition of adjacent components to ensure system-wide fault protection.

The ABB IRC5 Main Computer Unit (3HAC025338-001) is the processing core that interprets all FlexPendant inputs — a degraded cable can cause the main computer to log spurious communication faults or trigger protective stops. Alongside it, the ABB Drive Unit (3HAC024488-001) governs axis motion; any E-stop signal corruption in the pendant cable directly affects the drive unit’s ability to execute a controlled stop, increasing mechanical stress on the robot arm.

For cabinet power stability, the ABB Power Supply Unit (3HAC14265-1) must maintain regulated 24VDC to both the controller logic and the FlexPendant interface. Voltage fluctuations or surge events in the cabinet can accelerate connector degradation in the pendant cable — making a quality surge protection module (such as those in the ABB SACE or OVR series) a recommended co-installation component in high-risk electrical environments.

In safety-rated robot cells, the ABB Safety Controller Module (JSHD4) or equivalent safety PLC handles dual-channel E-stop monitoring. The integrity of the 3HAC031683-004’s safety conductors is a prerequisite for this module to correctly validate operator panel states. Additionally, the ABB FlexPendant Unit (3HAC028357-001) itself should be inspected when replacing the cable — connector wear on the pendant side is a common co-failure mode that, if overlooked, will cause recurring faults even after cable replacement.

For facilities running multiple IRC5 cells, maintaining a buffer stock of the 3HAC031683-004 alongside spare IRC5 I/O Units (DSQC652) and ABB Axis Computer boards is a proven strategy to minimize mean time to repair (MTTR) during unplanned stoppages.

Critical Industrial Safety Applications

Automotive & Heavy Manufacturing: In body-in-white welding lines and press-tending cells, the IRC5 FlexPendant is used daily for program selection, speed override, and manual jogging. The 30M cable length of the 3HAC031683-004 allows operators to maintain safe standoff distances from the robot work envelope while retaining full control — a critical ergonomic and safety requirement under ISO 10218-2.

Petrochemical & Hazardous Area Installations: In robot-assisted drum handling, valve actuation, or inspection tasks near classified zones, the cable’s ruggedized jacket and shielded conductors resist hydrocarbon vapors, cleaning solvents, and high-humidity condensation that would degrade standard cables within months.

Foundry & Metal Processing: Extreme thermal cycling, metal splash, and airborne particulates are endemic in foundry environments. The PUR jacket of the 3HAC031683-004 provides superior abrasion and thermal resistance compared to standard PVC cables, extending service life in conditions where cable replacement would otherwise be a quarterly maintenance event.

Food & Beverage / Pharmaceutical: Washdown environments demand cables that resist moisture ingress at connectors and along the jacket. The sealed connector design of the ABB OEM cable prevents water tracking into the IRC5 controller — a failure mode that can cause controller board corrosion and void equipment warranties.

Port Logistics & Heavy Crane Automation: In semi-automated crane and gantry systems using ABB robot controllers for load positioning, the 30M cable provides the reach needed for ground-level operator control of elevated equipment, while the flex-rated construction tolerates the continuous cable movement inherent in these applications.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the ABB 3HAC031683-004?
All units ship with a support terms confirmed by quotation from the date of shipment. Coverage includes manufacturing defects, connector failure, and insulation breakdown under normal operating conditions. Support requests are processed with priority to minimize production downtime for our industrial customers.

Q2: What outgoing inspection and testing is performed before shipment?
Every 3HAC031683-004 unit undergoes 100% pre-shipment testing including full conductor continuity verification across all signal and power cores, insulation resistance measurement, and physical connector integrity inspection. Test records are available upon request for quality-critical procurement processes.

Q3: Is this cable compatible with all IRC5 controller variants and FlexPendant generations?
The 3HAC031683-004 is designed for the ABB IRC5 platform, including Single Cabinet, Dual Cabinet, and Compact IRC5 variants. It is compatible with the standard IRC5 FlexPendant (3HAC028357-001). Customers with IRC5P (paint) or non-standard IRC5 derivatives should confirm the connector specification with our technical team prior to ordering.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
Yes. We maintain dedicated buffer stock of the 3HAC031683-004 to support planned maintenance schedules, annual spare parts procurement, and emergency replacement requirements. For facilities operating multiple IRC5 cells, we offer volume reservation arrangements to ensure supply availability across your maintenance planning horizon.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3HAC031683-004
IRC5 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: ABB 3HAC031683-004
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
