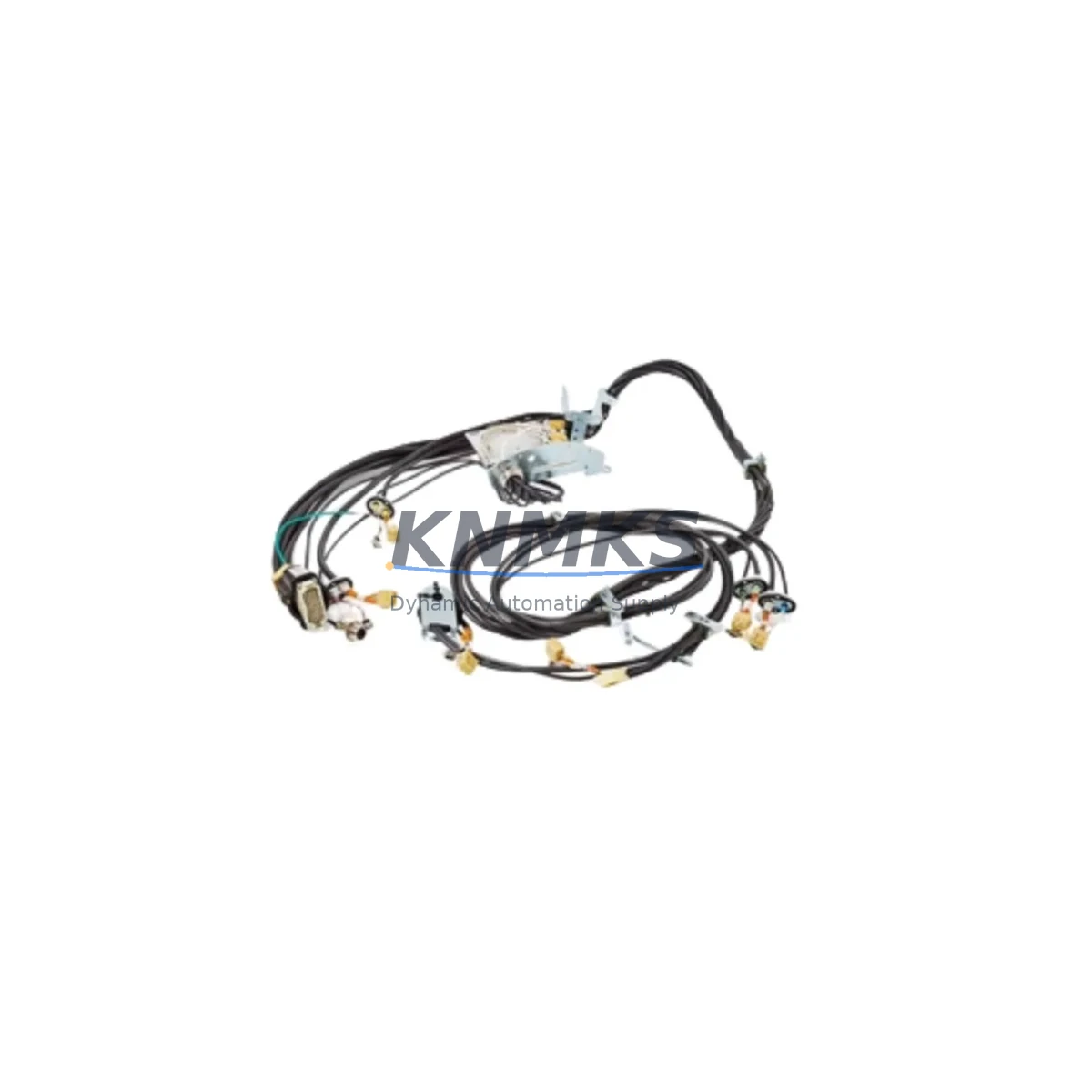

ABB 3HAC030006-001 Migration-Ready Cable Harness for Legacy IRB 2600 Control Systems

The ABB 3HAC030006-001 is a migration-ready cable harness engineered specifically for the IRB 2600 industrial robot series. As automation facilities worldwide face the challenge of maintaining aging robotic cells, this cable harness serves as a critical drop-in replacement for end-of-life and discontinued wiring assemblies that are no longer available through standard OEM channels. Whether you are executing a planned maintenance overhaul, responding to an unplanned cable failure, or undertaking a full control cabinet upgrade, the 3HAC030006-001 provides the electrical continuity and mechanical compatibility required to restore full robot operation with minimal downtime.

Facilities running IRB 2600 robots on IRC5 controller platforms frequently encounter wiring degradation after years of continuous duty cycles. The 3HAC030006-001 is designed to match the original connector pinout, cable routing path, and shielding specification of the factory-installed harness, eliminating the need for custom re-wiring or terminal block adaptation. This is particularly important in environments where the robot program logic, axis calibration data, and SafeMove safety configuration must be preserved without modification during the cable replacement procedure.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful cable harness retrofit on the IRB 2600 requires careful coordination across several system components. Before beginning the replacement, engineers should back up the Serial Measurement Board (SMB) data using the ABB FlexPendant or RobotStudio to preserve axis revolution counter values. The IRC5 controller’s main computer — typically the DSQC 639 or DSQC 1000 — should be powered down following the correct shutdown sequence to avoid data corruption in the axis computer modules.

During the retrofit, it is common to simultaneously inspect and replace adjacent components that share the same service interval. The axis computer unit (DSQC 668) and the drive unit (DSQC 661) are frequently evaluated alongside cable harness replacements, as their connectors interface directly with the harness assembly. If the robot cell includes external axis control — for example, a servo-driven positioner or track motion unit — the corresponding external axis cable set should also be inspected to ensure signal continuity across the full kinematic chain.

For facilities upgrading from older IRC5 configurations to a modernized control architecture, the replacement of the 3HAC030006-001 cable harness is often performed in conjunction with a panel computer upgrade (DSQC 1000 replacing DSQC 639) and a SafeMove2 safety module installation. In these cases, the I/O configuration — including digital input/output modules such as the DSQC 652 — must be re-mapped in RobotStudio to reflect the new hardware addressing. The FlexPendant interface unit should also be verified for firmware compatibility with the updated controller software stack.

Communication protocol migration is another key consideration. IRB 2600 cells originally configured for PROFIBUS DP fieldbus communication may be migrated to PROFINET or EtherNet/IP during the same service window. This requires updating the fieldbus adapter module mounted in the IRC5 controller, reconfiguring the network topology in the PLC (such as a Siemens S7-300 or Allen-Bradley ControlLogix), and verifying that the robot’s I/O signal mapping aligns with the updated PLC tag database. The cable harness replacement itself does not affect fieldbus configuration, but the service window provides an efficient opportunity to address protocol migration without additional robot downtime.

Downtime Control During System Migration

Minimizing production downtime during a cable harness replacement on the IRB 2600 begins with pre-staging all replacement components before the maintenance window opens. The 3HAC030006-001 should be verified against the robot’s serial number and manufacturing date to confirm the correct harness revision is on hand. A pre-replacement checklist should include: SMB data backup, axis calibration data export from RobotStudio, photographic documentation of existing cable routing and connector positions, and confirmation that the IRC5 controller’s UPS (if installed) is functional.

During the replacement procedure, the original program modules (RAPID code) stored on the controller’s flash memory are not affected by the cable harness swap. However, it is best practice to export a full system backup — including program modules, configuration files, and I/O settings — to an external USB drive before any hardware intervention. This ensures that if an unexpected fault occurs during reassembly, the system can be restored to its pre-maintenance state without re-programming.

Post-installation, the axis revolution counters must be updated using the FlexPendant calibration routine. This is a mandatory step after any procedure that involves disconnecting the SMB cable, which is part of the 3HAC030006-001 harness assembly. Skipping this step will result in axis position errors and prevent the robot from executing its program. With proper preparation, the total replacement time — including calibration — can typically be completed within a planned 4–8 hour maintenance window, keeping production disruption to a minimum.

Retrofit Support FAQ

Q1: Is the 3HAC030006-001 a direct replacement for 3HAC029896-024 and 3HAC069630-001?
Yes. The 3HAC030006-001 supersedes both 3HAC029896-024 and 3HAC069630-001 in the IRB 2600 application. The connector interfaces, cable lengths, and routing paths are identical, allowing direct substitution without mechanical or electrical modification. All units are pre-tested for continuity and insulation resistance before shipment.

Q2: Do I need to update the IRC5 controller firmware after installing this cable harness?
No firmware update is required solely for the cable harness replacement. The 3HAC030006-001 is compatible with RobotWare 5.x and 6.x. However, if your controller is running a RobotWare version older than 5.14, we recommend consulting ABB’s release notes for any known compatibility advisories related to your specific hardware revision before proceeding with the retrofit.

Q3: What commissioning steps are required after installation?
After installing the 3HAC030006-001, you must update the axis revolution counters via the FlexPendant calibration menu. Additionally, verify all I/O signal states in the IRC5 controller’s I/O panel to confirm that digital inputs and outputs are responding correctly. If the robot is connected to a PROFIBUS or EtherNet/IP network, confirm that the fieldbus communication status shows “Connected” before resuming automatic operation.

Q4: What does the support terms confirmed by quotation cover, and what is your stock availability?
The support terms confirmed by quotation cover manufacturing defects, connector integrity, and electrical continuity failures under normal operating conditions. Units are held availability confirmed by RFQ across our regional distribution hubs and are available for immediate shipment. Pre-shipment testing includes continuity checks, insulation resistance measurement, and connector seating verification. For volume orders or urgent requirements, contact our sales team directly to confirm lead times and reserve stock allocation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

IRB26001-63HAC029896-024 IRB26001-63HAC069630-001 3HAC030006-001
IRC5 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: ABB IRB26001-63HAC029896-024 IRB26001-63HAC069630-001 3HAC030006-001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
