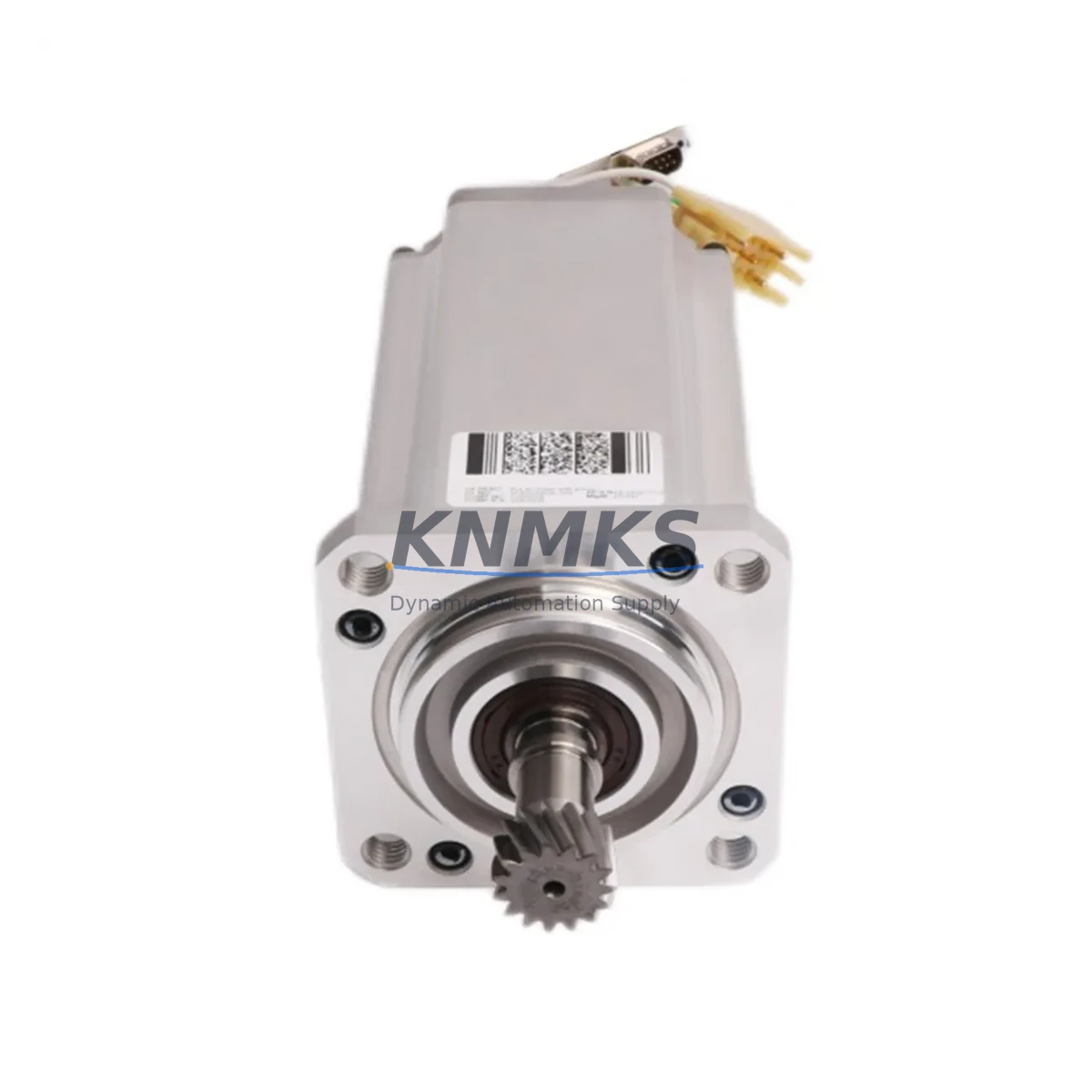

ABB 3HAC029034-004 Migration-Ready AC Servo Motor for IRB 4600

Overview

ABB 3HAC029034-004 Migration-Ready AC Servo Motor for Legacy IRB 4600 Control Systems

The ABB 3HAC029034-004 is a migration-ready AC servo motor engineered for direct retrofit into legacy IRB 4600 robotic systems operating under IRC5 controller platforms. As original ABB servo motors reach end-of-life or become increasingly difficult to source through standard distribution channels, the 3HAC029034-004 provides a verified drop-in replacement path that preserves existing wiring harnesses, encoder feedback circuits, and axis configuration parameters without requiring controller reprogramming or mechanical re-engineering.

For maintenance engineers and system integrators managing aging robotic cells, the 3HAC029034-004 addresses the most critical pain points in legacy motor replacement: connector pinout compatibility, resolver or encoder signal integrity, shaft geometry, and flange mounting dimensions. Each unit shipped from our inventory undergoes pre-shipment functional testing to confirm torque output, thermal performance, and feedback signal accuracy before dispatch.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful replacement of the 3HAC029034-004 in a live production environment requires a structured pre-migration checklist. Before removing the failed or degraded motor, engineers should document the current axis calibration data stored in the IRC5 controller — specifically the revolution counter values and fine calibration offsets for the affected axis. These values are stored in the IRC5 Axis Computer module and must be restored after motor installation to maintain TCP (Tool Center Point) accuracy.

Power supply capacity within the control cabinet should be confirmed prior to installation. The IRC5 drive module associated with the affected axis must be verified for output current rating compatibility with the 3HAC029034-004 nameplate specifications. In multi-axis cabinets, the ABB DSQC series drive units — including the DSQC 601 and DSQC 602 rectifier and drive modules — share a common DC bus, and any imbalance introduced by a mismatched motor can affect adjacent axes during simultaneous motion.

Terminal wiring at the motor junction box and at the cabinet-side connector panel should be inspected for corrosion, pin retraction, or insulation degradation before reconnecting to the replacement motor. In older IRB 4600 installations, the SMB (Serial Measurement Board) — typically the 3HAC14550-1 or equivalent — may require battery replacement concurrent with the motor swap to ensure encoder position data is retained during power cycling.

For systems where the IRB 4600 is integrated with an ABB CP600 or CP400 HMI panel, no screen reconfiguration is required following motor replacement, as the HMI communicates with the IRC5 controller at the program logic level rather than directly with individual axis hardware. However, if the robot cell uses a PROFIBUS or DeviceNet fieldbus link to a host PLC — such as a Siemens S7-300 or Allen-Bradley ControlLogix — the integrator should confirm that axis status signals and fault codes are correctly mapped after the motor is re-commissioned.

Where I/O expansion modules are installed in the IRC5 cabinet to manage gripper, conveyor, or safety interlock signals, these modules should remain powered and active during the motor swap to avoid triggering upstream PLC fault conditions. Coordinating the motor replacement window with the host PLC’s maintenance mode or safe-state routine is strongly recommended to prevent unintended line stops.

Downtime Control During System Migration

Minimizing unplanned downtime during a servo motor replacement on a live IRB 4600 cell requires preparation that begins before the replacement unit arrives on site. The 3HAC029034-004 is stocked for immediate dispatch, allowing maintenance teams to pre-stage the replacement motor alongside the required tools, calibration equipment, and spare connectors before scheduling the maintenance window.

The recommended replacement sequence begins with a controlled axis park to a known mechanical reference position, followed by a full backup of the IRC5 system parameters using the FlexPendant backup function. This backup preserves RAPID program modules, I/O configuration, axis calibration data, and safety configuration — ensuring that if any parameter is inadvertently altered during the swap, the system can be restored to its pre-maintenance state within minutes.

After physical motor installation and cable reconnection, the axis revolution counter update procedure must be performed using the FlexPendant before the robot is returned to automatic mode. Skipping this step is the most common cause of post-replacement TCP deviation and should be treated as a mandatory commissioning step regardless of how precisely the motor was mechanically positioned during installation.

For facilities operating multiple IRB 4600 units, maintaining one 3HAC029034-004 as a cold-standby spare reduces mean time to repair (MTTR) from days to hours. Our inventory is maintained across multiple regional stock locations to support urgent dispatch requirements, and each unit is pre-shipment tested and individually serialized for traceability.

Retrofit Support FAQ

Q: Is the ABB 3HAC029034-004 a direct replacement for the original IRB 4600 axis motor without mechanical modification?
A: Yes. The 3HAC029034-004 is dimensionally and electrically compatible with the original motor specification for the IRB 4600. Mounting flange, shaft dimensions, and connector pinout are preserved. Axis calibration must be updated via the FlexPendant after installation, which is standard procedure for any servo motor replacement on ABB robotic systems.

Q: Does the replacement motor require any changes to the IRC5 controller configuration or RAPID programs?
A: No RAPID program modifications are required. The IRC5 axis configuration parameters remain valid for the 3HAC029034-004. The only mandatory post-installation step is updating the revolution counter and verifying fine calibration offsets to restore TCP accuracy.

Q: What pre-shipment testing is performed on each unit?
A: Every 3HAC029034-004 dispatched from our inventory is individually tested for winding resistance, insulation integrity, encoder or resolver signal output, and mechanical rotation smoothness. A test record is available upon request. All units are covered by a support terms confirmed by quotation from the date of dispatch.

Q: What is the typical lead time and are units available from stock?
A: The 3HAC029034-004 is maintained availability confirmed by RFQ for immediate dispatch. Orders confirmed before the daily cut-off are typically shipped same day or next business day. For urgent requirements or bulk procurement, contact our sales team directly to confirm current inventory levels and expedited shipping options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3HAC029034-004
IRC5 Series

Product Family

Servo Systems

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Motion range

Servo drives, motors and cable sets

Common needs

Power, encoder and brake confirmation

Project support

Motion upgrade and spare-part supply

Inquiry Support

• Motor, drive and cable set coordination
• Power rating and encoder type checking
• Motion control replacement support

What to Send Us

• Brand and exact model number: ABB 3HAC029034-004
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
