ABB 3HAC028861-001 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3HAC028861-001 Maintenance-Proven Spare Part for Factory Uptime

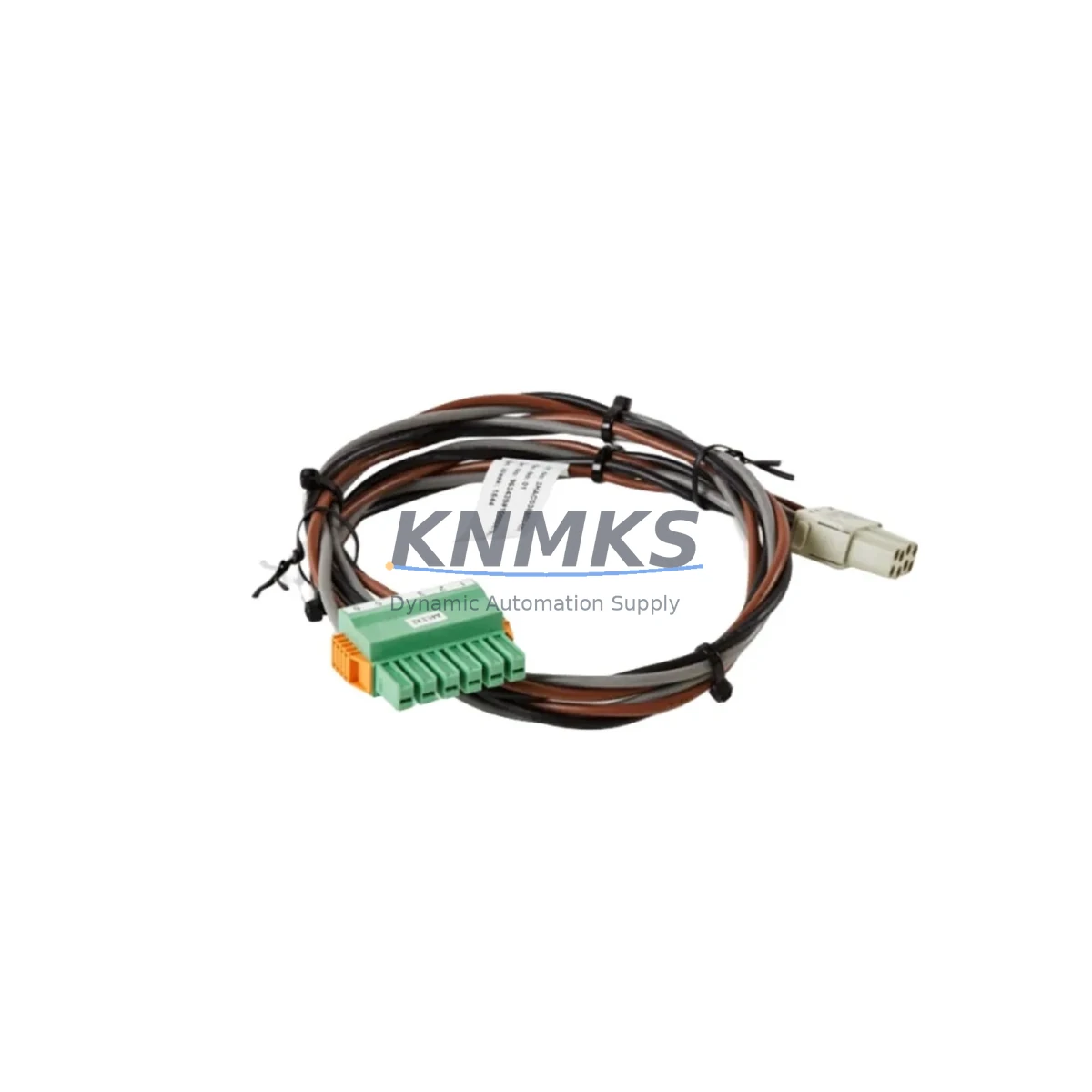

The ABB 3HAC028861-001 is an original harness drive unit cable assembly engineered for ABB IRB6600 series industrial robots. As a critical interconnect component within the robot’s drive system, this harness ensures reliable signal and power transmission between the drive unit and the robot’s axis motors. Sourced directly from ABB’s authorized supply chain, each unit is verified for OEM specification compliance before dispatch. Whether you are managing a scheduled annual overhaul, responding to an unplanned fault alarm, or building a proactive spare parts buffer for your production line, the 3HAC028861-001 is a maintenance-proven solution that minimizes downtime risk and keeps your IRB6600 robots operating at full capacity.

Maintenance engineers working with ABB IRB6600 installations — including the IRB6600-175/2.55, IRB6600-200/2.75, and IRB6600-235/2.55 variants — recognize the harness drive unit as a wear-sensitive component that should be inspected during every major service interval. Insulation degradation, connector pin corrosion, and mechanical fatigue from repeated axis cycling are the primary failure modes. Stocking the 3HAC028861-001 as a ready-to-install spare eliminates the lead time risk associated with emergency procurement and ensures your maintenance team can execute a same-shift replacement when a fault is detected.

This part is also confirmed compatible as a direct replacement for the superseded ABB part number 3HAC058803-001, making it suitable for both current-generation IRB6600 installations and legacy systems still running on earlier controller revisions. All units are dispatched with full inspection documentation and are covered by a support terms confirmed by quotation from the date of shipment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3HAC028861-001 harness drive unit on an IRB6600 robot, a thorough maintenance engineer will treat the intervention as an opportunity to audit the surrounding electrical and mechanical subsystems. The IRC5 drive module — which the harness directly interfaces with — should be inspected for capacitor aging, cooling fan condition, and any active fault logs stored in the controller’s event log. If the harness failure was preceded by intermittent axis errors or overcurrent alarms, the corresponding ABB DSQC series drive board may also require evaluation.

The robot’s axis computer and the SMB (Serial Measurement Board) are closely coupled to the harness signal path. A degraded harness can generate resolver feedback errors that are misdiagnosed as encoder or SMB faults. Confirming harness integrity before replacing the SMB unit saves both time and cost. Similarly, the teach pendant cable and FlexPendant connection should be checked for continuity if communication faults accompanied the harness failure.

On the power supply side, the ABB DSQC661 or DSQC662 power distribution board within the IRC5 cabinet should be verified for correct output voltages after harness replacement. Loose terminal blocks on the X1 and X2 connector rows are a common secondary fault source. Inspect all 24VDC logic supply rails and confirm that the system I/O board — typically a DSQC652 or DSQC651 — is receiving stable power before returning the robot to automatic mode.

For installations where the IRB6600 operates in a welding or foundry environment, the harness routing path should be inspected for heat sleeve integrity and cable tie condition. Replacing the harness is also an appropriate moment to audit the robot’s axis brake resistor wiring and confirm that the safety relay module within the controller cabinet is functioning correctly. Proactive replacement of the 3HAC028861-001 during a planned shutdown — rather than waiting for a fault-triggered emergency — is the most cost-effective maintenance strategy for high-utilization IRB6600 cells.

Site Replacement Workflow

Replacing the 3HAC028861-001 harness drive unit on an IRB6600 robot follows a structured procedure to ensure system compatibility and minimize return-to-service time:

1. Pre-Replacement Verification: Confirm the replacement part number against the robot’s spare parts manual (3HAC028861-001 or legacy 3HAC058803-001). Cross-reference the robot’s serial number and build date to confirm controller revision compatibility. Download and review the current fault log from the IRC5 FlexPendant before powering down.

2. Safe Isolation: Execute a controlled shutdown via the IRC5 main switch. Apply LOTO (Lockout/Tagout) to the cabinet. Allow the drive capacitors a minimum of 5 minutes to discharge before opening the drive unit compartment.

3. Harness Removal and Installation: Photograph the existing harness routing and connector positions before disconnection. Remove connectors in sequence, noting any signs of heat damage, pin corrosion, or insulation cracking on the outgoing unit. Route the new 3HAC028861-001 following the original cable path, securing all tie points and ensuring no contact with moving axis components.

4. Post-Installation Commissioning: Power up the IRC5 controller and confirm no new fault codes are generated. Run the robot through a full axis calibration check and verify resolver feedback values are within specification. Log the replacement in the robot’s maintenance record with the new part serial number and support terms start date.

5. Return to Production: Execute a supervised test cycle at reduced speed before returning the robot to full automatic operation. Confirm with the production supervisor that cycle time and path accuracy meet pre-fault benchmarks.

Spare Parts Support FAQ

Q: Is the 3HAC028861-001 a direct drop-in replacement for the 3HAC058803-001?
A: Yes. The 3HAC028861-001 is the current ABB part number that supersedes 3HAC058803-001. It is a direct functional and dimensional replacement and requires no modification to the robot’s wiring or controller configuration.

Q: What is the recommended stock quantity for a facility operating multiple IRB6600 robots?
A: Industry best practice for high-utilization robotic cells is to maintain a minimum of one harness drive unit per three IRB6600 robots in operation. For facilities running 24/7 production schedules, a one-to-one spare ratio is recommended to eliminate any risk of extended downtime during an unplanned failure event.

Q: How is each unit tested before shipment?
A: Every 3HAC028861-001 unit undergoes visual inspection for connector integrity, insulation condition, and cable continuity verification prior to packaging. Units are dispatched with an inspection record. The support terms confirmed by quotation cover defects in materials and workmanship from the date of shipment.

Q: Can you support long-term supply agreements for this part number?
A: Yes. KNMKS supports scheduled procurement programs for maintenance teams managing large IRB6600 fleets or multi-site installations. Contact our team at [email protected] to discuss volume pricing, lead time commitments, and consignment stock arrangements tailored to your annual maintenance plan.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
