ABB 3HAC026787-004 Migration-Ready Power Cable for IRC5

Overview

ABB 3HAC026787-004 Migration-Ready Power Cable for IRC5 Legacy Control Systems

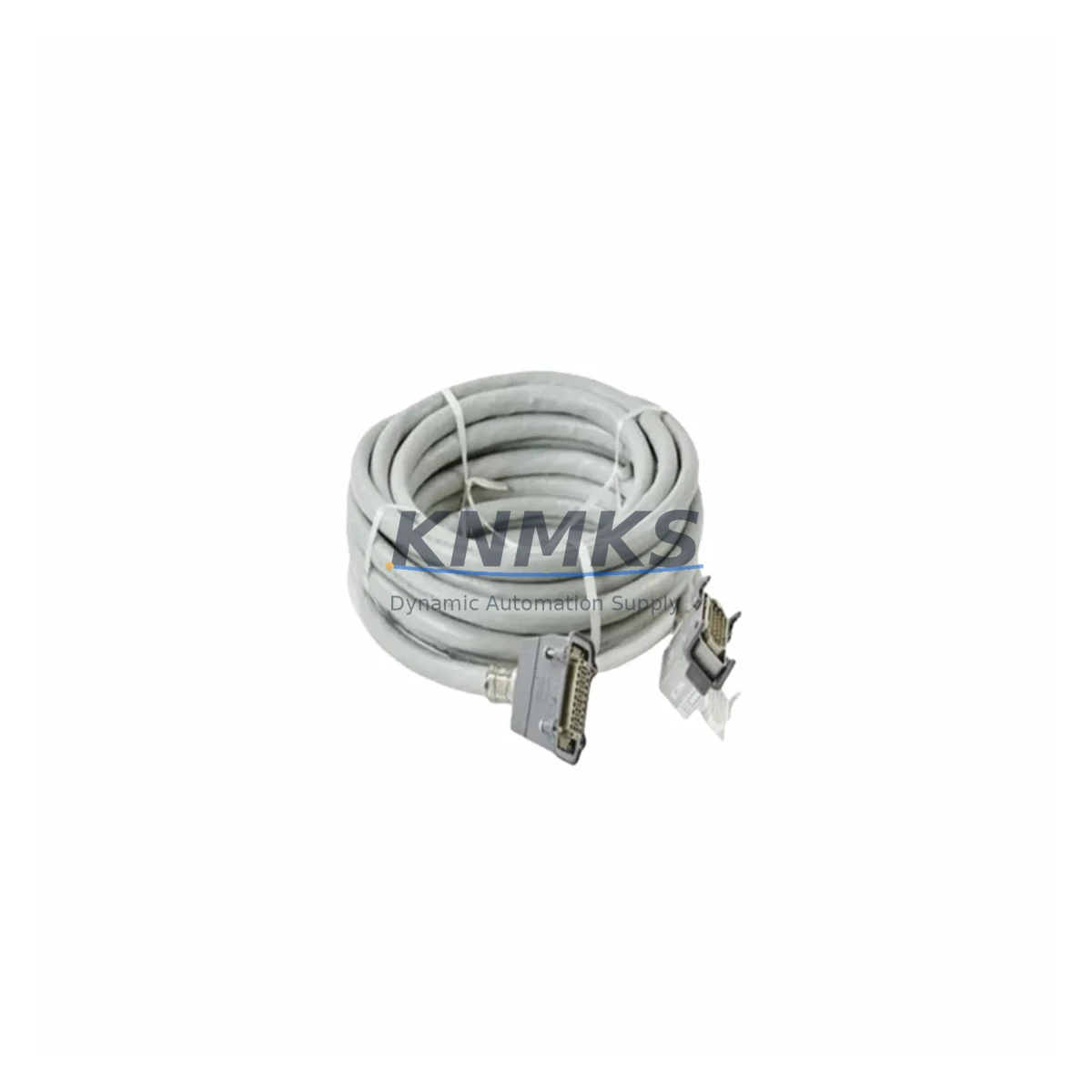

The ABB 3HAC026787-004 is a migration-ready motor power cable engineered for IRC5 robot controller systems. As ABB progressively phases out legacy IRC5 spare parts, engineering teams managing aging robot cells face increasing pressure to source verified, drop-in replacement cables that maintain full electrical compatibility without requiring controller reprogramming or mechanical rework. The 3HAC026787-004 addresses this need directly — it is a pre-tested, OEM-specification power cable designed to restore robot motion control continuity during scheduled maintenance windows, emergency breakdowns, and planned system upgrades.

This cable connects the IRC5 drive module to the robot manipulator’s motor axis, carrying high-current motor drive signals across the full operating cycle. Correct cable selection is critical: mismatched connector pinouts, incorrect shielding, or undersized conductor cross-sections can trigger drive fault codes, axis position errors, or — in worst cases — motor winding damage. The 3HAC026787-004 is sourced to OEM specification, ensuring that connector housings, pin assignments, cable length, shielding topology, and insulation ratings match the original ABB factory configuration for IRC5 installations.

When planning a cable replacement on an IRC5 system, engineers should verify the following before installation: the drive module bay assignment (M1–M6 axis mapping), the existing cable routing path through the cable management tray, the connector locking mechanism condition on both the drive module and the manipulator base, and the current firmware version running on the IRC5 main computer (DSQC 639 or DSQC 1000 variants may have different diagnostic behaviors). After cable swap, a motor calibration check via RobotStudio or the FlexPendant teach pendant is recommended to confirm axis reference integrity.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IRC5 cable retrofit requires more than a direct cable swap. Engineering teams should approach the replacement as part of a broader cable management audit. In many aging IRC5 installations, the 3HAC026787-004 motor power cable is routed alongside the SMB (Serial Measurement Board) cable — typically the ABB 3HAC031683-001 — which carries encoder feedback signals from the manipulator’s resolver board back to the IRC5 drive system. If the SMB cable shows signs of insulation fatigue or connector wear, it is best practice to replace both cables simultaneously to avoid a second unplanned shutdown.

The IRC5 drive module itself — the DSQC 668 or DSQC 669 axis computer — should be inspected for capacitor aging and fan condition during any cable replacement window. If the drive module is approaching end-of-life, sourcing a replacement drive module in parallel with the 3HAC026787-004 cable ensures that the next maintenance window can address both components without additional lead time delays.

For robot cells running DeviceNet or PROFIBUS fieldbus communication between the IRC5 controller and peripheral PLCs, the fieldbus adapter card — such as the DSQC 652 DeviceNet adapter or DSQC 656 PROFIBUS adapter — should be confirmed operational before the cable replacement window closes. Communication faults introduced by a loose fieldbus connector during cable routing work can be misdiagnosed as drive faults if not isolated early in the commissioning sequence.

Where the IRC5 cabinet houses a panel-mounted FlexPendant interface, the teach pendant cable — ABB 3HAC028357-001 — should also be inspected for jacket cracking, particularly in high-cycle environments where the pendant is frequently repositioned. A degraded pendant cable can introduce intermittent E-stop faults that complicate post-replacement commissioning. Finally, if the robot cell includes an external axis drive (positioner or track), the corresponding external axis power cable routing should be verified to ensure it was not disturbed during the main axis cable replacement.

Downtime Control During System Migration

Minimizing downtime during an IRC5 cable replacement begins with pre-staging. Before the maintenance window opens, the replacement 3HAC026787-004 cable should be physically verified against the installed cable — confirming overall length, connector housing color coding, and cable diameter — to eliminate any last-minute compatibility questions on the shop floor. A pre-staged cable that has already passed continuity and insulation resistance testing (available with every unit shipped from KNMKS stock) eliminates the need for on-site incoming inspection.

The IRC5 controller should be powered down following the standard ABB shutdown sequence: disable motor power via the main switch, wait for the drive capacitors to discharge (minimum 5 minutes), then disconnect the cable at both ends — drive module first, manipulator base second. This sequence protects the drive module input stage from transient voltage spikes during disconnection.

After the new 3HAC026787-004 is installed and connectors are locked, power the IRC5 back up in manual mode and run a slow-speed axis jog test on the affected axis before returning to automatic production mode. If the IRC5 event log shows any axis position deviation or motor current anomaly during the jog test, perform a fine calibration update via the FlexPendant calibration routine before resuming production. This structured commissioning sequence typically adds less than 30 minutes to the replacement window and significantly reduces the risk of a repeat shutdown caused by an undetected calibration offset.

For facilities operating multiple IRC5 robot cells, maintaining a minimum of one 3HAC026787-004 cable in on-site emergency stock — alongside the SMB cable and a spare DSQC 668 drive module — is a proven strategy for reducing mean time to repair (MTTR) and protecting production throughput during unplanned cable failures.

Retrofit Support FAQ

Q1: Is the 3HAC026787-004 a direct drop-in replacement for the original ABB cable?
Yes. The 3HAC026787-004 is sourced to OEM specification with matched connector housings, pin assignments, cable length, and shielding. No controller reprogramming or mechanical modification is required for a like-for-like IRC5 replacement.

Q2: What pre-shipment testing is performed on each cable?
Every 3HAC026787-004 unit shipped from KNMKS stock undergoes continuity testing, insulation resistance verification, and connector integrity inspection before dispatch. A test record is available on request.

Q3: How long does delivery take, and is stock available for emergency orders?
KNMKS maintains multi-region stock of the 3HAC026787-004 to support both scheduled maintenance and emergency replacement orders. Standard lead time is 3–7 business days for most regions; expedited dispatch is available for urgent requirements. Contact [email protected] or +86 18359268345 for real-time stock confirmation.

Q4: What support terms is provided, and what does it cover?
All units carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects, connector integrity, and electrical performance under normal operating conditions. Support requests are processed directly through KNMKS with replacement dispatch prioritized to minimize system downtime.
