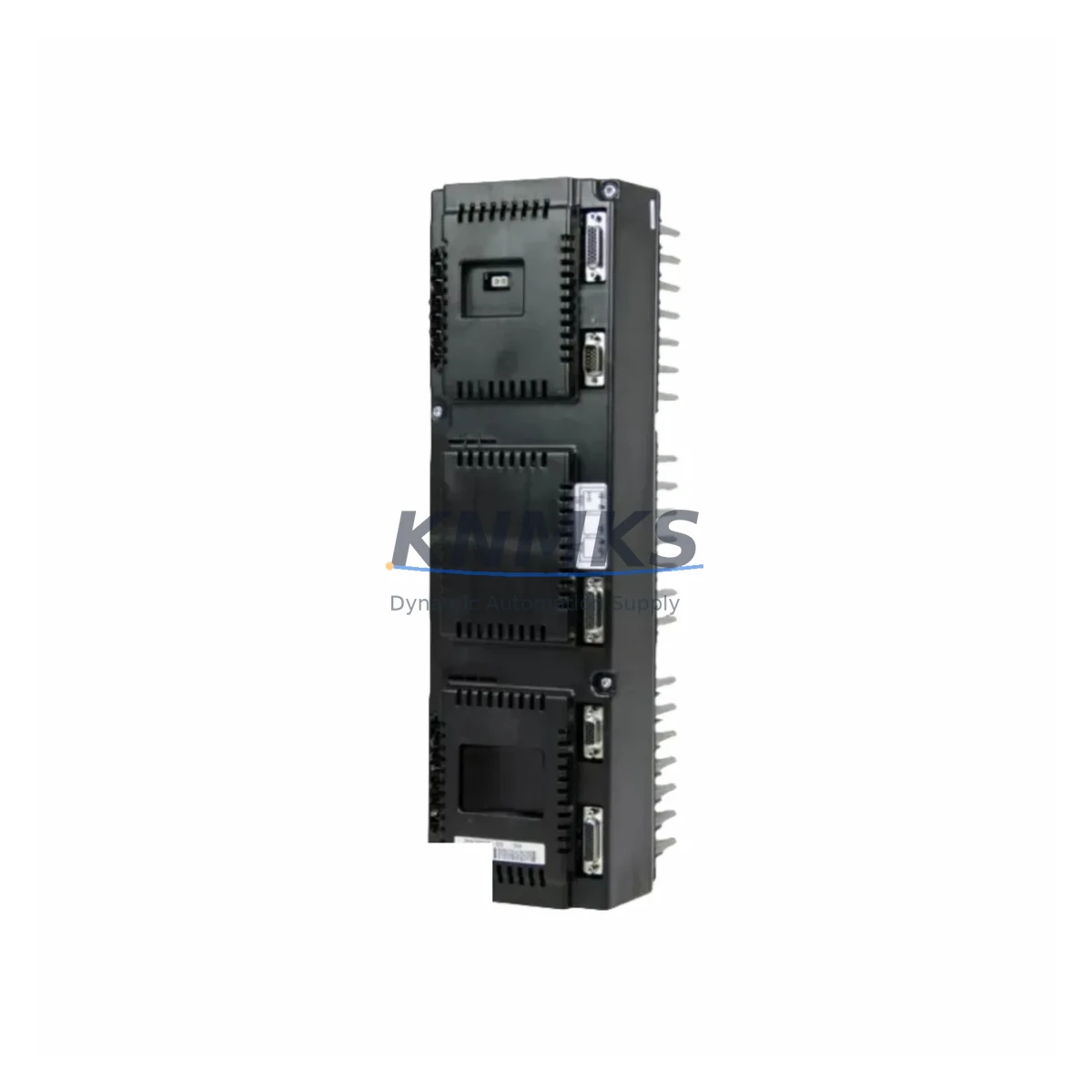

ABB 3HAC025338-003/06C Migration-Ready Servo Drive for Legacy Control Systems

Overview

ABB 3HAC025338-003/06C Migration-Ready Servo Drive for Legacy Control Systems

The ABB 3HAC025338-003/06C is a servo drive module engineered for the IRC5 robot controller platform, widely deployed across automotive, foundry, and general manufacturing automation lines. As ABB progressively phases out legacy IRC5 drive components, maintenance engineers and system integrators face increasing pressure to source verified replacement units that can be installed without re-engineering the surrounding control architecture. This unit is stocked as a migration-ready replacement, pre-shipment tested, and backed by a support terms confirmed by quotation — making it a reliable choice for both emergency breakdown recovery and planned retrofit programs.

The 3HAC025338-003/06C operates within the IRC5 single-cabinet and dual-cabinet configurations, interfacing directly with the IRC5 main computer (DSQC 639 or DSQC 1000 series) via the internal drive bus. Before installation, engineers must confirm the axis configuration in the robot’s parameter file — specifically the drive unit mapping under the Motion topic — to ensure the replacement module is addressed correctly. Incorrect axis addressing is one of the most common causes of commissioning delays during servo drive replacement on IRC5 platforms.

Power supply compatibility is a critical pre-installation checkpoint. The IRC5 drive system operates from a rectified DC bus supplied by the drive system power unit (DSQC 374 or equivalent). Verify that the bus voltage is within the specified operating range before energizing the replacement drive. If the existing power unit shows signs of capacitor aging or voltage ripple, it is advisable to replace it concurrently to avoid premature failure of the new servo drive module.

Terminal wiring on the 3HAC025338-003/06C follows the standard IRC5 motor cable pinout. Confirm motor cable connector orientation and resolver or encoder feedback wiring before power-on. On older IRC5 installations, cable insulation degradation is common — inspect the motor power cable and the measurement board (DSQC 646) connections before completing the swap. The measurement board handles resolver signal conditioning and must be functioning correctly for the drive to complete its self-test sequence.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IRC5 servo drive retrofit requires a structured approach that accounts for the interdependencies between the drive module, the robot controller, and the surrounding automation infrastructure. When replacing the 3HAC025338-003/06C in a multi-axis IRC5 cell, begin by documenting the current axis configuration using RobotStudio or the IRC5 FlexPendant — export the system parameters before any hardware is disturbed. This backup is essential for restoring the robot’s motion profile after the drive swap.

The IRC5 controller backplane accommodates multiple drive modules in a shared DC bus architecture. If the system includes additional axes — for example, a positioner or track motion axis — verify that the replacement drive does not conflict with the address assignments of adjacent modules such as the DSQC 668 or DSQC 669 drive units. In multi-drive configurations, bus termination and drive sequencing must be preserved exactly as documented in the original system layout.

For cells integrating external PLCs or safety systems via DeviceNet or Profibus, confirm that the drive replacement does not affect the safety circuit continuity. The IRC5 safety board (DSQC 400 series) monitors drive status signals — a newly installed drive module must pass the controller’s internal self-test before the safety chain will close and allow robot motion. Plan for a supervised power-on sequence with the safety system in a known state.

If the retrofit is part of a broader control cabinet upgrade — for instance, migrating from an older S4C+ platform to IRC5 — additional considerations apply. The DSQC 639 main computer, the panel unit, and the I/O system (DSQC 652 digital I/O modules) may all require reconfiguration to align with the new drive hardware. HMI screens built on the FlexPendant will need to be validated against the updated system parameters to ensure that axis naming, speed limits, and zone definitions remain consistent with the physical installation.

Signal isolators may be required at the interface between the IRC5 I/O system and legacy field devices that operate at non-standard voltage levels. Confirm signal compatibility before connecting field wiring to avoid damage to the new drive module or the IRC5 I/O boards.

Downtime Control During System Migration

Minimizing unplanned downtime during a servo drive replacement on an IRC5 robot requires preparation that begins well before the maintenance window opens. The most effective strategy is to pre-stage the replacement 3HAC025338-003/06C unit alongside a verified backup of the robot’s system parameters, so that the swap can be completed within a single planned shift.

Before powering down the IRC5 controller, use the FlexPendant to perform a controlled program stop — do not interrupt the controller mid-cycle, as this can leave the program pointer in an undefined state that complicates restart. After the drive is replaced and the controller is powered on, the IRC5 will perform an automatic drive self-test. Monitor the event log on the FlexPendant for any drive-related fault codes (event 50xxx series) that may indicate wiring issues or parameter mismatches.

Resolver offset calibration — performed using the IRC5 calibration routine — should be completed before returning the robot to production. Skipping this step can result in positional errors that accumulate over time and may cause the robot to exceed its working envelope, triggering safety stops. If the original calibration data is stored in the system backup, the calibration process is straightforward and typically adds less than 30 minutes to the total maintenance window.

For critical production lines where even a single shift of downtime is unacceptable, consider maintaining a pre-configured spare IRC5 drive module on-site. Our stocked 3HAC025338-003/06C units are pre-shipment tested and ready for immediate installation, reducing the risk of receiving a unit that requires additional commissioning time. Combined with a documented swap procedure and a trained maintenance team, this approach can reduce total drive replacement time to under two hours.

Retrofit Support FAQ

Q: Is the 3HAC025338-003/06C a direct drop-in replacement for earlier /06A and /06B revisions?
A: In most IRC5 configurations, yes. The /06C revision is backward compatible with earlier /06A and /06B variants at the mechanical and electrical interface level. However, we recommend verifying the axis parameter file in the IRC5 Motion configuration after installation to confirm that the drive address and motor type assignments are correct for your specific robot model and axis count.

Q: What pre-shipment testing is performed on this unit?
A: Each 3HAC025338-003/06C unit undergoes functional testing and load simulation before dispatch. Test results confirm that the drive responds correctly to command inputs, that feedback signal processing is within specification, and that no fault codes are generated during the test cycle. A support terms confirmed by quotation is included with every unit.

Q: How do I confirm wiring compatibility before installation?
A: Refer to the IRC5 Product Manual (document 3HAC021313-001) for the motor cable and resolver wiring diagrams applicable to your robot model. Confirm that the motor power connector, the resolver connector, and the brake connector pinouts match the replacement drive’s interface. If your installation uses a non-standard cable assembly, contact our technical team before proceeding.

Q: What is your stock availability and lead time?
A: The 3HAC025338-003/06C is held in multi-region stock and is available for immediate dispatch. Standard global shipping lead times apply. For urgent breakdown situations, expedited dispatch options are available — contact us directly to confirm current stock levels and shipping timelines.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3HAC025338-003/06C
IRC5 Series

Product Family

Servo Systems

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Motion range

Servo drives, motors and cable sets

Common needs

Power, encoder and brake confirmation

Project support

Motion upgrade and spare-part supply

Inquiry Support

• Motor, drive and cable set coordination
• Power rating and encoder type checking
• Motion control replacement support

What to Send Us

• Brand and exact model number: ABB 3HAC025338-003/06C
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
