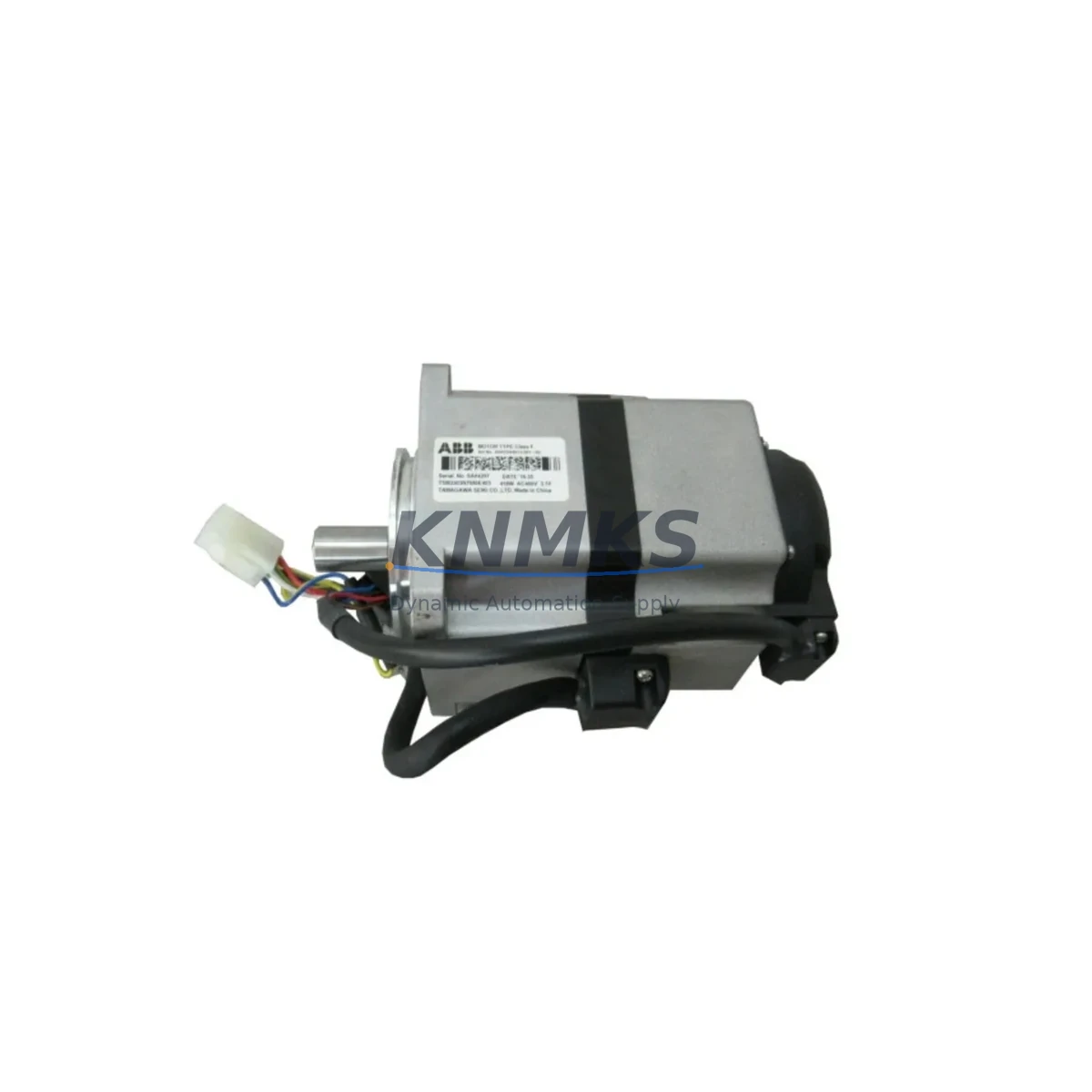

ABB 3HAC024779-003 Fail-Safe Servo Motor for Industrial Control

Overview

ABB 3HAC024779-003 Fail-Safe Servo Motor for Industrial Control Reliability

The ABB 3HAC024779-003 is a precision-engineered servo motor module designed for the ABB IRB 7600 series industrial robot, one of the most demanding heavy-payload robotic platforms deployed in automotive body shops, foundries, metal stamping lines, and continuous process manufacturing. In environments where unplanned downtime translates directly into production loss and safety risk, the 3HAC024779-003 delivers the fail-safe motion control performance that critical installations demand.

Engineered to ABB’s stringent robotics quality standards, this servo motor is built to sustain reliable axis control under high-cycle, high-torque operating conditions. Its robust construction addresses the core failure modes that plague servo drives in harsh industrial environments: signal drift caused by electromagnetic interference, insulation degradation from thermal cycling, bearing fatigue from continuous vibration, and connector corrosion in humid or dusty enclosures. Each unit supplied by KNMKS undergoes pre-shipment functional testing to verify torque response, encoder signal integrity, and thermal performance before dispatch.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable servo motor performance in heavy industrial applications is never the result of a single component — it depends on a coordinated protection architecture within the control cabinet and across the safety circuit. The ABB 3HAC024779-003 operates as part of the IRB 7600’s axis control chain, working in conjunction with the ABB DSQC 661 drive unit and the ABB DSQC 679 main computer board, which together manage motion trajectory, safety supervision, and real-time axis feedback. Any degradation in the servo motor’s encoder signal is immediately detected by the drive system, triggering a controlled stop rather than an uncontrolled axis runaway — a critical fail-safe behavior in high-payload robotic cells.

Power quality is equally important. Voltage transients and harmonic distortion from heavy machinery on the same supply bus can stress servo motor windings and shorten insulation life. Installing an ABB UPS module or a dedicated line reactor upstream of the robot controller’s power supply helps buffer these disturbances. Within the cabinet, the ABB DSQC 604 power supply unit regulates the 24VDC logic rail that feeds encoder interfaces and safety I/O, ensuring that signal integrity is maintained even during mains fluctuations.

For safety circuit integrity, the robot’s emergency stop and safeguarding inputs are typically routed through a dedicated safety relay module — such as the ABB JSHD4 safety board — which monitors the axis enable chain and prevents motion commands from reaching the servo drives unless all safety conditions are satisfied. This architecture ensures that a fault in any single component, including the servo motor itself, results in a safe, controlled shutdown rather than a hazardous uncontrolled movement. Complementing this, the ABB DSQC 643 I/O module manages field-level digital signals, providing the communication backbone between the robot controller and external safety PLCs or interlock systems on the production line.

Critical Industrial Safety Applications

The ABB 3HAC024779-003 servo motor is deployed across some of the most demanding industrial environments where motion control reliability is directly linked to personnel safety and production continuity:

Automotive Manufacturing: In body-in-white welding and press-tending cells, the IRB 7600 handles payloads exceeding 500 kg at high cycle rates. A servo motor failure in this context does not merely halt production — it can create a collision hazard with adjacent tooling or conveyors. The 3HAC024779-003’s robust construction and pre-tested reliability make it the preferred replacement choice for maintenance teams managing planned and unplanned outages.

Foundry and Metal Processing: Foundry environments expose robotic systems to extreme thermal cycling, metal splash, and airborne particulates. The IP65-rated enclosure and Class F insulation of the 3HAC024779-003 provide the environmental resilience needed to sustain reliable operation in die-casting extraction, ladle handling, and ingot stacking applications.

Mining and Heavy Material Handling: In underground and surface mining operations, robotic systems are increasingly used for drilling, rock breaking, and material transfer. High vibration, dust ingress, and wide temperature swings demand servo components with proven environmental robustness. The 3HAC024779-003’s shielded winding design and sealed bearing arrangement address these challenges directly.

Port and Shipyard Automation: Container handling and heavy-lift robotic systems in port environments face salt-laden air, humidity, and continuous duty cycles. Servo motor reliability in these applications is critical to maintaining throughput and avoiding costly crane or gantry downtime.

Petrochemical and Process Industries: In hazardous area robotic applications — including inspection, valve actuation, and material transfer in refineries and chemical plants — the fail-safe behavior of the servo axis control system is a fundamental safety requirement. The 3HAC024779-003 supports the controlled-stop architecture that these safety-critical applications demand.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the ABB 3HAC024779-003?
The support terms confirmed by quotation cover all parts and workmanship defects identified under normal operating conditions consistent with the module’s rated specifications. This includes encoder failure, winding insulation breakdown, and bearing defects attributable to manufacturing quality. Support requests are supported by KNMKS’s technical team with replacement dispatch or repair coordination.

Q2: What pre-shipment testing is performed on each unit?
Every ABB 3HAC024779-003 unit dispatched by KNMKS undergoes a full functional test protocol covering torque response verification, absolute encoder signal integrity check, insulation resistance measurement, and thermal performance assessment under load. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 3HAC024779-003 compatible with all IRB 7600 variants?
The 3HAC024779-003 is designed for the ABB IRB 7600 series. Compatibility depends on the specific axis position and robot variant (IRB 7600-150/3.5, 325/3.1, 500/2.55, etc.). KNMKS’s technical team can confirm axis-specific compatibility based on your robot’s serial number and configuration before order confirmation.

Q4: Can KNMKS support long-term supply for ongoing maintenance programs?
Yes. KNMKS maintains buffer stock of high-demand ABB IRB 7600 spare parts, including the 3HAC024779-003, to support planned maintenance schedules and emergency breakdown requirements. Long-term supply agreements with defined lead times and pricing are available for facilities managing multi-robot installations or extended service contracts.
