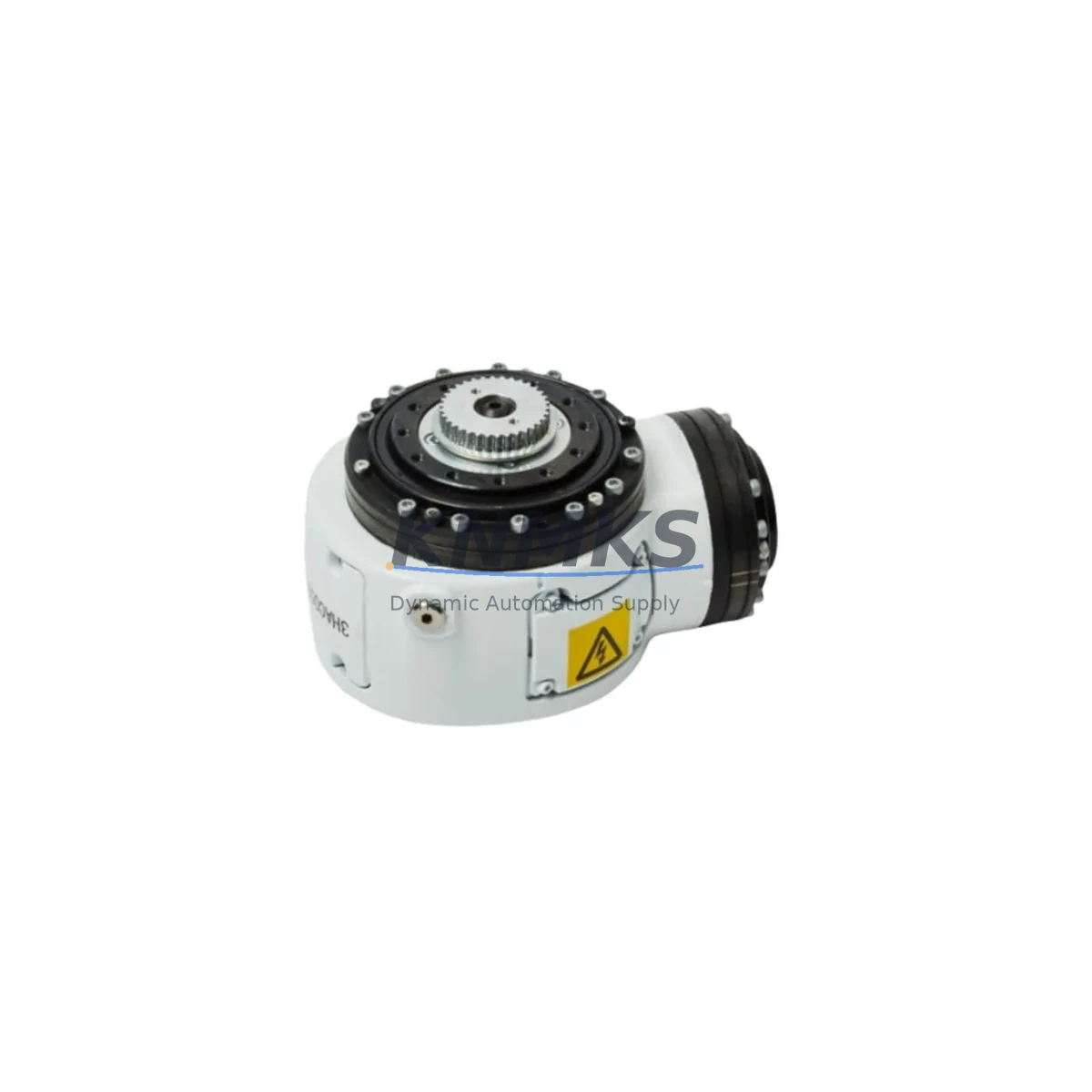

ABB 3HAC023854-001 Migration-Ready Servo Drive for IRB4400

Overview

ABB 3HAC023854-001 Migration-Ready Servo Drive for IRB4400: Legacy System Retrofit & Compatibility Upgrade

The ABB 3HAC023854-001 is a migration-ready servo drive unit engineered for Axis 5 and Axis 6 on the ABB IRB4400 industrial robot platform. As a verified direct replacement for the discontinued 3HAC5954-1, this module addresses one of the most critical pain points in legacy robot system maintenance: sourcing a compatible, field-tested servo drive that can be installed without reprogramming the entire motion controller or reconfiguring the robot’s teach pendant. Whether you are managing a long-running automotive body shop line, a foundry palletizing cell, or a general-purpose arc welding station, the 3HAC023854-001 provides a reliable path to restoring full axis functionality with minimal downtime and maximum confidence.

The IRB4400 platform, introduced in the mid-1990s and widely deployed through the 2000s, remains operational in thousands of facilities worldwide. Its S4C and S4C+ controller cabinets — built around the DSQC 500-series drive system — are no longer in active production, making spare parts sourcing increasingly difficult. The 3HAC023854-001 is specifically designed to slot into this ecosystem, maintaining electrical compatibility with the existing drive bus, preserving the original axis calibration data stored in the SMB (Serial Measurement Board), and supporting the firmware versions commonly found in S4C+ installations. Before installation, engineers should verify the drive bus voltage (typically 540 VDC on the IRB4400 drive unit), confirm the connector pinout against the existing 3HAC5954-1 wiring harness, and check that the robot’s system parameters — particularly the motor type and gear ratio settings in the configuration files — remain unchanged.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 3HAC023854-001 into an active production environment requires careful pre-installation planning across several interdependent subsystems. The servo drive does not operate in isolation — it communicates with the DSQC 508 or DSQC 509 axis computer board over the internal drive bus, receives motion commands from the main computer (typically a DSQC 560 or DSQC 563 CPU board), and reports encoder feedback through the SMB unit mounted on the robot arm. Before pulling the failed unit, maintenance engineers should document the current axis position data, back up the robot system configuration using the FlexPendant or RobotStudio, and confirm that the DSQC 346 I/O board and any connected fieldbus adapters (such as a DSQC 352 DeviceNet or DSQC 378 Profibus module) are functioning correctly — a faulty I/O module can produce fault codes that mimic servo drive failure.

On the mechanical side, confirm that the installation bay is clear of debris and that the backplane connector on the drive rack is undamaged. The 3HAC023854-001 uses the same mounting rail and locking mechanism as the 3HAC5954-1, so no bracket modification is needed. However, if the robot cabinet has been retrofitted with a third-party power supply or a non-standard rectifier unit, verify that the DC bus voltage is within the specified range before energizing the new drive. Torque the terminal screws to the values specified in the IRB4400 product manual to avoid intermittent contact faults during high-cycle operation.

For facilities running multiple IRB4400 units on the same production line, it is advisable to maintain at least one 3HAC023854-001 as a cold-standby spare alongside other critical consumables such as the SMB battery pack, the teach pendant cable assembly, and the axis 1–4 drive unit (3HAC025338-001). This spare-parts strategy, combined with a documented swap procedure, can reduce unplanned downtime from several days to under four hours per incident.

Downtime Control During System Migration

Minimizing production interruption during a servo drive replacement on the IRB4400 begins with preparation, not execution. The actual physical swap of the 3HAC023854-001 typically takes 30 to 60 minutes for a trained technician; the majority of downtime risk comes from post-installation verification steps that are skipped or rushed under production pressure.

The recommended sequence is: (1) perform a controlled robot stop and lock out the cabinet per local LOTO procedures; (2) record the current joint positions from the FlexPendant; (3) remove the failed 3HAC5954-1 and install the 3HAC023854-001 into the same bay; (4) power up the cabinet and allow the drive bus to initialize — the S4C+ controller will automatically detect the new drive and run a self-test sequence; (5) verify that no axis fault codes remain on the FlexPendant; (6) run a slow-speed jog cycle on Axis 5 and Axis 6 to confirm smooth motion and correct direction; (7) execute a fine calibration check using the calibration pin method if the SMB data was disrupted during the swap; and (8) run a full production cycle at reduced speed before returning to normal throughput.

Preserving the original program logic is straightforward because the 3HAC023854-001 does not require any changes to the RAPID program, the system parameters, or the I/O configuration. The robot’s motion paths, speed profiles, zone data, and tool center point (TCP) definitions remain intact. If the facility uses an external PLC or SCADA system to sequence the robot — for example, a Siemens S7-300 or an Allen-Bradley ControlLogix communicating over DeviceNet — no changes to the PLC ladder logic or HMI screen configurations are required, as the robot’s external interface signals are handled by the DSQC 346 I/O board, which is unaffected by the drive replacement.

Retrofit Support FAQ

Q1: Is the 3HAC023854-001 a direct drop-in replacement for the 3HAC5954-1?
Yes. The 3HAC023854-001 is the verified successor to the discontinued 3HAC5954-1 for ABB IRB4400 Axis 5 and Axis 6 applications. It uses the same backplane connector, occupies the same drive bay, and is compatible with the S4C and S4C+ controller firmware. No wiring modifications or parameter changes are required for a standard replacement.

Q2: Will I need to recalibrate the robot after installing the 3HAC023854-001?
In most cases, no. The IRB4400 stores axis calibration data on the Serial Measurement Board (SMB), which is mounted on the robot arm and is not affected by the drive replacement. As long as the SMB is intact and the robot has not been mechanically disturbed, the existing calibration data will be read automatically on startup. A verification jog and fine calibration check are recommended as a precaution.

Q3: What pre-shipment testing is performed on the 3HAC023854-001?
Each unit undergoes functional testing prior to dispatch, including drive bus communication verification, output stage integrity checks, and thermal cycling. Units are shipped with test records available on request. All units are covered by a support terms confirmed by quotation from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical lead time and stock availability?
The 3HAC023854-001 is maintained availability confirmed by RFQ to support urgent replacement requirements. Standard orders are processed and dispatched within 1–3 business days. For large-quantity orders or multi-unit spare parts programs, please contact our sales team to confirm availability and arrange priority allocation. Stock levels are monitored continuously to support support terms confirmed by quotation-backed supply commitments.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3HAC023854-001 3HAC5954-1 IRB4400 3HAC056146-001
IRC5 Series

Product Family

Servo Systems

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Motion range

Servo drives, motors and cable sets

Common needs

Power, encoder and brake confirmation

Project support

Motion upgrade and spare-part supply

Inquiry Support

• Motor, drive and cable set coordination
• Power rating and encoder type checking
• Motion control replacement support

What to Send Us

• Brand and exact model number: ABB 3HAC023854-001 3HAC5954-1 IRB4400 3HAC056146-001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
