ABB 3HAC0233447-001 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3HAC0233447-001 Maintenance-Proven Spare Part for Factory Uptime

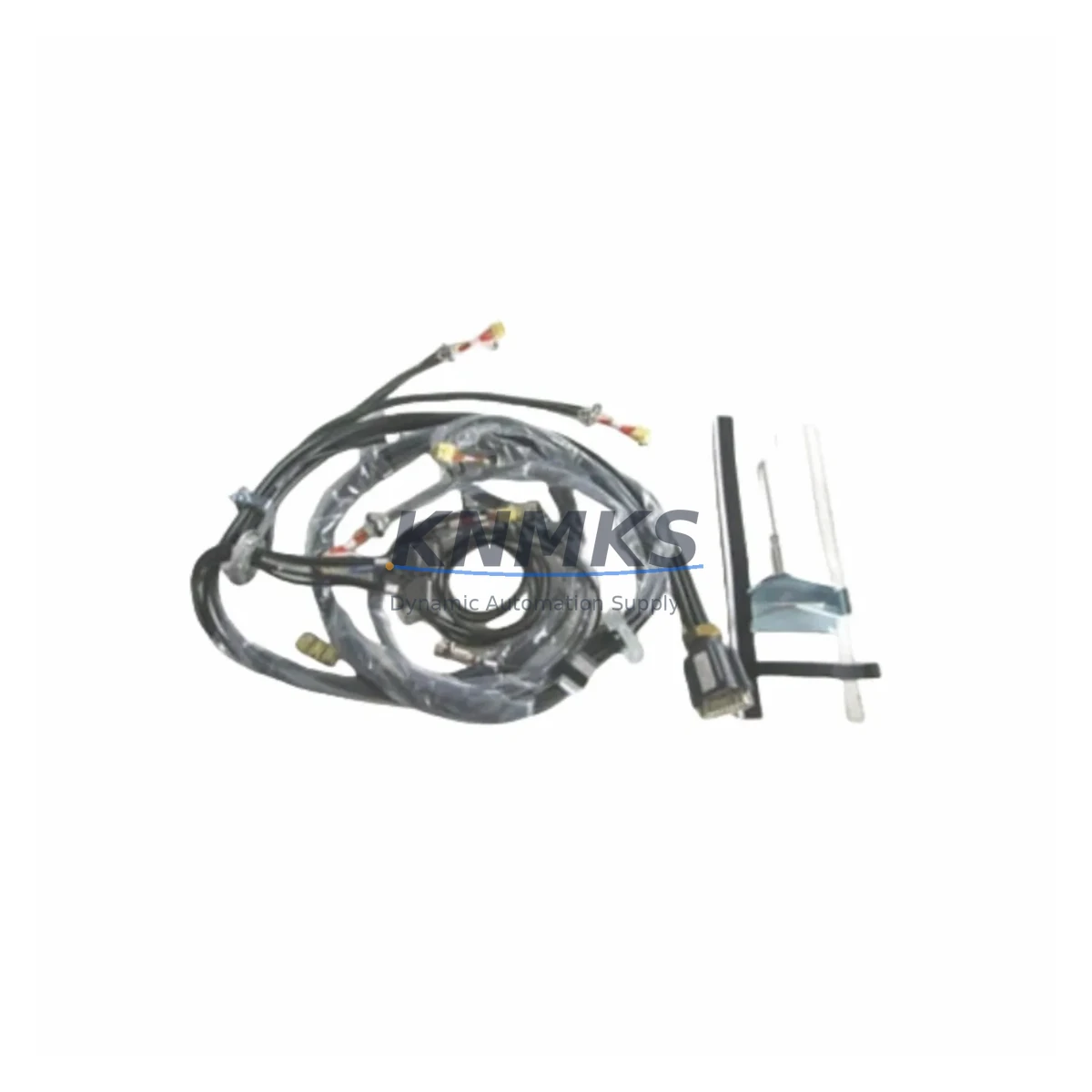

The ABB 3HAC0233447-001 is an original internal cable harness engineered for ABB IRB Series industrial robots. Covering Axis 1 through Axis 6 signal and power routing, this harness is a critical component in maintaining uninterrupted robot motion, precise servo feedback, and safe I/O communication across the manipulator arm. For maintenance engineers managing high-cycle production lines, having a verified spare of the 3HAC0233447-001 on the shelf is a fundamental element of any proactive downtime-reduction strategy.

Whether you are responding to an emergency cable fault, executing a scheduled annual overhaul, or building a forward stock buffer for a multi-robot cell, the 3HAC0233447-001 delivers OEM-grade reliability with full compatibility across the IRB family. Each unit is sourced from authorized supply channels, inspected, and pre-shipment tested before dispatch. A support terms confirmed by quotation is included as standard.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A cable harness failure in an ABB IRB robot typically manifests as axis fault alarms, erratic servo behavior, or intermittent I/O errors — all of which halt production immediately. When replacing the 3HAC0233447-001, a thorough maintenance engineer will not stop at the harness alone. The replacement event is the right moment to inspect the ABB DSQC 661 or DSQC 679 main computer board for firmware integrity and connector seating, since harness faults can sometimes mask upstream controller issues.

Simultaneously, check the ABB IRC5 controller cabinet internal wiring, including the DSQC 608 I/O module connectors and the DSQC 662 axis computer interface. Loose or corroded terminal connections in the cabinet can cause recurring harness stress and premature wear. Inspect the SMB (Serial Measurement Board) — typically the 3HAC14550-2 or equivalent — for resolver signal quality, as a degraded SMB will continue to generate axis errors even after a new harness is installed.

For robots in welding or high-particulate environments, also verify the condition of the teach pendant cable (FlexPendant lead) and the customer I/O terminal strip inside the IRC5 cabinet. These components share the same maintenance window and are frequently overlooked during emergency harness replacements. Including a spare 3HAC17484-1 battery unit in your cabinet stock ensures SMB memory retention is not lost during the power-down cycle required for harness replacement.

Procurement engineers should consider stocking a minimum of one 3HAC0233447-001 per active IRB robot cell, with a recommended 12-month forward buffer for high-utilization lines running two or three shifts. Consolidating harness, SMB, and I/O module spares into a single cabinet-level kit reduces emergency sourcing lead time and simplifies annual maintenance budgeting.

Site Replacement Workflow

Step 1 — Fault Isolation: Retrieve axis fault codes from the IRC5 FlexPendant event log. Codes in the 38xxx or 50xxx range commonly indicate cable harness or resolver signal faults. Document all active alarms before de-energizing.

Step 2 — Lockout / Tagout: De-energize the IRC5 controller and apply LOTO per site safety procedure. Confirm zero-energy state on all six axes before opening the robot base or upper arm covers.

Step 3 — Harness Removal: Follow ABB Product Manual routing diagrams for the specific IRB model. Photograph connector positions and cable routing paths before disconnection. Label all connectors if not already color-coded.

Step 4 — Compatibility Verification: Confirm the replacement 3HAC0233447-001 part number and revision against the robot’s spare parts list in ABB’s documentation. Check that connector keyways and cable lengths match the installed configuration.

Step 5 — Installation and Routing: Route the new harness per ABB torque and bend-radius specifications. Secure all cable clamps and strain reliefs. Reconnect all axis connectors in sequence and verify seating.

Step 6 — Power-Up and Verification: Restore power and run a full axis calibration check from the FlexPendant. Confirm all resolver signals are within tolerance and no fault codes are active. Log the replacement in the robot maintenance record.

This workflow minimizes downtime, preserves system compatibility, and ensures the replacement is documented for future maintenance planning and support terms reference.

Spare Parts Support FAQ

Q1: Is the 3HAC0233447-001 compatible with all IRB Series robots?
The 3HAC0233447-001 is designed for ABB IRB Series robots. Compatibility varies by robot model, payload class, and revision. Always cross-reference the part number against the specific robot’s spare parts catalog or ABB product manual before ordering. Our team can assist with compatibility verification prior to shipment.

Q2: What pre-shipment checks are performed before dispatch?
Every 3HAC0233447-001 unit undergoes continuity testing, insulation resistance measurement, and connector integrity inspection before shipment. Units that do not pass all checks are not dispatched. A support terms confirmed by quotation is provided from the date of shipment.

Q3: How should this spare part be stored for long-term inventory?
Store in original packaging in a dry, temperature-controlled environment away from direct sunlight and electromagnetic sources. Avoid coiling the harness tightly during storage to prevent conductor fatigue. Inspect connectors for oxidation annually if stored beyond 12 months.

Q4: Can you support long-term or blanket purchase orders for this part?
Yes. We support long-term supply agreements and blanket PO arrangements for the 3HAC0233447-001 and related IRB Series spare components. Contact our sales team to discuss volume pricing, scheduled delivery, and multi-site stocking programs tailored to your maintenance calendar.
