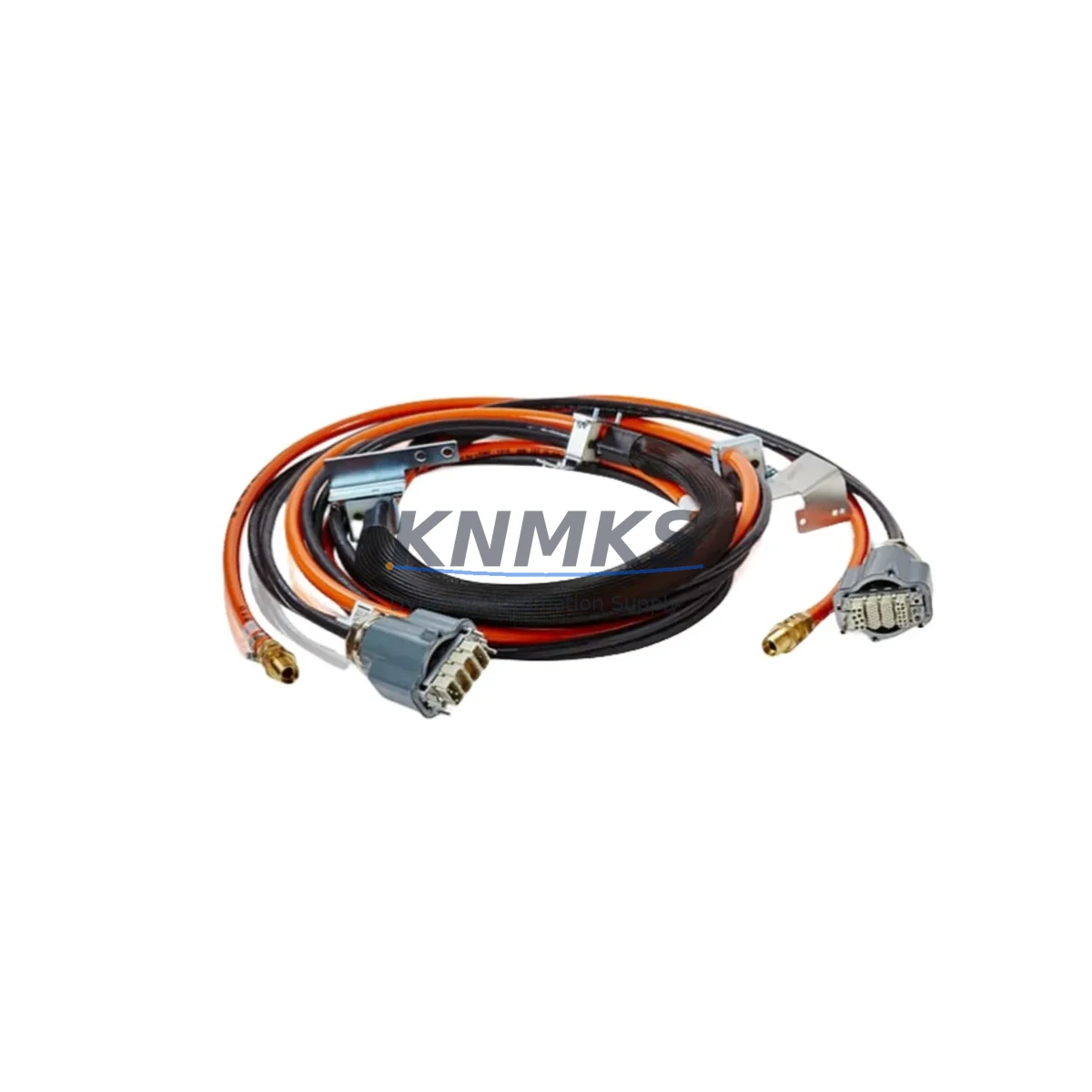

The ABB 3HAC022999-001 is an original OEM lower arm cable harness designed for the ABB IRB6400 and IRB6650 series industrial robots. As a safety-critical wiring assembly routed through the robot’s lower arm structure, this harness carries power, signal, and I/O connections between the robot controller and the manipulator axes. Maintaining a verified spare of the 3HAC022999-001 in your parts inventory is a proven strategy for minimizing unplanned downtime in high-cycle welding, material handling, palletizing, and press-tending applications.

For maintenance engineers managing aging IRB6400 or IRB6650 installations, cable harness degradation is one of the most common root causes of intermittent axis faults, encoder signal loss, and servo drive alarms. Early indicators include recurring joint measurement errors, unexplained axis overload warnings, or visible chafing at the lower arm cable exit point. Replacing the 3HAC022999-001 at the first sign of insulation wear — rather than waiting for a hard fault — is the most cost-effective approach to sustaining robot availability.

Each unit supplied by KNMKS is sourced from verified OEM channels, subjected to pre-shipment electrical continuity and insulation resistance testing, and backed by a support terms confirmed by quotation. We maintain ready stock to support emergency replacement orders with fast global dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a 3HAC022999-001 replacement during planned maintenance or emergency recovery, experienced maintenance engineers treat the cable harness swap as a trigger for a broader lower arm and controller inspection. The following components should be evaluated in the same maintenance window:

• ABB IRC5 Controller I/O Modules (DSQC series) — Verify that axis measurement board signals are clean after harness replacement. A degraded harness can mask underlying I/O board faults that only surface once the wiring is restored.
• Servo Drive Units (DSQC661 / DSQC662) — Inspect drive status LEDs and check for latent overcurrent or encoder fault logs that may have been triggered by the failing harness.
• Axis Computer / Measurement Board (DSQC633) — Confirm resolver and encoder feedback integrity on axes 2 and 3 after harness installation.
• Robot Controller Power Supply Unit — Inspect the 24 VDC and 48 VDC rails for voltage stability; a shorted harness can stress the PSU over time.
• Teach Pendant Cable (IRC5 FlexPendant) — If the robot has been in a fault state, check the FlexPendant connection and cable for damage caused by emergency stops or cable strain.
• Brake Release Unit and Contactor Assembly — Confirm brake release function on axes 2 and 3 post-installation to validate full mechanical and electrical restoration.

For procurement engineers building or refreshing a spare parts inventory for an IRB6400 or IRB6650 fleet, the 3HAC022999-001 should be classified as a critical consumable with a recommended minimum stock of one unit per two robots in continuous operation. Pairing this harness spare with a verified set of DSQC I/O modules and a controller power supply unit creates a comprehensive emergency kit capable of resolving the majority of unplanned downtime events within a single shift.

Site Replacement Workflow

Replacing the ABB 3HAC022999-001 on-site follows a structured procedure to minimize downtime and ensure system compatibility:

1. Controller Shutdown & Lockout/Tagout (LOTO) — Power down the IRC5 controller and apply LOTO before accessing the lower arm cable channel.
2. Document Existing Cable Routing — Photograph the original harness routing path, connector positions, and cable tie locations before removal to ensure identical reinstallation.
3. Remove Old Harness — Disconnect all multi-pin connectors at the base and upper arm termination points. Release cable clamps and carefully extract the harness from the lower arm channel.
4. Install 3HAC022999-001 — Route the new OEM harness through the lower arm channel following the documented path. Secure all cable ties and clamps to OEM torque specifications.
5. Reconnect and Verify — Reconnect all connectors, confirm locking engagement, and restore controller power. Run a full axis calibration check via the FlexPendant.
6. Functional Test — Execute a slow-speed test program covering the full range of motion for axes 2 and 3. Monitor for axis faults, encoder errors, or abnormal current draw before returning the robot to production speed.

This workflow is compatible with both direct OEM replacement and legacy system life-extension scenarios where the original harness has exceeded its service life. The 3HAC022999-001 is a direct fit replacement requiring no modification to existing cable management hardware.

Spare Parts Support FAQ

Q1: Is the 3HAC022999-001 compatible with all IRB6400 and IRB6650 variants?
Yes. The 3HAC022999-001 is the standard lower arm cable harness for the IRB6400 and IRB6650 series across all payload and reach variants. If your robot has undergone a non-standard modification, please share the robot serial number with our team for compatibility confirmation before ordering.

Q2: What pre-shipment testing is performed on each unit?
Every 3HAC022999-001 supplied by KNMKS undergoes electrical continuity testing across all conductors, insulation resistance measurement, and a visual inspection for connector integrity and cable jacket condition. A test record is available upon request.

Q3: What does the support terms confirmed by quotation cover?
The support terms covers manufacturing defects and electrical failures under normal operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the robot’s rated environmental parameters.

Q4: Can KNMKS support long-term supply for fleet maintenance programs?
Yes. KNMKS maintains ongoing stock of the 3HAC022999-001 and can support blanket purchase orders, annual maintenance contracts, and scheduled delivery programs for customers operating multiple IRB6400 or IRB6650 robots. Contact our team to discuss volume pricing and supply agreements.
