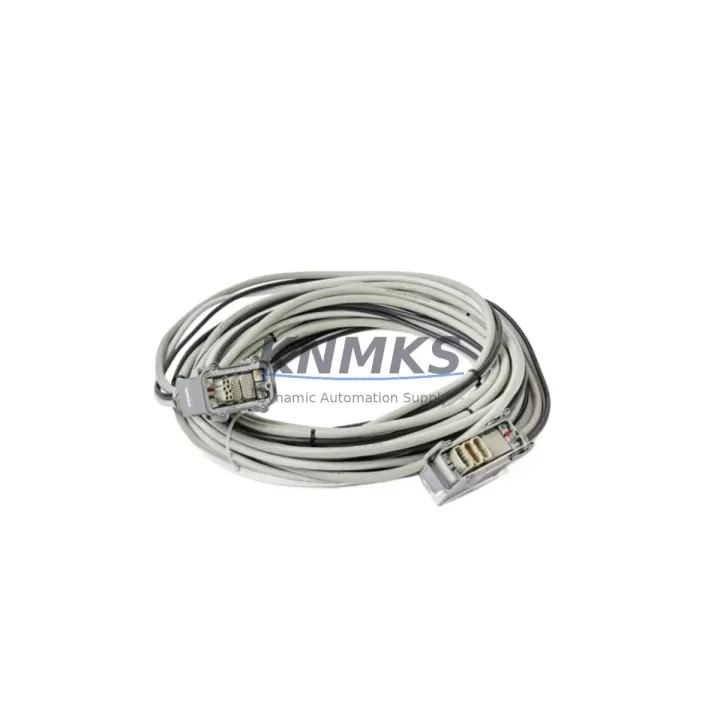

ABB 3HAC022957-001 Fail-Safe CP/CS Cable for IRC5 Control

Overview

ABB 3HAC022957-001 Fail-Safe CP/CS Cable for IRC5 Control: Fault Protection and Critical Industrial Field Reliability

The ABB 3HAC022957-001 is a safety-rated CP/CS (Customer Panel / Customer Safety) cable engineered specifically for ABB IRC5 robot controller systems. In continuous production environments where an unplanned communication interruption between the controller cabinet and the operator panel can trigger an emergency stop cascade, the integrity of this cable is not optional — it is a fundamental layer of the safety architecture. Designed and manufactured to ABB’s stringent robotics interconnect standards, the 3HAC022957-001 delivers consistent signal fidelity, robust mechanical protection, and verified electrical shielding performance across the full service life of the robot cell.

Industrial robot installations in automotive body shops, foundry transfer lines, heavy fabrication cells, and chemical processing facilities expose cabling to a combination of stressors that standard commercial cables cannot reliably withstand: continuous mechanical flexing during teach-pendant use, high-frequency electromagnetic interference from servo drives and variable-frequency drives, thermal cycling between cold start-up and sustained operational heat, and exposure to cutting fluids, hydraulic oil mist, and airborne particulate. The 3HAC022957-001 is constructed to address each of these failure vectors, ensuring that the CP/CS communication path remains stable under conditions that would degrade or sever an unqualified substitute cable.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 3HAC022957-001 does not operate in isolation. Its reliability is directly coupled to the health of the broader IRC5 control cabinet ecosystem. In a correctly specified robot cell, the CP/CS cable interfaces with the IRC5 main computer unit — typically the ABB DSQC1000 or DSQC679 main computer board — which processes all safety chain logic and motion supervision. A degraded or intermittent CP/CS signal at this interface can cause nuisance E-stops, safety chain faults logged as error codes 20252 or 20253, and in worst cases, a latent safety failure that only manifests under specific motion sequences.

Upstream of the main computer, the IRC5 power distribution relies on the ABB DSQC604 or DSQC661 power supply unit to deliver stable 24 VDC logic power to the safety I/O and communication backplane. Voltage ripple or transient dips from an undersized or aging power supply can corrupt CP/CS signal timing even when the cable itself is intact — making the power supply a co-critical component in any CP/CS fault investigation. Similarly, the ABB DSQC643 I/O board, which handles digital safety inputs and outputs within the IRC5 cabinet, must receive clean, bounce-free signals from the customer safety circuit; a compromised cable shield allows injected noise to create false input transitions that the safety PLC interprets as a safety demand.

For installations where the IRC5 cabinet is located in a high-vibration bay — adjacent to stamping presses, compressors, or heavy conveyor drives — the ABB FlexPendant teach pendant cable assembly (3HAC028357-001 series) should be inspected concurrently with the CP/CS cable, as both share the same mechanical stress environment at the cabinet entry point. In multi-robot cells using IRC5 MultiMove, the ABB DSQC688 Ethernet switch module governs inter-controller communication; a CP/CS fault on one controller can propagate a coordinated stop across the entire cell if the safety architecture uses a shared customer safety chain, making cable integrity a cell-wide concern rather than a single-robot issue.

Facilities operating ABB robots in paint booths or wash-down zones should also verify that the cabinet door seals and cable gland assemblies maintain their IP54 or IP67 rating after any cable replacement — a correctly specified 3HAC022957-001 installed through a degraded gland provides no improvement in ingress protection over the cable it replaces.

Critical Industrial Safety Applications

The 3HAC022957-001 CP/CS cable is deployed across a wide range of safety-critical industrial sectors where ABB IRC5-controlled robots perform continuous, high-duty-cycle operations:

Automotive Manufacturing: In body-in-white welding lines, IRC5-controlled spot-welding robots operate on cycle times under 60 seconds for multi-shift production. The CP/CS cable carries the door interlock and light curtain safety chain signals that gate robot motion whenever a human enters the cell. A cable fault in this application does not merely stop one robot — it halts the entire line segment, with downstream impact on paint, trim, and final assembly. Genuine ABB cables with verified shielding prevent the nuisance faults that erode OEE and trigger unnecessary maintenance interventions.

Foundry and Metal Casting: Die-casting and investment casting facilities expose robot cables to radiant heat from molten metal, aggressive release agent aerosols, and severe electromagnetic interference from induction furnaces. The 3HAC022957-001’s oil-resistant jacket and multi-layer shield make it the correct specification for these environments, where a cable failure during a pour cycle creates both a production loss and a potential safety incident.

Chemical and Petrochemical Processing: In hazardous area robot installations — such as drum handling or sampling robots in classified zones — the integrity of the customer safety chain is a regulatory requirement, not merely a reliability preference. The CP/CS cable must maintain its insulation resistance and shield continuity in the presence of solvent vapours and humidity; the 3HAC022957-001 is specified to meet these demands as an OEM component.

Palletising and Logistics: High-throughput palletising cells in food, beverage, and consumer goods facilities run 24/7 with minimal planned downtime. In these applications, the mean time to repair a CP/CS cable fault is measured in lost pallet throughput per hour. Holding a spare 3HAC022957-001 in the site maintenance store eliminates the lead-time risk associated with sourcing a replacement during an unplanned outage.

Shipbuilding and Heavy Fabrication: Large-format welding robots used in shipyard panel lines and offshore structure fabrication operate in environments with extreme weld spatter, high ambient EMI from multiple simultaneous welding processes, and structural vibration. The shielded construction of the 3HAC022957-001 maintains signal integrity under these conditions, supporting uninterrupted arc-on time and consistent weld quality.

Safety and Quality FAQ

Q1: What support terms does the ABB 3HAC022957-001 carry when purchased from KNMKS?
All ABB 3HAC022957-001 cables supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. If the cable exhibits any manufacturing defect or fails to perform to ABB’s published specification within the confirmed support period under normal operating conditions, KNMKS will arrange replacement or credit. Contact [email protected] with your order reference and a description of the fault.

Q2: What pre-shipment testing is performed on each cable?
Every 3HAC022957-001 unit dispatched from KNMKS stock undergoes 100% pre-shipment inspection covering conductor continuity across all cores, insulation resistance between conductors and shield, shield drain wire continuity, and connector seating verification. Test records are retained and available on request for quality-critical procurement processes.

Q3: Is the 3HAC022957-001 compatible with all IRC5 cabinet variants?
The 3HAC022957-001 is the OEM-specified CP/CS cable for ABB IRC5 Single Cabinet and IRC5 Dual Cabinet controllers. It is also compatible with the IRC5 Panel Mounted Controller (PMC) variant. For IRC5 Compact controllers or older S4C+ systems, a different cable assembly is required — contact KNMKS with your controller serial number and software version to confirm the correct part before ordering.

Q4: Can KNMKS support long-term or scheduled spare parts supply for this cable?
Yes. KNMKS maintains standing inventory of the 3HAC022957-001 and can support scheduled spare parts programmes for facilities with multiple IRC5 robots. Blanket orders, consignment stock arrangements, and annual supply agreements are available. For sites managing planned maintenance intervals or building a critical spare parts kit, contact [email protected] or call +86 18359268345 to discuss volume pricing and delivery scheduling.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3HAC022957-001
IRC5 Series

Product Family

Cables & Connectors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Cable range

Sensor, servo, network and circular connectors

Common needs

Length, pin count, shielding and plug type

Project support

Machine wiring and installation kits

Inquiry Support

• Cable length and connector type confirmation
• Servo, sensor and network cable inquiry
• Accessory kits for installation teams

What to Send Us

• Brand and exact model number: ABB 3HAC022957-001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
