ABB 3HAC021731-1 Fail-Safe Reduction Gear for Industrial Control

Overview

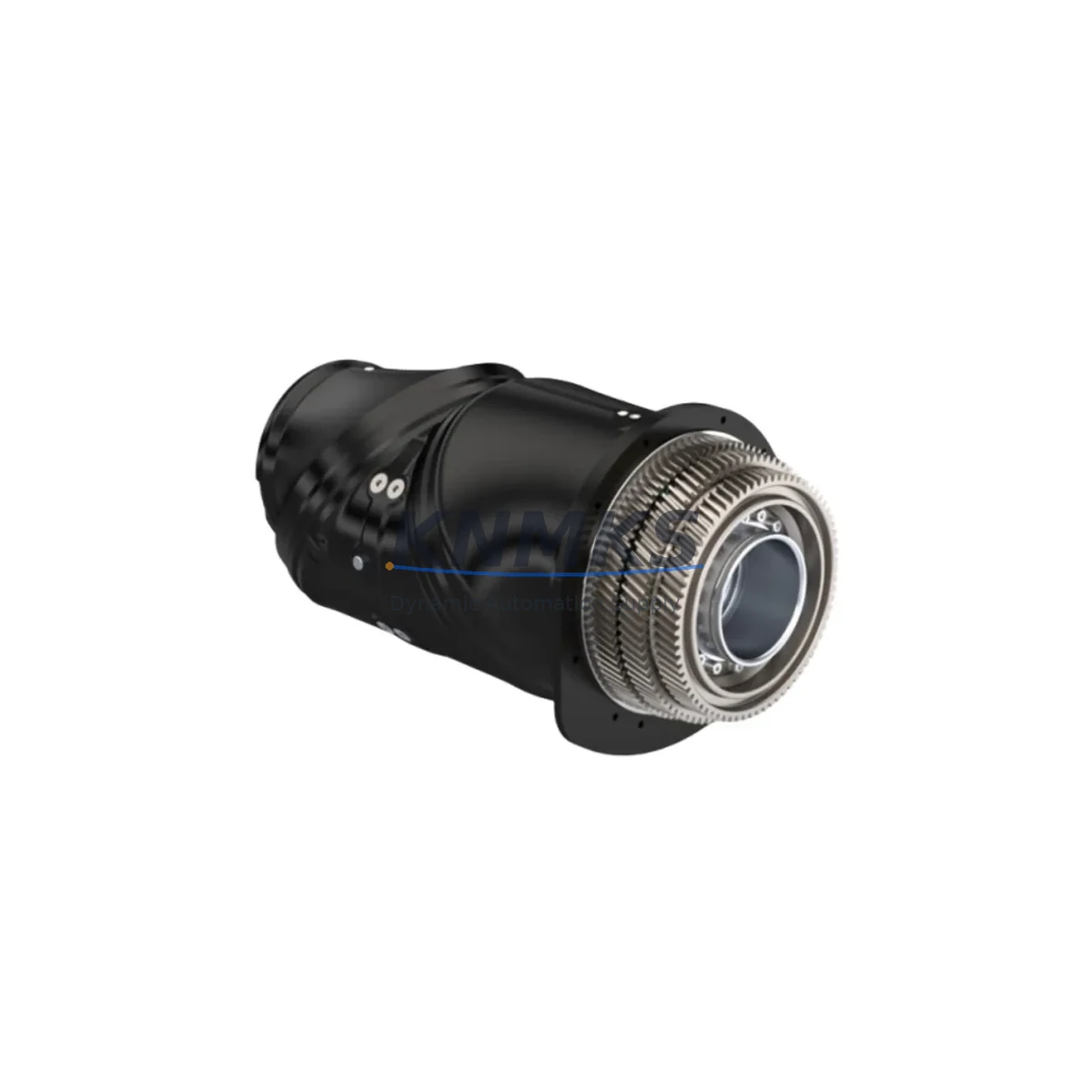

ABB 3HAC021731-1 Fail-Safe Reduction Gear for Industrial Control Reliability

The ABB 3HAC021731-1 is a precision-engineered reduction gear designed for continuous-duty industrial robot applications where control interruption, mechanical drift, and unplanned downtime carry serious operational and safety consequences. Engineered to OEM specification for the ABB IRB2400, IRB4400, and IRB2600 robot series, this gearbox delivers fail-safe torque transmission in high-cycle, high-load, and environmentally demanding production environments.

In critical automation cells — including arc welding stations, press-tending lines, palletizing systems, and continuous-process handling — the reduction gear is the mechanical heart of the robot axis. Any deviation in backlash, lubrication integrity, or gear mesh alignment directly translates into positional error, servo fault escalation, and axis interlock activation. The 3HAC021731-1 is manufactured to ABB’s stringent tolerance stack-up requirements, ensuring that axis repeatability remains within specification across the full thermal and load cycle of the robot’s service life.

This unit is sourced from verified ABB-authorized supply channels and undergoes pre-shipment functional verification, dimensional inspection, and packaging integrity checks before dispatch. Every unit shipped by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and premature failure under normal operating conditions, with documented traceability from receipt to dispatch.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable robot axis performance depends not only on the mechanical integrity of the ABB 3HAC021731-1 reduction gear, but on the health of the entire drive and control architecture surrounding it. In a typical ABB robot control cabinet, the ABB DSQC639 main computer board governs axis interpolation and servo command sequencing — any axis fault originating from gearbox wear or misalignment will propagate upstream to the DSQC639, triggering emergency stop conditions and requiring coordinated reset procedures. Maintaining the gearbox in OEM specification directly reduces the frequency of these fault events.

The servo drive chain — including the ABB DSQC601 drive unit and associated DSQC663 axis computer — relies on consistent mechanical load feedback to maintain current loop stability. A worn or non-OEM reduction gear introduces torque ripple and positional jitter that the drive’s current controller must compensate for, increasing thermal stress on the drive modules and shortening their service interval. Replacing the 3HAC021731-1 with a verified OEM unit eliminates this mechanical noise source at its origin.

In high-electromagnetic-interference environments — common in arc welding cells where the ABB IRC5 controller cabinet is co-located with welding power sources — the robot’s 3HAC026254-001 power supply unit must maintain stable DC bus voltage under surge and transient conditions. A mechanically sound gearbox reduces axis current demand spikes, easing the burden on the power supply and reducing the risk of bus undervoltage faults during high-acceleration moves. Similarly, the ABB 3HAC044168-001 SMB (Serial Measurement Board) relies on clean resolver or encoder signals from each axis; gearbox-induced vibration can corrupt these signals, causing axis calibration drift and requiring unplanned recalibration downtime.

For facilities operating multiple IRB2400 or IRB2600 cells, maintaining a bonded spare of the 3HAC021731-1 alongside critical drive and controller spares — including the DSQC639, DSQC601, and SMB board — forms a complete first-response spare parts kit that minimizes mean time to repair (MTTR) and supports 24/7 production continuity commitments.

Critical Industrial Safety Applications

The ABB 3HAC021731-1 reduction gear supports fail-safe robot operation across a broad range of critical industrial sectors where unplanned axis failure carries significant safety, quality, and financial consequences.

In automotive and press-tending manufacturing, IRB2400 and IRB4400 robots perform high-cycle part transfer between stamping presses operating at tonnages where a robot axis fault mid-cycle can result in tooling damage, press jam, or personnel hazard. The precision torque path of the OEM gearbox ensures that the robot’s safety-rated position monitoring functions — including SafeMove speed and position supervision — operate on a mechanically accurate axis, maintaining the integrity of the safety interlock system.

In arc welding and fabrication environments, the IRB2600 is widely deployed in continuous-seam and spot-welding applications where positional repeatability directly determines weld quality and structural integrity of the finished assembly. Gearbox backlash or wear-induced positional error in this context is not merely a quality issue — in pressure vessel, pipeline, or structural steel fabrication, it is a safety-critical defect. The 3HAC021731-1 maintains the sub-millimeter repeatability that these applications demand across hundreds of thousands of weld cycles.

In chemical, petrochemical, and hazardous material handling facilities, robots operating in Zone 2 or similarly classified areas must maintain predictable, controlled motion at all times. An axis fault in a hazardous area handling robot can trigger emergency shutdown sequences that affect entire process trains, with restart procedures requiring multi-hour safety verification. Preventive replacement of the reduction gear on a planned maintenance schedule — using a verified OEM spare — is the lowest-risk strategy for maintaining continuous operation in these environments.

In food and beverage, pharmaceutical, and cleanroom applications, the IRB2400 is used for hygienic pick-and-place and packaging operations where lubricant containment and mechanical integrity are regulatory requirements. The sealed bearing interfaces and factory-specified lubrication of the 3HAC021731-1 support compliance with these requirements throughout the gearbox’s service life.

Safety and Quality FAQ

Q1: What support terms coverage applies to the ABB 3HAC021731-1 supplied by KNMKS?
All units supplied by KNMKS carry a support terms confirmed by quotation from the date of dispatch, covering manufacturing defects and premature failure under normal operating conditions. Support requests are supported by KNMKS’s documented traceability records, which track each unit from incoming inspection through pre-shipment verification and dispatch. In the event of a support terms claim, KNMKS provides replacement or credit resolution without requiring the customer to navigate the OEM’s standard support terms channel.

Q2: What pre-shipment testing is performed on each unit?
Each 3HAC021731-1 unit undergoes a structured pre-shipment inspection protocol that includes dimensional verification of critical mating interfaces, visual inspection for surface defects or handling damage, functional rotation check to confirm smooth gear mesh and bearing operation, and packaging integrity verification to ensure the unit arrives in field-ready condition. Units that do not pass inspection are quarantined and not dispatched.

Q3: Is the 3HAC021731-1 compatible with all variants of the IRB2400, IRB4400, and IRB2600?
The 3HAC021731-1 is the primary OEM reduction gear reference for the IRB2400 and IRB4400 series, with cross-reference compatibility to 3HAC5952-1 and 3HAC3696-1 for earlier IRB2400 variants, and 3HAC028705-004 for IRB2600 axis applications. KNMKS recommends confirming the robot’s serial number and axis assignment against the ABB spare parts manual or contacting KNMKS technical support at [email protected] to verify fitment before ordering, particularly for older or modified robot configurations.

Q4: Can KNMKS support long-term and repeat supply for maintenance programs?
Yes. KNMKS maintains bonded stock of high-demand ABB robot spare parts including the 3HAC021731-1 to support planned maintenance programs, annual spare parts budgets, and emergency breakdown requirements. For facilities operating multiple IRB2400, IRB4400, or IRB2600 robots, KNMKS can provide volume pricing, reserved stock agreements, and coordinated dispatch scheduling to align with planned shutdown windows. Contact the KNMKS team to discuss a long-term supply arrangement tailored to your maintenance strategy.
