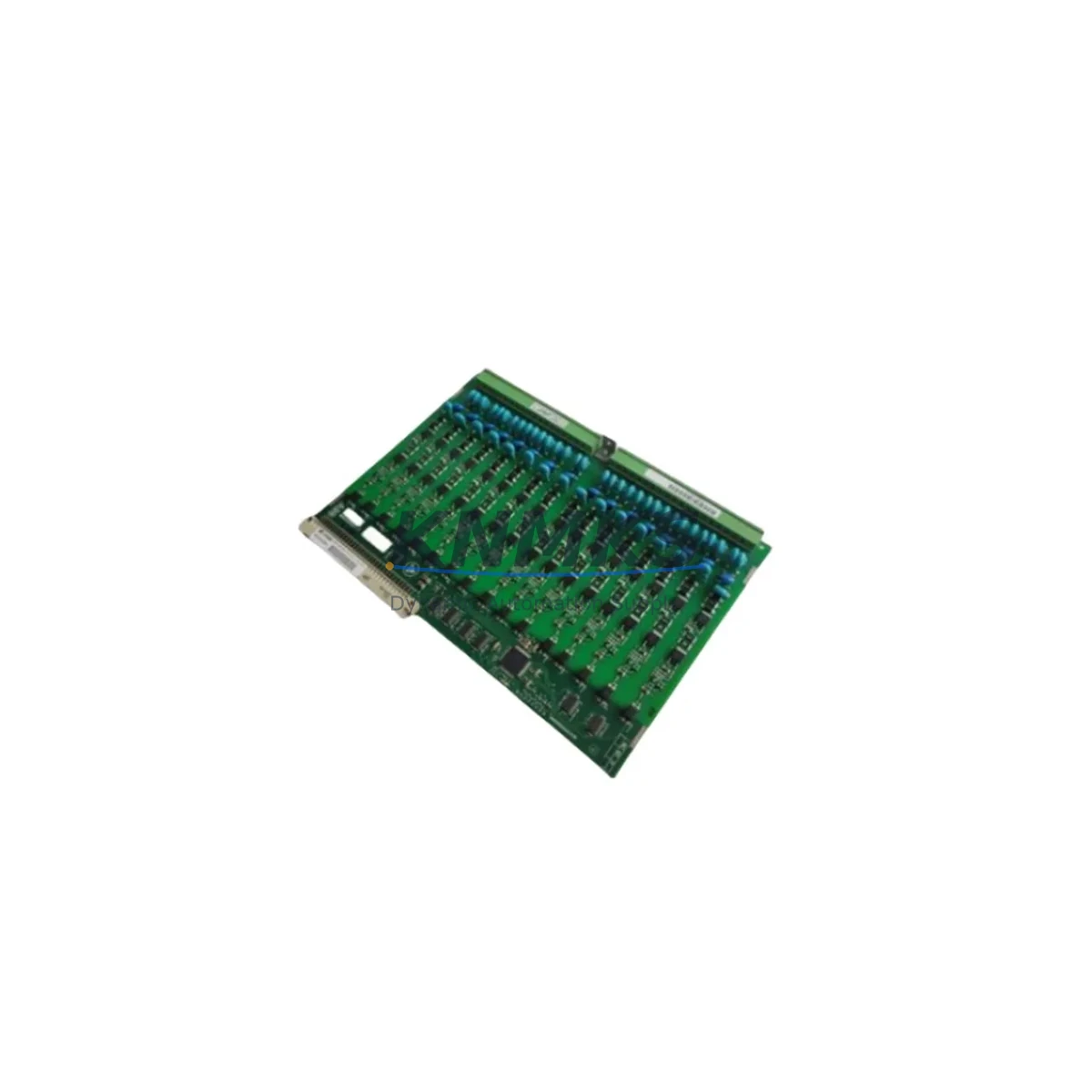

ABB 3EHL409054R0001 KUB921A01 Migration-Ready Drive Control

Overview

ABB 3EHL409054R0001 KUB921A01 Migration-Ready Drive Control for Legacy Control Systems

The ABB 3EHL409054R0001 / KUB921A01 is a drive control board engineered for the ACS800 series variable frequency drive platform. As legacy ACS800 installations age and original ABB spare parts reach end-of-availability, this migration-ready replacement board provides a verified, drop-in upgrade path for industrial facilities managing active production lines, retrofit projects, and long-term spare parts programs.

This board governs core drive control functions including speed reference processing, torque control loop management, I/O signal conditioning, and communication interface coordination within the ACS800 drive cabinet. When the original KUB921A01 board fails or becomes unavailable through standard distribution channels, unplanned downtime risk escalates rapidly — particularly in continuous-process industries such as pulp and paper, metals, cement, and marine propulsion where ACS800 drives remain widely deployed.

Before proceeding with a board-level replacement, engineers should confirm the following parameters against the existing installation: DC bus voltage rating, control power supply input (typically 24 VDC from the APOW-01 or equivalent power supply module), terminal block wiring layout (X1 through X4 connectors), DDCS fiber-optic link configuration for inverter unit communication, and the firmware version loaded on the AMC board (NAMC or RMIO) that interfaces with this control layer. Mismatched firmware revisions between the drive control board and the application macro stored in the AMC can result in parameter set loss or fault code F-0001 on first power-up.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ACS800 drive control board retrofit requires a structured approach that accounts for the full control architecture — not just the board itself. In most ACS800 installations, the KUB921A01 board operates alongside several interdependent components that must be evaluated before and after the swap.

The APOW-01 auxiliary power supply provides the 24 VDC rail that powers the control board. Before replacement, verify that the APOW-01 output is within tolerance and that no upstream fuse or MCB has degraded — a marginal power supply is a common root cause of repeated control board failures. Similarly, the RDCO-03 DDCS communication adapter (or RDCO-01/02 depending on the installation generation) must be inspected for fiber-optic connector cleanliness and confirmed to be operating at the correct baud rate for the drive-to-drive or drive-to-master controller link.

For multi-drive systems using an ACS800-104 inverter unit configuration, the DDCS ring topology must be re-verified after board replacement to ensure all inverter units are correctly addressed and that the master drive recognizes the restored control node. Address conflicts in the DDCS ring will prevent the system from entering the RUN state and will generate communication fault codes.

I/O wiring at the X1–X4 terminal blocks should be documented with a wiring photograph or terminal schedule before disconnection. The AIMA-01 I/O extension module, if fitted, adds additional analog and digital I/O channels that must be re-mapped in the parameter set after the board swap. Failure to restore I/O mapping will result in incorrect speed references or missing interlock signals from the process control system.

Where the ACS800 is integrated with an NPBA-12 PROFIBUS adapter or NMBP-01 Modbus adapter, the fieldbus node address, baud rate, and process data word mapping must be re-confirmed after commissioning. HMI screens connected via the panel bus (CDP312R or equivalent) should be tested for correct parameter read/write access following the board replacement. In some installations, the HMI display will require a manual re-link procedure if the drive control board serial number has changed in the drive’s internal memory.

For facilities managing multiple ACS800 units across a production line, a staged replacement strategy — replacing one drive at a time during scheduled maintenance windows — is strongly recommended to maintain line continuity and allow full commissioning verification before the next unit is taken offline.

Downtime Control During System Migration

Minimizing unplanned downtime during a drive control board replacement requires preparation that begins well before the maintenance window opens. The most effective risk mitigation step is a full parameter backup using the DriveWindow Light 2 or DriveWindow 2 PC tool, or via the CDP312R panel’s parameter copy function, before any hardware is disturbed. This backup preserves the complete application macro, motor data, speed/torque limits, I/O configuration, and fieldbus settings — allowing rapid restoration if the replacement board requires re-parameterization.

During the physical swap, control power should be isolated at the APOW-01 input before any board connectors are disturbed. The DDCS fiber-optic cables are particularly sensitive to contamination; protective caps should be fitted immediately upon disconnection and removed only at the moment of reconnection. Torque specifications for the backplane mounting screws should be followed to avoid mechanical stress on the board’s edge connector.

After installation, the recommended commissioning sequence is: (1) control power-up and fault code check, (2) parameter restore from backup, (3) I/O signal verification against the terminal schedule, (4) DDCS link test and node address confirmation, (5) fieldbus communication test with the PLC or DCS, (6) motor identification run (if motor data was not preserved), and (7) no-load test run before returning the drive to process control. This sequence typically allows a complete board replacement and recommissioning to be completed within a 4–6 hour maintenance window for a single drive unit.

All units supplied by KNMKS are pre-shipment tested under powered conditions to verify control board function prior to dispatch, reducing the risk of receiving a non-functional replacement and eliminating one potential source of extended downtime.

Retrofit Support FAQ

Q1: Is the 3EHL409054R0001 / KUB921A01 a direct drop-in replacement for the original ABB board?
Yes. This board is designed as a direct replacement for the original ABB KUB921A01 fitted in ACS800 series drives. No mechanical modification to the drive cabinet is required. Firmware version compatibility between this board and the installed AMC (NAMC or RMIO) should be confirmed before installation; contact our technical team with your drive serial number for version guidance.

Q2: What pre-shipment testing is performed on this board?
Each unit undergoes powered functional testing prior to dispatch to verify control circuit integrity, I/O channel response, and communication interface operation. A test record is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q3: How do I verify wiring compatibility before installation?
Document all existing terminal connections at X1–X4 before disconnection using photographs or a written terminal schedule. Compare against the ACS800 Hardware Manual (3AFE64527592) wiring diagrams for your drive rating. If the existing installation includes an AIMA-01 I/O extension or RDCO communication adapter, note the current parameter settings for those options before the board swap.

Q4: What is the lead time and stock availability?
KNMKS maintains inventory of the 3EHL409054R0001 / KUB921A01 to support urgent replacement and long-term spare parts programs. Standard lead time for in-stock units is 3–7 business days for international shipment. For multi-unit orders or 12–36 month supply agreements, contact [email protected] to discuss dedicated stock allocation and pricing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3EHL409054R0001 KUB921A01
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 3EHL409054R0001 KUB921A01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
