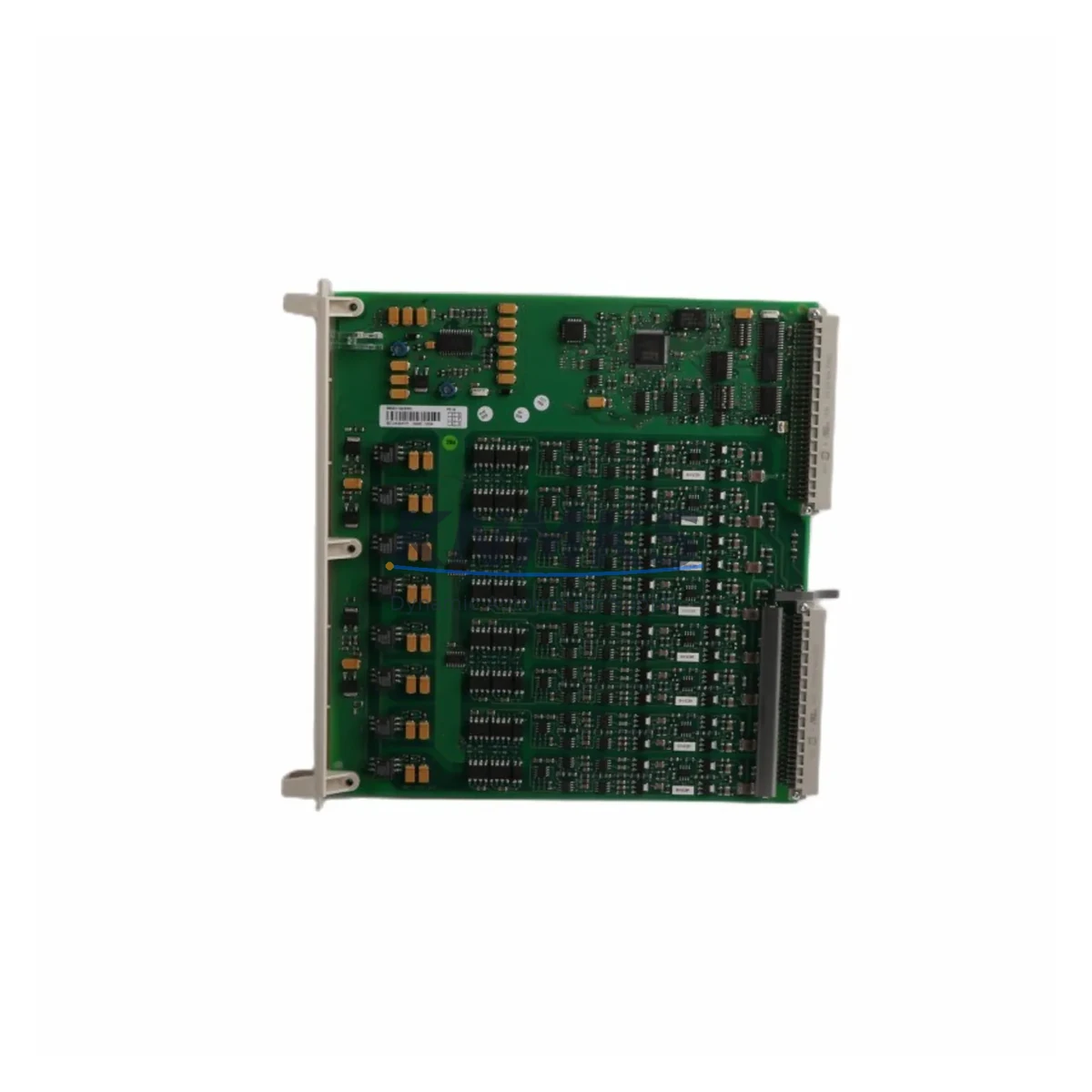

ABB 3BSE018293R1 DSAO 120A Fail-Safe Analog Output Module

Overview

ABB 3BSE018293R1 DSAO 120A Fail-Safe Analog Output Module: Fault-Protected Reliability for Critical Industrial Control

In continuous production environments where a single control signal failure can cascade into unplanned shutdowns, equipment damage, or safety incidents, the ABB 3BSE018293R1 DSAO 120A analog output module delivers the fault-tolerant signal integrity that modern industrial automation demands. Engineered as part of ABB’s proven S800 I/O platform, this module is purpose-built for deployment in high-stakes control cabinets, safety-critical interlocking loops, and field installations subject to electromagnetic interference, voltage transients, and harsh ambient conditions.

The 3BSE018293R1 provides 12 channels of high-resolution analog output, each independently configurable for 4–20 mA or 0–10 V signal ranges. Its robust signal conditioning architecture actively suppresses EMI-induced drift, ensuring that actuator commands remain accurate even in environments with variable-frequency drives, high-power contactors, and dense cable routing. For facilities operating in petrochemical, metallurgical, or power generation sectors, this level of signal stability is not optional — it is a prerequisite for safe and compliant operation.

Signal drift and output deviation are among the leading causes of process upsets in analog control loops. The DSAO 120A addresses this through precision DAC circuitry with tight linearity tolerances, combined with on-module diagnostics that continuously verify output integrity. When deployed alongside the ABB 3BSE018293R1 DSAI 110A analog input module within the same S800 rack, the system forms a closed-loop verification architecture that can detect wire-break, short-circuit, and out-of-range conditions before they propagate to field devices.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable analog output performance in a control cabinet is never the result of a single module — it depends on a coordinated protection architecture across power, signal, and communication layers. The ABB 3BSE018293R1 DSAO 120A is most effective when integrated with complementary S800 I/O components that collectively eliminate single points of failure.

On the power supply side, the ABB SD831 or SD832 24 VDC power supply modules provide regulated, redundant power to the S800 I/O bus, ensuring that voltage sags or transients on the plant supply do not corrupt analog output values or trigger spurious actuator movements. In cabinets with high inrush loads or frequent motor starts, pairing the DSAO 120A with a dedicated ABB UPS module on the I/O bus rail provides ride-through capability during momentary supply interruptions.

For communication integrity, the ABB CI854A PROFIBUS DP communication interface module maintains deterministic data exchange between the AC800M controller and the S800 I/O station. In high-EMI environments — common in arc furnace control rooms, variable-speed drive panels, and high-voltage switchgear buildings — the CI854A’s shielded bus architecture prevents communication timeouts that could leave analog outputs in a last-value-hold or fail-safe state without operator awareness.

Where safety interlocking is required, the ABB 3BSE008510R1 DO810 digital output module can be configured in the same rack to provide hardwired trip signals that override analog commands in emergency conditions. This layered approach — analog control via the DSAO 120A, digital safety override via the DO810, and bus supervision via the CI854A — represents best practice for SIL-rated control loops in process industries.

In dusty, humid, or high-vibration environments such as mining conveyors, port crane control rooms, or offshore platform automation panels, the mechanical integrity of the S800 I/O backplane and the DSAO 120A’s conformal-coated PCB provide additional protection against environmental ingress and vibration-induced connector fatigue.

Critical Industrial Safety Applications

The ABB 3BSE018293R1 DSAO 120A is deployed across a wide range of safety-critical and continuous-process industries where analog output accuracy directly affects operational safety and regulatory compliance.

In petrochemical and refinery applications, the module drives control valve positioners in distillation column pressure control, reactor feed flow regulation, and flare gas management systems. Signal accuracy at the 4–20 mA level is essential to prevent overpressure events and maintain process within safe operating limits defined by HAZOP studies.

In electric power generation and transmission, the DSAO 120A provides setpoint signals to AVR (automatic voltage regulator) systems, turbine governor actuators, and reactive power compensation equipment. In these applications, output stability under high-frequency EMI from generator excitation systems is a non-negotiable requirement.

In metallurgical and steel plant environments, the module controls cooling water flow valves, furnace atmosphere regulators, and rolling mill hydraulic servo systems. The combination of high ambient temperature, intense electromagnetic fields from induction furnaces, and continuous 24/7 operation makes the DSAO 120A’s thermal tolerance and EMI immunity particularly valuable.

In water and wastewater treatment facilities, the module drives chemical dosing pump speed references, aeration blower VFD setpoints, and filter backwash valve positioners. Reliable analog output in these applications directly affects effluent quality compliance and public health protection.

In port and maritime automation, including ship-to-shore crane control and vessel automation panels, the DSAO 120A’s vibration resistance and wide temperature range support reliable operation in mobile and marine-grade control enclosures.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the ABB 3BSE018293R1 DSAO 120A?
All units are covered by a support terms confirmed by quotation from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and component-level faults. Support requests are supported with replacement dispatch and technical documentation.

Q2: What pre-shipment testing is performed on each module?
Every 3BSE018293R1 unit undergoes functional output verification across all 12 channels, power-on self-test validation, and visual inspection for physical integrity before dispatch. Test records are available upon request for quality-critical procurement processes.

Q3: Is the DSAO 120A compatible with ABB AC800M and Freelance DCS controllers?
Yes. The module is fully compatible with ABB AC800M, AC800F, and Freelance 800F DCS platforms via the S800 I/O bus. It is also backward-compatible with earlier S800 I/O configurations. Confirm your S800 bus version and controller firmware revision when ordering for legacy system retrofits.

Q4: Can long-term supply and replacement support be guaranteed?
Stock is maintained for immediate dispatch. For facilities requiring ongoing spare parts programs or scheduled replacement cycles, volume reservation and priority allocation can be arranged. Contact our technical sales team to discuss multi-unit procurement and long-term supply agreements for your site’s maintenance schedule.
