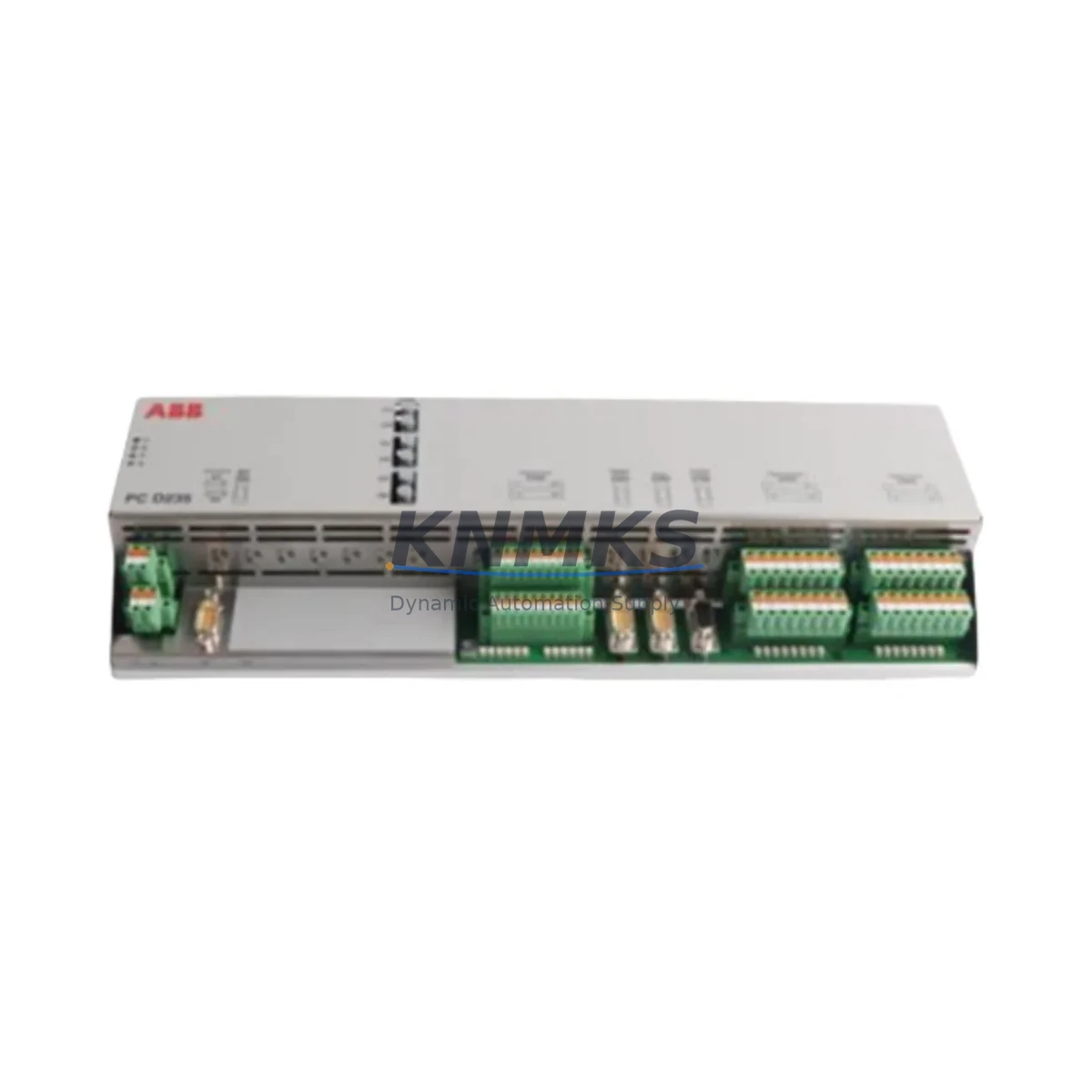

ABB 3BHE022294R0101 Migration-Ready Analog Input Module

Overview

ABB 3BHE022294R0101 Migration-Ready Analog Input Module: Legacy System Retrofit & Compatibility Upgrade

The ABB 3BHE022294R0101 (also identified as GFD233A) is a migration-ready analog input module engineered for direct replacement and retrofit deployment within ABB ACS800 and DCS800 drive control platforms. As legacy automation infrastructure ages and OEM support windows close, maintenance engineers and system integrators face mounting pressure to source verified, drop-in compatible spare parts that preserve existing program logic, terminal wiring, and communication architecture without triggering a full-system overhaul. The 3BHE022294R0101 addresses this challenge by delivering hardware-level backward compatibility with the original ACS800 RDCO-02 and RDCO-03 communication option boards, the AINT-02 auxiliary interface, and the RMIO-11C main control board — all of which remain in active service across process industries including pulp and paper, metals, marine propulsion, and oil and gas.

Before committing to a replacement cycle, engineers must systematically verify several critical parameters: available backplane slot positions within the ACS800 or DCS800 control section, terminal block pinout compatibility (particularly for 4–20 mA and 0–10 V signal ranges), module address configuration via DIP switch or parameter set, and firmware revision alignment between the replacement module and the drive’s existing RMIO board. Skipping any of these steps risks signal offset errors, parameter map mismatches, or — in worst cases — uncontrolled drive trips during commissioning. The 3BHE022294R0101 ships pre-tested against ABB’s original factory acceptance criteria, reducing field commissioning time and supporting a controlled, low-risk cutover.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 3BHE022294R0101 into an operating ACS800 or DCS800 installation requires a structured pre-outage engineering review. Begin by auditing the existing control section layout: confirm that the target option slot is free or that the module currently occupying it (such as an AINT-02 auxiliary interface or an older analog I/O board) can be safely relocated without disrupting the drive’s I/O map. Next, review the RMIO-11C main control board’s parameter backup — specifically parameter groups 11, 12, and 13 — to document all existing analog reference scaling, signal inversion flags, and filter time constants. These values must be re-entered after module swap to prevent reference signal drift.

Terminal wiring is typically the lowest-risk element of this retrofit: the 3BHE022294R0101 preserves the original X1/X2 terminal block layout, allowing field cables to be reconnected without re-labeling or re-routing. However, engineers should use a calibrated loop tester to verify 4–20 mA signal integrity at the new module’s input terminals before enabling the drive. Where the existing installation includes a RDCO-02 or RDCO-03 DDCS fiber optic communication board for master-follower or fieldbus connectivity, confirm that the fiber link budget and node address assignments remain unchanged after the module replacement — the 3BHE022294R0101 does not alter the DDCS topology but a firmware mismatch on the RMIO board can cause node dropout.

For installations where the ACS800 is integrated into a broader DCS or SCADA environment — for example, via a PROFIBUS DP adapter (RPBA-01) or a Modbus RTU gateway — the analog input channel mapping visible to the supervisory system must be re-validated after commissioning. HMI screens referencing analog feedback tags (motor current, DC bus voltage, process reference) should be checked against live signal values before returning the drive to automatic control. In multi-drive systems sharing a common DC bus, such as those using the ACS800-104 regenerative supply unit alongside standard inverter modules, the analog reference chain must be verified end-to-end to prevent speed reference conflicts. Similarly, if the installation includes an RDIO-01 digital I/O extension module or an RAIO-01 analog I/O extension, confirm that the extension module’s parameter assignments do not overlap with the newly installed 3BHE022294R0101 channel map.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any legacy drive retrofit. For the 3BHE022294R0101 replacement, the recommended approach is a planned maintenance window of 4–8 hours, structured as follows: (1) perform a full parameter backup from the RMIO-11C using the ABB Drive Composer or DriveWindow tool before any hardware is disturbed; (2) photograph or document all terminal wiring connections at the existing analog input module; (3) power down the drive section following the ACS800 safe isolation procedure, including discharge of the DC bus capacitors to below 50 V DC before opening the control section; (4) swap the module, reconnect terminals, and restore DIP switch address settings; (5) power up in local control mode and verify analog signal levels before transferring to remote or automatic control.

Preserving the original program logic is non-negotiable. Because the 3BHE022294R0101 is a hardware-level replacement — not a firmware upgrade — the drive’s application macro and parameter set remain intact on the RMIO board’s non-volatile memory. This means the cutover does not require re-programming the drive from scratch, significantly reducing commissioning risk. For sites operating under a process safety management (PSM) framework, the module swap can typically be classified as a like-for-like replacement, avoiding the full management of change (MOC) review cycle that a platform migration would trigger. All units supplied by KNMKS are function-tested prior to dispatch, with test records available on request, further reducing the risk of a failed commissioning attempt extending the outage window.

Retrofit Support FAQ

Q1: Is the ABB 3BHE022294R0101 a direct drop-in replacement for the GFD233A?
Yes. The 3BHE022294R0101 is the current ABB part number for the module previously identified as GFD233A. It is mechanically and electrically interchangeable with the earlier revision (3BHE022294R0001), subject to firmware version verification on the host RMIO-11C board. No mechanical modification to the drive control section is required.

Q2: What commissioning steps are required after installation?
After physical installation, re-enter analog scaling parameters in parameter group 13, verify DIP switch S1 address settings, perform a 4–20 mA loop calibration at the input terminals, and re-validate HMI analog channel displays. If the drive communicates via RDCO-02/03 DDCS fiber, confirm node address integrity before enabling remote control.

Q3: Can I reuse existing field wiring and terminal connections?
In the majority of ACS800 and DCS800 installations, yes. The 3BHE022294R0101 preserves the original X1/X2 terminal block layout. Verify wire labeling against the as-built wiring diagram before reconnection, and use a loop tester to confirm signal continuity before powering up.

Q4: What support terms and pre-shipment testing does KNMKS provide?
All 3BHE022294R0101 units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Each unit undergoes function testing prior to dispatch. Test records are available on request. In-stock units typically ship within 2–5 business days. Contact [email protected] or +86 18359268345 for lead time confirmation and volume pricing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHE022294R0101
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 3BHE022294R0101
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
