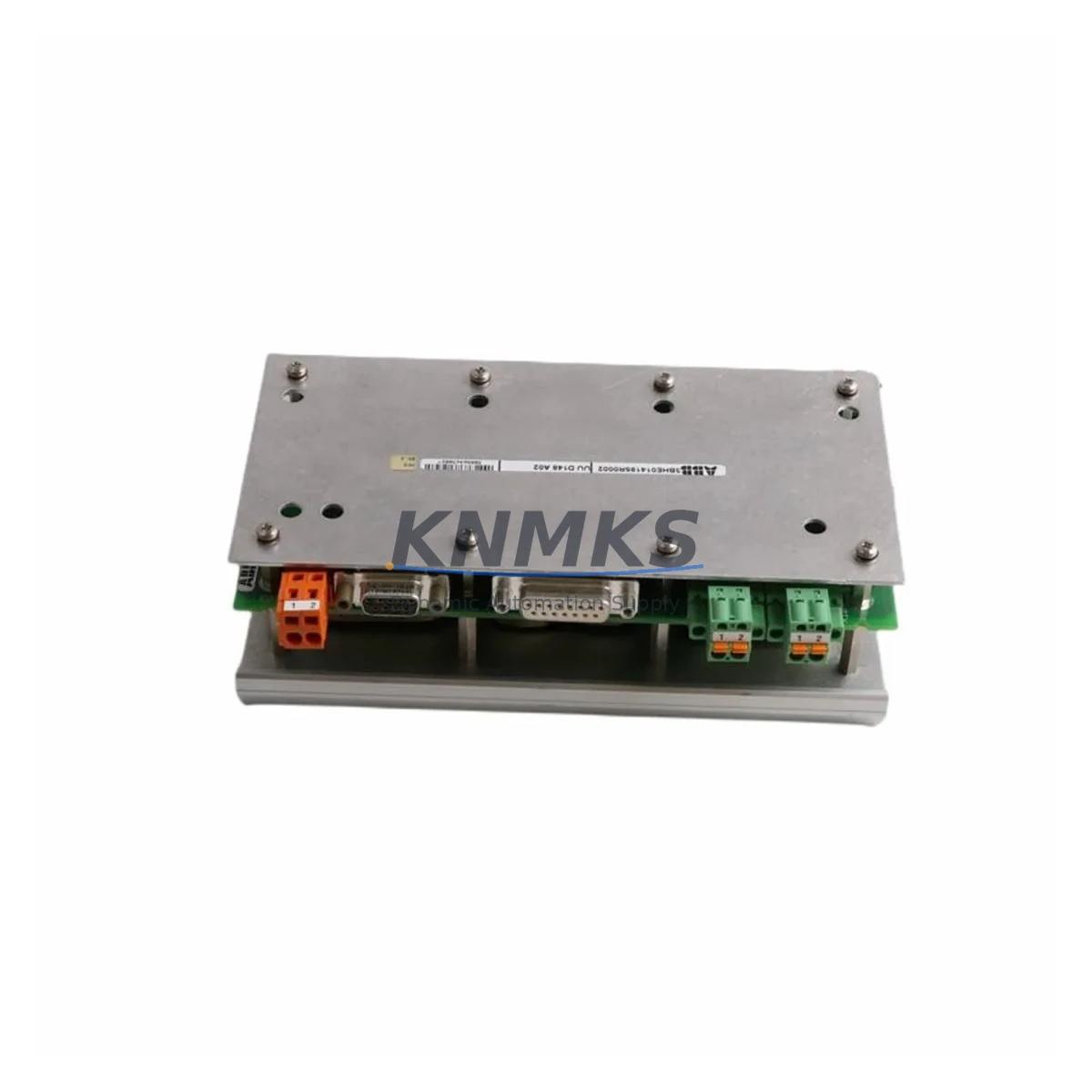

ABB 3BHE014185R0002 UUD148 A02 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3BHE014185R0002 UUD148 A02 Maintenance-Proven Spare Part for Factory Uptime

The ABB 3BHE014185R0002 UUD148 A02 is an OEM-grade drive control board (current transducer board) engineered for the ACS800 series variable frequency drives. For maintenance engineers managing continuous production lines, this board is a critical spare — its failure directly causes drive trip faults, loss of motor current feedback, and unplanned downtime. Stocking a verified replacement ensures rapid fault isolation and same-shift recovery without waiting on extended lead times from distribution channels.

This unit is sourced as an original ABB spare, fully tested prior to shipment, and backed by a support terms confirmed by quotation. It is suited for industrial environments including paper mills, cement plants, steel processing, water treatment, mining conveyors, and any facility running ACS800 drives in continuous-duty applications. Whether you are executing a planned annual overhaul, responding to an emergency drive fault, or building a strategic spare parts inventory for aging ACS800 systems, the 3BHE014185R0002 UUD148 A02 is a direct, drop-in replacement that restores full drive functionality without firmware reconfiguration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When the 3BHE014185R0002 UUD148 A02 is identified as the fault source during drive diagnostics, experienced maintenance engineers know that a thorough cabinet inspection is essential before returning the drive to service. Replacing the control board in isolation without checking adjacent components risks repeat faults and secondary failures.

Begin by inspecting the AINT (ACS800 Inverter Control Board) and the APOW (Power Supply Board) — both share the same backplane bus and are subject to the same voltage transients that can degrade the current transducer board. Verify the 24 VDC auxiliary power supply output is within tolerance; an out-of-spec supply voltage is a common root cause of control board failure in ACS800 cabinets.

Check all fiber optic communication cables connecting the control board to the IGBT gate driver boards (AINT/AGPS). Degraded fiber links cause intermittent current feedback errors that mimic board failure. Inspect the AGPS (Gate Power Supply Board) for signs of thermal stress or capacitor bulging, particularly in high-ambient or poorly ventilated enclosures.

Review the I/O terminal block wiring on the RMIO (Standard I/O Board) for loose connections, corrosion, or insulation breakdown — especially on analog current reference inputs (AI1/AI2) and digital fault output relays. If the drive is part of a networked system, confirm the fieldbus adapter module (e.g., RPBA-01 PROFIBUS or RCAN-01 CANopen) is seated correctly and that communication parameters are intact after board replacement.

For facilities running multiple ACS800 units in a common DC bus or multi-drive cabinet configuration, also inspect the ACRB (Charging and Relay Board) and verify that the main contactor and pre-charge circuit are functioning correctly. A faulty pre-charge relay can cause inrush events that stress the replacement control board immediately upon power-up.

Finally, confirm that the drive cooling fan and thermal sensors are operational. Overtemperature conditions are a leading cause of premature control board failure in continuous-duty ACS800 installations. Proactive replacement of cooling fans at the same maintenance interval as control boards significantly extends mean time between failures (MTBF) for the overall drive system.

Site Replacement Workflow

Step 1 — Fault Confirmation: Use the ACS800 drive panel or DriveWindow software to read active fault codes. Current transducer faults (e.g., Fault 9 — Output Phase Loss, or Fault 35 — Board Temp) combined with abnormal current feedback readings confirm the 3BHE014185R0002 as the suspect component.

Step 2 — Safe Isolation: Isolate the drive from mains supply and wait a minimum of 5 minutes for DC bus capacitors to discharge. Verify DC bus voltage is below 50 V using a calibrated multimeter before opening the cabinet.

Step 3 — Board Removal: Document all fiber optic cable positions and connector labels before disconnecting. Remove the board using ESD-safe handling procedures. Photograph the original installation for reference.

Step 4 — Replacement Installation: Install the 3BHE014185R0002 UUD148 A02 into the same slot. Reconnect all fiber optic cables and I/O connectors in the documented sequence. Confirm the backplane connector is fully seated.

Step 5 — Parameter Verification: Power up the drive and verify that all application parameters are retained (ACS800 parameters are stored in the RMIO board, not the control board). Run a no-load motor test to confirm current feedback is reading correctly on all three phases.

Step 6 — Return to Service: Restore the drive to automatic control and monitor for 30 minutes under load. Log the replacement in the maintenance record with the new board serial number and support terms start date.

This workflow minimizes downtime to under 2 hours for a prepared maintenance team with the spare on hand — compared to 3–10 days waiting for emergency procurement from standard distribution channels.

Spare Parts Support FAQ

Q1: Is the 3BHE014185R0002 UUD148 A02 compatible with all ACS800 drive ratings?
The UUD148 A02 variant is designed for specific ACS800 power ratings and cabinet configurations. Before ordering, confirm your drive’s type code (found on the drive nameplate) and cross-reference with ABB’s ACS800 hardware manual. Our technical team can assist with compatibility verification based on your drive type code and existing board markings.

Q2: How is each unit tested before shipment?
Every 3BHE014185R0002 unit undergoes functional testing on ACS800-compatible test equipment prior to dispatch. Test results confirm correct current transducer output, communication bus integrity, and power supply rail voltages. A test report is available upon request for quality-critical procurement processes.

Q3: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage events, or operation outside the specified environmental ratings. Support requests are processed with return authorization; replacement units are dispatched within 5 business days of fault confirmation.

Q4: Can you support long-term supply for facilities with multiple ACS800 drives?
Yes. For facilities managing fleets of ACS800 drives, we offer reserved stock arrangements and scheduled supply agreements to ensure 3BHE014185R0002 availability throughout your planned maintenance cycles. Contact our sales team to discuss volume pricing, consignment stock options, and multi-year supply commitments aligned with your maintenance calendar.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

3BHE014185R0002 UUD148 A02
S800 Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: ABB 3BHE014185R0002 UUD148 A02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
