ABB 3BHE007211R0101 XVC768AE101 Migration-Ready DDCS Controller for Legacy Control Systems

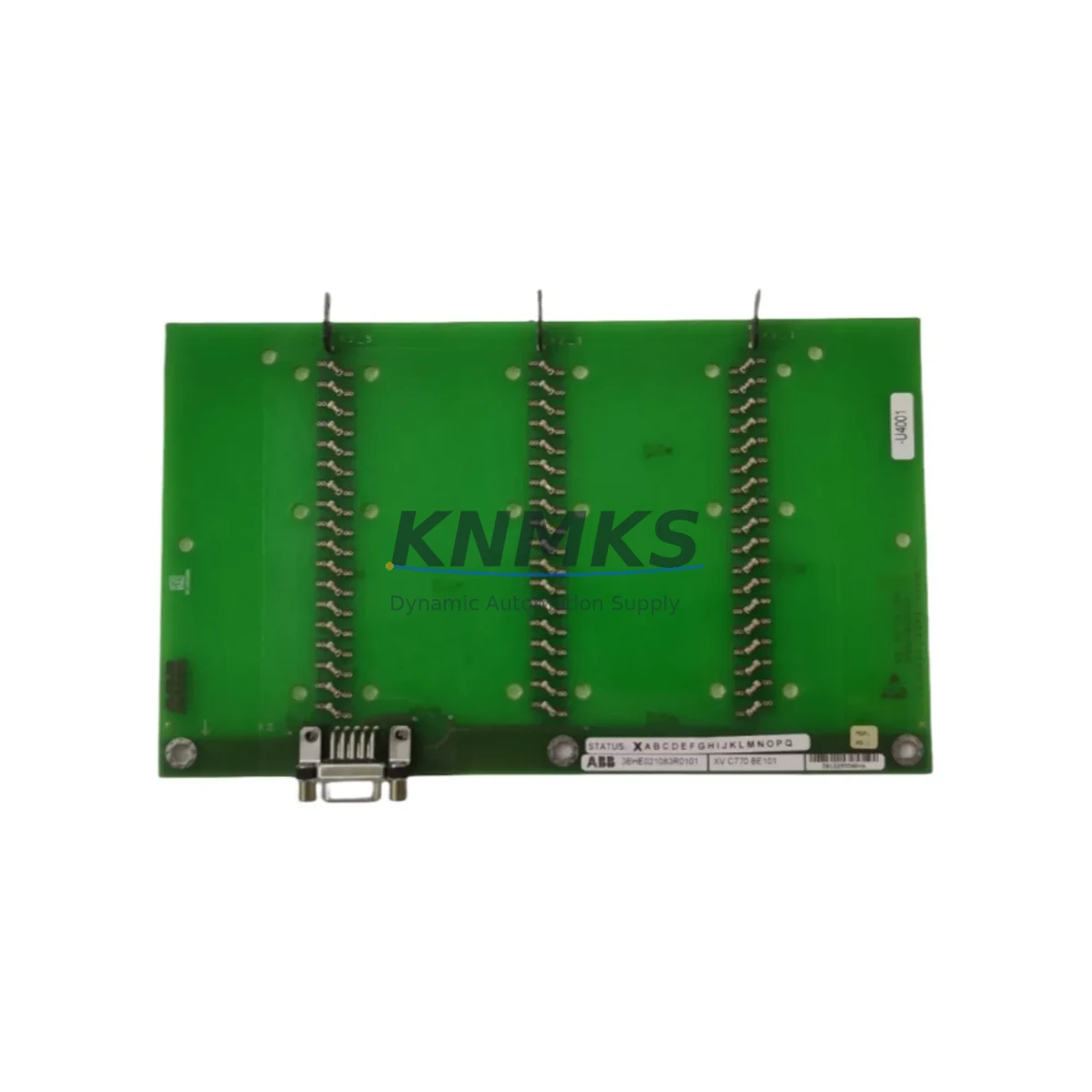

The ABB 3BHE007211R0101 (XVC768AE101) is a DDCS Fiber Vision Controller designed for use within ABB’s ACS800 series variable frequency drive platform. As legacy ACS800 installations age and original spare parts become increasingly difficult to source, this module serves as a verified migration-ready replacement for facilities managing long-term drive system continuity. Whether you are executing a planned retrofit, responding to an unplanned failure, or building a strategic spare parts inventory, the 3BHE007211R0101 provides a direct-fit solution with back-to-back compatibility for existing ACS800 control architectures.

The XVC768AE101 board integrates the DDCS (Distributed Drive Control System) fiber optic communication interface, enabling high-speed, noise-immune data exchange between the drive control unit and external controllers or master stations. This fiber-based communication channel is critical in environments where electromagnetic interference from high-power motor loads would otherwise compromise signal integrity on copper-based links. During retrofit planning, engineers must confirm that the existing fiber optic ring topology — including the DDCS channel assignments and node addresses — is preserved or remapped correctly to avoid communication faults after module replacement.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the ABB 3BHE007211R0101 begins well before the module arrives on site. Maintenance engineers should start by auditing the existing ACS800 drive cabinet to document the current DDCS fiber ring configuration, including the number of nodes, channel assignments, and the master controller type — typically an AC80 application controller or an external PLC communicating via the NDCS-02 or RDCO-02 DDCS adapter board. If the system uses an RDCO-02 adapter mounted on the drive’s control board, the fiber connections and channel parameters must be recorded before the old XVC768AE101 is removed.

Power supply integrity is a prerequisite for any control board replacement. The ACS800 internal 24 VDC auxiliary power supply feeds the control electronics, and any degradation in this supply — often caused by aging APBU-44C or APBU-12C power supply boards — can cause intermittent faults on a newly installed DDCS controller. It is advisable to measure the 24 VDC rail under load before and after the swap to rule out supply-side issues that could be misattributed to the replacement board.

Terminal wiring on the ACS800 control board should be photographed and labeled before disconnection. The XVC768AE101 shares the same terminal layout as its predecessor, but technicians should verify that any external I/O signals — including digital inputs for run/stop commands, analog inputs for speed reference, and relay outputs for fault indication — are reconnected to the correct terminals. In multi-drive systems where the ACS800 units are linked via a DDCS ring, the fiber optic cables must be reconnected in the correct sequence to maintain the ring topology; reversing the Tx and Rx connections on even one node will break the entire ring.

For facilities running ABB’s DriveWindow or DriveWindow Light PC tool, the parameter backup from the original drive should be restored to the replacement unit after installation. This ensures that motor data, control macro settings, and application-specific parameters — including any custom function block programming loaded via the AC80 application controller — are preserved without requiring a full recommissioning from scratch. If the drive is integrated into a DCS environment via Profibus DP using an NPBA-12 adapter or via Modbus RTU, the communication parameters must be verified in the drive parameter list before the system is returned to automatic control.

Downtime Control During System Migration

Minimizing production downtime during an ACS800 DDCS controller replacement requires a structured pre-outage preparation protocol. Before scheduling the maintenance window, the engineering team should complete a full parameter upload from the drive using DriveWindow, verify that a tested spare 3BHE007211R0101 is on hand and has passed outgoing inspection, and prepare a step-by-step reconnection checklist covering fiber optic routing, terminal wiring, and DDCS node address settings.

The physical swap of the XVC768AE101 board is typically completed within 30 to 60 minutes for a technician familiar with the ACS800 platform. The majority of the outage time is consumed by post-installation verification: confirming DDCS link status via the drive’s panel display or DriveWindow, running a no-load motor test to verify speed reference tracking, and checking all fault and alarm outputs before returning the drive to production. In critical applications — such as large pump drives, compressor drives, or crane hoist drives — a staged restart protocol should be followed, beginning with a low-speed jog test before ramping to full operating speed.

Where process continuity is essential, facilities with redundant drive configurations can transfer the load to a standby drive before beginning the replacement, eliminating production impact entirely. For single-drive critical applications without redundancy, pre-positioning a tested spare module and completing all preparatory documentation in advance is the most effective strategy for compressing the maintenance window to the minimum possible duration. All replacement modules supplied by KNMKS are subject to outgoing functional testing prior to shipment, reducing the risk of a second outage caused by a defective replacement part.

Retrofit Support FAQ

Q1: Is the ABB 3BHE007211R0101 a direct replacement for the original XVC768AE101 installed in my ACS800?
Yes. The 3BHE007211R0101 is the ABB part number for the XVC768AE101 DDCS Fiber Vision Controller board. It is a direct plug-in replacement for the same board position in all standard ACS800 drive variants. No hardware modification is required. You should verify the drive firmware version is compatible with the board hardware revision before installation.

Q2: What commissioning steps are required after installing the replacement board?
After physical installation, reconnect all fiber optic cables in the correct Tx/Rx orientation and verify the DDCS node address matches the original setting. Power up the drive and check the DDCS link status on the panel display. Use DriveWindow to restore the parameter backup and confirm all I/O signals are functioning correctly. Run a no-load test before returning the drive to production.

Q3: How do I verify the fiber optic connections are correct after the swap?
The ACS800 panel display and DriveWindow both provide DDCS link status diagnostics. A healthy DDCS link will show no communication fault codes. You can also use a fiber optic power meter to verify Tx output power and Rx received power at each node in the ring. Typical DDCS fiber links use plastic optical fiber with ST connectors; ensure connectors are clean and fully seated before powering up.

Q4: What does the support terms confirmed by quotation cover, and what is the lead time for in-stock units?
All ABB 3BHE007211R0101 / XVC768AE101 units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. In-stock units are available for immediate shipment. Contact our team to confirm current inventory status and arrange expedited delivery for urgent maintenance requirements.
