ABB 3AUA0000043722/RDCU-12C Migration-Ready Drive Control Unit for Legacy ACS800 Systems

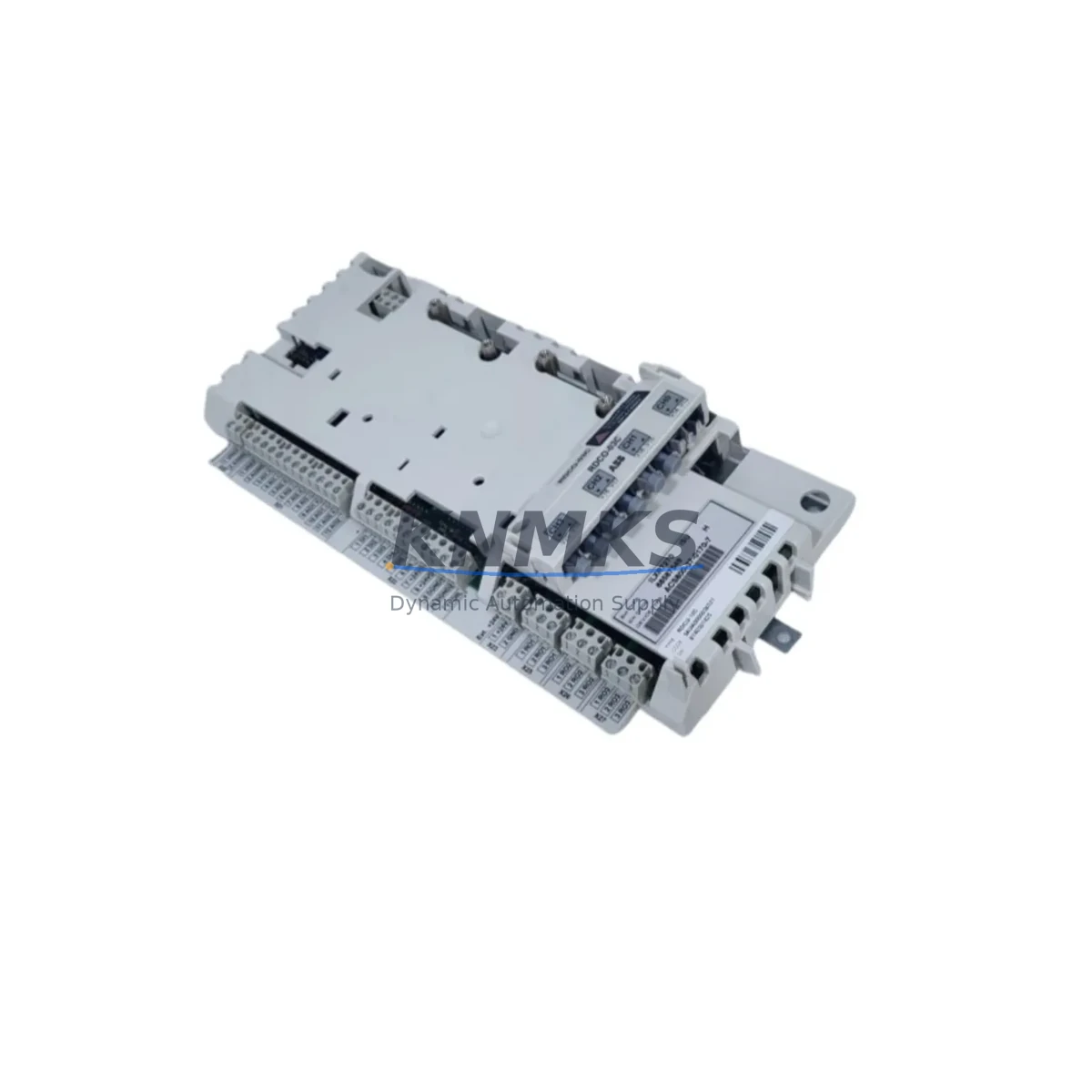

The ABB 3AUA0000043722 (RDCU-12C) is a drive control unit engineered for the ACS800 series variable frequency drive platform. As industrial facilities worldwide accelerate the retirement of aging automation infrastructure, the RDCU-12C has become a critical component in legacy system migration projects — enabling engineers to restore full drive functionality without replacing the entire drive cabinet or rewriting control logic from scratch. Whether you are managing a planned retrofit or responding to an unplanned failure of a discontinued control board, the RDCU-12C provides a verified, drop-in compatible path forward.

This unit handles the core control functions of the ACS800 drive: speed reference processing, motor control algorithms, fieldbus communication management, and I/O coordination. It interfaces directly with the ACS800 power section via the standard AINT or AINP interface board, preserving the existing power hardware investment while refreshing the control intelligence. Engineers replacing a failed or end-of-life RDCU-02C or RDCU-12C in the field will find that the board-level pinout, mounting footprint, and firmware parameter structure remain consistent across compatible revisions, significantly reducing commissioning time.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful RDCU-12C retrofit begins well before the replacement board arrives on site. The first step is a thorough audit of the existing ACS800 cabinet: confirm the drive frame size, verify the AINT or AINP interface board revision, and document all parameter group settings using DriveWindow or DriveStudio software. This parameter backup is non-negotiable — it preserves motor data, speed references, ramp times, and application-specific logic that would otherwise require full recommissioning from scratch.

Next, review the fieldbus communication chain. Many ACS800 installations use an RDCO-01 or RDCO-04 DDCS adapter to connect the drive to a higher-level control system such as an ABB AC500 PLC or a third-party PROFIBUS master. Confirm that the fiber optic cables connecting CH0 through CH3 are undamaged and that the node addresses are documented before removing the old control board. If the system uses an AIAO analog I/O extension module or an AIND digital I/O module mounted on the control board, verify that these expansion modules are compatible with the replacement RDCU-12C revision and that their terminal wiring matches the documented I/O list.

Power supply capacity is another critical checkpoint. The RDCU-12C draws its logic supply from the drive’s internal APOW power supply board. Before installation, confirm that the APOW unit is functioning correctly and delivering stable +24 VDC and +5 VDC rails — a degraded power supply can cause intermittent faults on a new control board that are difficult to diagnose in the field. If the APOW board is also aging, a concurrent replacement is strongly recommended to avoid a second unplanned outage.

For installations where the ACS800 drive is integrated into a larger control cabinet alongside other ABB components — such as an ACS800 MultiDrive system with a common DC bus — also verify that the DDCS master/follower configuration and the drive’s role in the speed chain are correctly re-established after the board swap. Systems using an RMIO or RDIO I/O board in adjacent drive modules should have their inter-drive communication links tested before returning the line to production.

Downtime Control During System Migration

Minimizing production downtime during an RDCU-12C replacement requires a structured approach. Begin by scheduling the swap during a planned maintenance window and preparing all tools, documentation, and the replacement board in advance. Use DriveStudio or DriveWindow to export a full parameter backup to a laptop before powering down the drive — this file becomes your recovery baseline if commissioning reveals unexpected deviations.

During the physical swap, photograph the existing fiber optic connections at CH0–CH3 and all terminal wiring before disconnection. Label each fiber and cable clearly. The RDCU-12C board can typically be removed and replaced in under 30 minutes by a trained technician familiar with the ACS800 platform. After installation, restore the parameter backup, verify the motor data group (Group 99), and confirm that the fieldbus adapter — whether an RDCO-01 for DDCS or an RDCO-04 for PROFIBUS — is recognized by the new control board before energizing the drive.

Perform a no-load test run first, monitoring output frequency, current feedback, and fault register. If the system includes an HMI panel such as an ABB CDP312R or a third-party SCADA display, verify that all drive status signals and fault codes are correctly mapped and visible before handing the system back to operations. A structured commissioning checklist — covering power-on sequence, communication link verification, motor ID run, and I/O function test — can reduce total downtime to under two hours for a straightforward single-drive replacement.

Retrofit Support FAQ

Q1: Is the 3AUA0000043722 RDCU-12C a direct replacement for the RDCU-02C?
In most ACS800 applications, yes. The RDCU-12C is the successor to the RDCU-02C and shares the same mounting interface and parameter structure. However, always verify the drive firmware version and any application-specific software loaded on the original board before swapping, as certain customized application programs may require re-loading after replacement.

Q2: What commissioning steps are required after installing the RDCU-12C?
After physical installation, restore the parameter backup via DriveWindow or DriveStudio, verify Group 99 motor data, confirm fieldbus adapter recognition, and perform a motor identification run if the motor data has changed. Test all I/O signals against the documented I/O list and verify HMI communication before returning the drive to automatic control.

Q3: How do I confirm wiring compatibility before installation?
Compare the terminal layout of the replacement RDCU-12C against the wiring diagram of the existing installation. Pay particular attention to the DDCS fiber optic channel assignments (CH0–CH3), the XPOW power supply connector, and any expansion module connectors (AIAO, AIND, AITC). If the existing wiring was modified from the factory default, document all deviations before the swap.

Q4: What does the support terms confirmed by quotation cover, and what is your stock availability?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. We maintain ready stock of the 3AUA0000043722 RDCU-12C and can confirm availability and lead time upon inquiry. All units are function-tested prior to shipment, including power-on verification and communication link checks, to ensure you receive a board that is ready for immediate installation.
