ABB 3AFE64803689 Maintenance-Proven Spare Part for Factory Uptime

Overview

ABB 3AFE64803689 Maintenance-Proven Spare Part for Factory Uptime

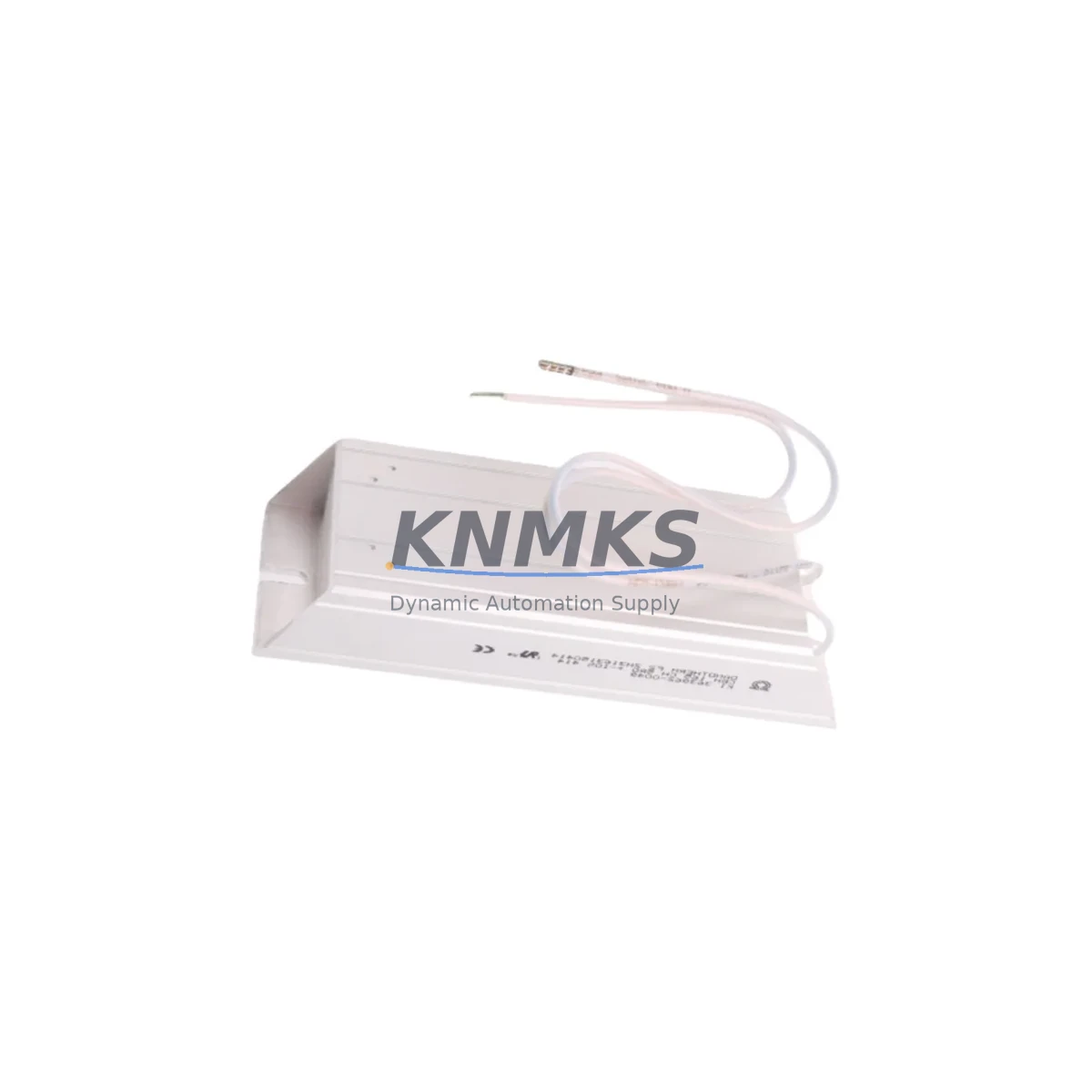

The ABB 3AFE64803689 is an original DC Bus Pre-Charge Resistor engineered for the ACS800 series variable frequency drives. In industrial facilities where continuous operation is non-negotiable, this component plays a critical role in limiting inrush current during drive startup, protecting the DC bus capacitors and the entire power conversion stage from destructive voltage transients. Maintenance engineers managing ACS800 drive cabinets in pulp and paper, metals, oil and gas, marine, and process automation environments rely on the 3AFE64803689 as a first-line spare to eliminate unplanned downtime caused by pre-charge circuit failure.

When a pre-charge resistor degrades or fails open, the ACS800 drive will typically fault on startup with DC bus undervoltage or charging circuit errors. Without a verified replacement on the shelf, recovery time can extend from hours to days depending on supply chain availability. Stocking the 3AFE64803689 as a ready spare is a proven strategy for maintenance teams operating under strict mean-time-to-repair (MTTR) targets. Each unit supplied by KNMKS is tested before shipment and backed by a support terms confirmed by quotation, giving procurement engineers confidence in both quality and long-term supply continuity.

From a procurement risk perspective, the ACS800 platform has a large installed base globally, and many facilities are operating drives that are 10 to 20 years old. Sourcing original ABB spare parts for legacy ACS800 systems requires a reliable supplier with verified stock and traceable component history. KNMKS maintains regional warehouse inventory to support fast dispatch and reduce lead-time exposure for critical maintenance events.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 3AFE64803689 pre-charge resistor is rarely an isolated task. Experienced maintenance engineers treat a pre-charge circuit failure as a signal to inspect the broader ACS800 power stage and control architecture. During the same maintenance window, it is advisable to verify the condition of the ACS800 DC bus capacitor bank, as capacitor aging is often a contributing factor to abnormal pre-charge stress. The IGBT power module assembly should also be checked for signs of thermal stress or gate drive anomalies that may have caused repeated pre-charge cycling.

On the control side, the ACS800 RDCU control unit and the AINT interface board should be inspected for firmware integrity and communication health. If the drive is integrated into a fieldbus network — whether PROFIBUS, Modbus RTU, or DeviceNet — the RPBA-01 or RDNA-01 communication adapter should be confirmed operational before returning the drive to service. A faulty communication module can mask drive faults and delay fault isolation during the next incident.

Procurement engineers building a comprehensive ACS800 spare parts kit should also consider stocking the ACS800 main contactor, the pre-charge contactor (if separately mounted), and the drive’s input fuse set. Fuse integrity is frequently overlooked during reactive maintenance but is a common failure point in high-cycle industrial environments. Additionally, the ACS800 I/O extension module (RAIO or RDIO type) and the panel-mounted CDP312R control panel are recommended spares for facilities where operator interface continuity is critical to production recovery.

Site Replacement Workflow

Before replacing the 3AFE64803689, isolate the ACS800 drive from the main supply and allow the DC bus to fully discharge — confirm zero voltage across the DC bus terminals using a calibrated meter before opening the drive cabinet. Remove the faulty pre-charge resistor by disconnecting its terminals and releasing the mounting hardware. Install the replacement 3AFE64803689, ensuring all terminal connections are torqued to the manufacturer’s specification and that the resistor body is correctly seated in its mounting position without contact with adjacent components.

After installation, perform a controlled power-up sequence: energize the drive without enabling the motor output and monitor the DC bus voltage ramp during the pre-charge phase. A healthy pre-charge sequence will bring the DC bus to nominal voltage smoothly within the expected time window. If the drive faults during pre-charge after resistor replacement, escalate inspection to the pre-charge contactor coil, the DC bus capacitors, and the AINT board logic. Document the replacement in the site maintenance log and update the spare parts inventory to trigger reorder of a replacement 3AFE64803689 unit, maintaining minimum stock levels for this critical component.

For facilities managing multiple ACS800 drives across a production line or substation, a standardized pre-charge resistor replacement procedure reduces technician training time and ensures consistent recovery quality across all drive cabinets. KNMKS supports long-term supply agreements to help maintenance teams maintain buffer stock without capital exposure risk.

Spare Parts Support FAQ

Q1: Is the 3AFE64803689 compatible with all ACS800 drive frame sizes?
The 3AFE64803689 is designed for specific ACS800 frame configurations. Compatibility should be verified against the drive’s nameplate frame size and the ABB ACS800 spare parts catalog for your specific drive variant. KNMKS technical support can assist with cross-referencing the correct part number for your drive frame before order confirmation.

Q2: What is the recommended inventory strategy for the 3AFE64803689 in a multi-drive facility?
For facilities operating three or more ACS800 drives, maintaining a minimum of one 3AFE64803689 per drive cabinet cluster is recommended. High-cycle or high-criticality applications — such as main drive trains in continuous process lines — warrant a dedicated on-site spare. KNMKS offers blanket stock programs to support scheduled replenishment without requiring individual purchase orders for each unit.

Q3: How is the 3AFE64803689 tested before shipment?
Each unit undergoes functional verification prior to dispatch, including resistance measurement and visual inspection for physical integrity. Units that do not meet specification are quarantined and not shipped. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and verified component failure under normal operating conditions.

Q4: Can the 3AFE64803689 be used as a direct replacement for an older ACS800 pre-charge resistor that has been discontinued?
In most cases, yes — the 3AFE64803689 is the current ABB-designated replacement for pre-charge resistor assemblies used in the ACS800 series. However, for drives that have undergone field modifications or non-standard retrofits, physical fitment and electrical specification should be confirmed before installation. KNMKS can provide technical documentation support to assist with compatibility verification for legacy or modified drive configurations.
