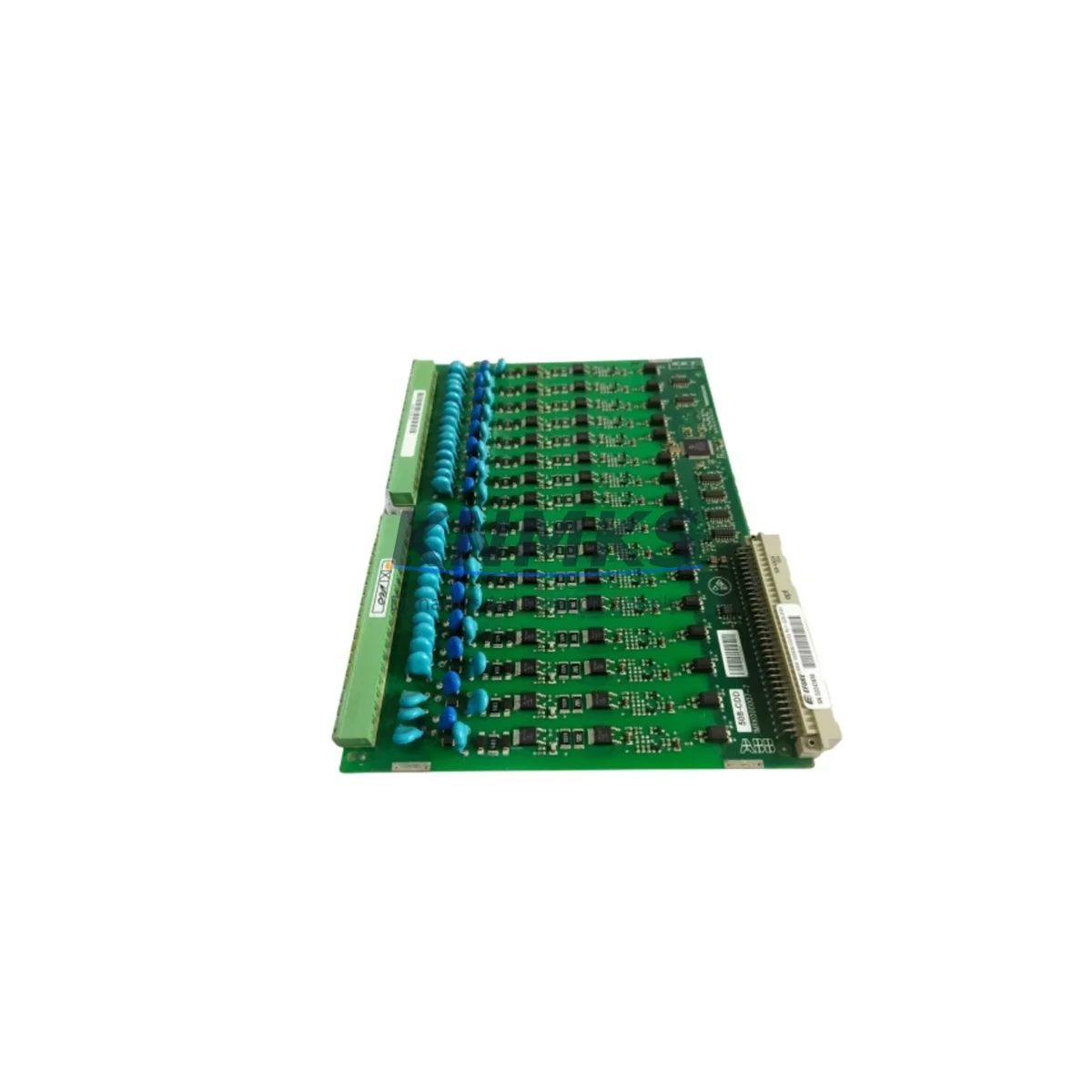

ABB 1MRK000508-CDr03 Migration-Ready Protection Relay

Overview

ABB 1MRK000508-CDr03 Migration-Ready Protection Relay for Legacy Control Systems

The ABB 1MRK000508-CDr03 (cross-reference: 1MRK000007-7) is a migration-ready protection relay module from ABB’s MRK Series platform, engineered for deployment in legacy substation automation, power distribution panels, and industrial control cabinets where discontinued or end-of-life protection relays must be replaced without full system redesign. This module is a direct retrofit candidate for aging ABB SPACOM, PYRAMID, and early MRK-generation relay installations that have reached end-of-support status.

For maintenance engineers and system integrators managing aging power infrastructure, the 1MRK000508-CDr03 addresses the critical challenge of sourcing a functionally equivalent, wiring-compatible replacement that preserves existing terminal layouts, protection logic, and communication link integrity. The module ships pre-tested and verified against ABB factory specifications, with a support terms confirmed by quotation covering component and functional integrity from date of dispatch.

Sourced from verified ABB supply channels and stocked for immediate dispatch, this relay is suitable for emergency spare parts procurement, planned maintenance windows, and phased control system modernization programs across utilities, heavy industry, oil & gas, and manufacturing sectors.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 1MRK000508-CDr03 within an operational substation or industrial control cabinet requires a structured pre-replacement audit to avoid protection gaps and unplanned outages. Before removing the legacy relay, engineers should document all existing protection settings — overcurrent pickup values, time-delay curves, directional elements, and auto-reclose sequences — using the ABB CAP 505 or CAP 531 relay setting tool, depending on the installed relay generation.

Power supply capacity is the first physical checkpoint. The existing auxiliary power module — commonly an ABB SDCS-POW or equivalent panel-mount DC/AC supply — must be confirmed to deliver stable auxiliary voltage within the 1MRK000508-CDr03’s rated input range. Voltage dips during switching events can cause relay initialization failures that are often misdiagnosed as module faults.

Terminal wiring should be photographed and mapped before disconnection. MRK Series terminal blocks use a standardized layout, but field modifications over years of operation frequently introduce non-standard jumper configurations. The replacement relay’s terminal assignment must be cross-checked against the as-built wiring diagram, not the original factory schematic.

For systems using ABB’s SPA-bus or IEC 60870-5-103 communication protocol, the communication module — such as an ABB RSIO-01 or SPA-ZC 22 serial communication adapter — must be reconfigured with the correct slave address and baud rate to match the SCADA or RTU polling configuration. Failure to restore the communication link before energization will result in loss of remote monitoring and may trigger supervisory alarms.

Where the control cabinet also houses an ABB REF615 or REL670 feeder protection relay on adjacent bays, engineers should verify that the protection coordination scheme — particularly the zone selectivity and inter-relay communication settings — remains intact after the 1MRK000508-CDr03 is commissioned. Changes in relay response time or pickup sensitivity can affect upstream/downstream protection grading.

I/O expansion modules connected to the same rack, such as ABB AI810 analog input modules or DO810 digital output modules in adjacent slots, should be checked for address conflicts after the replacement module is inserted. Module addressing in MRK-compatible racks is position-dependent, and a slot change during replacement can shift the address map if the rack firmware does not auto-detect module type.

For sites running ABB MicroSCADA or Relion-based HMI displays, the HMI screen configuration linked to the replaced relay’s data points should be validated post-commissioning. Signal tags, alarm thresholds, and event log mappings tied to the 1MRK000508-CDr03’s I/O points must be confirmed active and correctly labeled before the system is returned to service.

Downtime Control During System Migration

Minimizing downtime during protection relay replacement is a primary concern for utilities and industrial operators where continuous power delivery or process continuity is contractually or operationally mandated. The 1MRK000508-CDr03 replacement process can be structured to limit outage windows to under four hours when pre-commissioning preparation is completed off-site.

The recommended approach is to pre-load all protection settings into the replacement relay using the ABB relay setting tool before the maintenance window begins. This eliminates on-site parameter entry time and reduces the risk of data entry errors under time pressure. Settings files from the legacy relay — if retrievable via the communication port — should be used as the baseline, with only the parameters confirmed to require adjustment being modified.

Where the existing relay cannot be read out due to communication failure or firmware incompatibility, the protection engineer should reconstruct settings from the most recent relay test record or protection coordination study. This reconstruction step is the most common source of extended downtime and should be completed and peer-reviewed before the maintenance window is scheduled.

During the physical swap, the trip circuit should be isolated and continuity-tested before and after relay insertion. A failed trip circuit — caused by a loose terminal or corroded contact exposed during relay removal — is a latent fault that will not be detected during normal operation but will result in protection failure during a fault event. This test adds less than 15 minutes to the commissioning sequence and eliminates a significant post-replacement risk.

Communication link restoration should be the final step before returning the relay to service. The SCADA operator should confirm that the relay’s data points are visible and updating correctly in the control room before the maintenance team withdraws from site. A signed commissioning record documenting the protection settings applied, the trip circuit test result, and the communication link status should be retained for the asset maintenance file.

Retrofit Support FAQ

Q1: Is the 1MRK000508-CDr03 a direct replacement for the 1MRK000007-7?
Yes. The 1MRK000508-CDr03 is the current-generation equivalent of the 1MRK000007-7 and is designed as a functional and wiring-compatible replacement. Terminal layout and protection function set are equivalent. Firmware version should be verified and protection settings re-entered or uploaded after installation.

Q2: What commissioning steps are required after installation?
Required commissioning steps include: protection setting upload or re-entry, CT and VT ratio verification, trip circuit continuity test, auxiliary power voltage check, communication link re-establishment (SPA-bus or IEC 60870-5-103), and HMI data point validation. A functional injection test is recommended before returning the relay to service.

Q3: Is stock available for immediate dispatch, and what is the lead time?
Yes. The 1MRK000508-CDr03 is stocked for immediate dispatch. Standard lead time for in-stock units is 3–7 business days for international shipments. Emergency procurement requests can be accommodated — contact admin@knmks.com or call +86 18359268345 for urgent requirements.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover component and functional integrity of the relay module from the date of shipment. All units are pre-tested against ABB functional specifications before dispatch. Support requests resulting from incorrect installation, wiring errors, or auxiliary voltage out-of-specification conditions are excluded. Full support terms terms are provided with each shipment.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

1MRK000508-CDr03 1MRK000007-7

Product Family

Relays & Interface

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Interface range

Relays, isolation and signal modules

Common needs

Coil voltage and contact rating

Project support

Panel wiring and signal protection

Inquiry Support

• Relay base and module matching
• Signal isolation and protection options
• Panel accessory inquiry support

What to Send Us

• Brand and exact model number: ABB 1MRK000508-CDr03 1MRK000007-7
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
