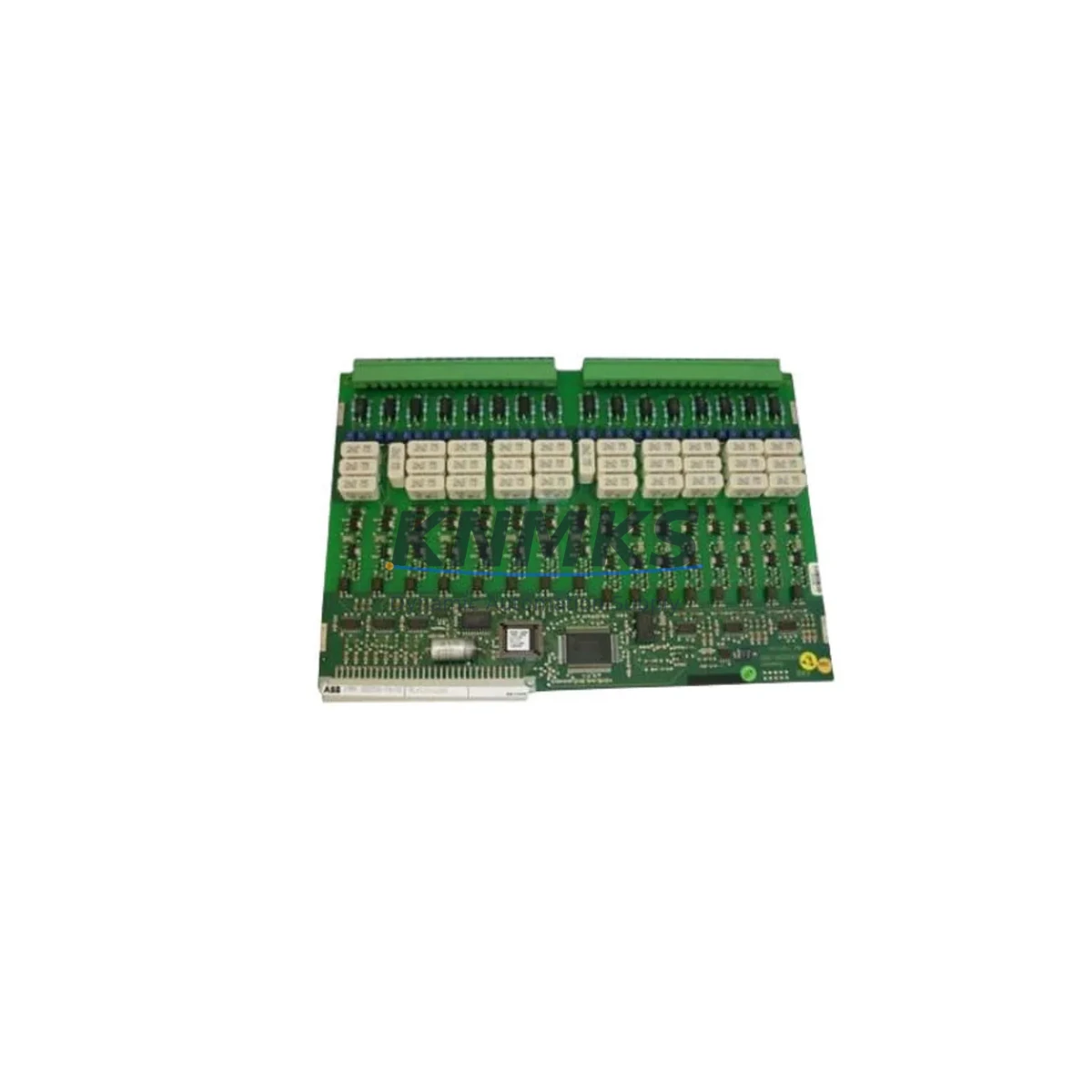

ABB 1MRK000508-BDr04 Migration-Ready Protection Relay: Legacy System Migration and Compatible Upgrade

The ABB 1MRK000508-BDr04 is a firmware-configurable protection relay module designed for direct integration into existing REx IED-based protection architectures. As legacy relay platforms such as the REX521 and REX523 approach end-of-life and spare part availability narrows, the 1MRK000508-BDr04 provides a validated migration path that preserves existing protection logic, minimizes panel rework, and maintains substation communication continuity. This module is pre-shipment tested and backed by a support terms confirmed by quotation, making it a reliable choice for utilities, industrial plant operators, and system integrators managing aging protection infrastructure.

Sourced from ABB’s REx IED platform, the 1MRK000508-BDr04 supports IEC 61850 Edition 1 and Edition 2 communication, enabling seamless integration with existing SCADA systems and substation automation networks without requiring protocol gateway additions. GOOSE messaging and sampled values are natively supported, which is critical when migrating from older hardwired intertripping schemes to modern digital protection coordination.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the ABB 1MRK000508-BDr04 into a legacy protection panel requires a structured pre-engineering review. The first step is an auxiliary power audit: confirm that the existing DC distribution board or UPS system can supply the module’s auxiliary input range (24–250 VDC). Where the legacy system used a dedicated 110 VDC bus for the REX521 or REX523, the wide-range input of the 1MRK000508-BDr04 typically eliminates the need for a separate DC/DC converter, but terminal block rewiring from the old relay’s auxiliary terminals to the new module’s X1 connector block must be verified against the updated wiring diagram.

For installations where the existing protection panel also houses an ABB REF615 feeder protection relay or an ABB RET670 transformer protection IED, the 1MRK000508-BDr04 can share the same IEC 61850 station bus segment, reducing the number of managed Ethernet switch ports required. If the substation LAN uses an ABB FOX515 or similar multiplexer for legacy serial communication, plan for a parallel IEC 61850 network segment during the cutover window to avoid disrupting live protection functions on adjacent bays.

Backplane and rack considerations are equally important. Where the legacy system used a modular rack such as the ABB COMBIFLEX or a third-party 19″ DIN rail chassis, confirm that the 1MRK000508-BDr04’s physical depth and connector pitch are compatible with the existing panel interior. In many brownfield substations, the available panel depth is constrained by existing cable trays and busbar arrangements, so a physical mock-up or 3D panel layout review is recommended before ordering.

I/O mapping is one of the most time-intensive steps in any relay replacement project. The 1MRK000508-BDr04’s binary inputs and output relays are fully configurable via ABB’s PCM600 engineering tool. Before decommissioning the legacy REX521 or REX523, extract the existing configuration file and use it as the baseline for the new I/O signal matrix. Pay particular attention to trip circuit supervision (TCS) wiring, since the output relay contact arrangement on the 1MRK000508-BDr04 differs from the fixed-contact layout of older REX-series modules. Where signal isolators are used between the relay output and the circuit breaker trip coil, verify that the isolator’s input voltage and current ratings remain compatible with the new module’s output relay specifications.

For sites that include an ABB CP600 or CP635 HMI panel, update the HMI project to reflect the new IED address and revised signal tag names before the cutover. GOOSE subscriber configurations on adjacent IEDs — such as a bus coupler REL670 or a line differential REL670 — must also be updated to reference the new 1MRK000508-BDr04 IED name and dataset structure. Failure to update GOOSE subscriptions is one of the most common causes of protection scheme failures during relay replacement commissioning.

Downtime Control During System Migration

Minimizing outage duration during a protection relay replacement is a primary concern for any plant or substation operator. The recommended approach for the ABB 1MRK000508-BDr04 migration is a parallel pre-commissioning strategy: configure and test the new module on the bench using PCM600 before the scheduled outage window. Load the protection settings, I/O mapping, and IEC 61850 configuration offline, and perform a secondary injection test using a relay test set to verify all protection functions operate correctly at the specified pickup and time-delay settings.

During the outage, follow a structured sequence: isolate the circuit under protection, remove the legacy REX521 or REX523 from service, install and wire the 1MRK000508-BDr04, restore auxiliary power, and perform a final on-site functional check including trip circuit continuity, binary input verification, and GOOSE link confirmation. A pre-prepared commissioning checklist — covering auxiliary voltage, binary input states, output relay wiring, IEC 61850 communication status, and protection function enable/disable status — reduces the risk of errors under time pressure.

Where a hot-standby or N-1 protection arrangement exists, coordinate the relay replacement with the system operator to ensure that backup protection remains active on adjacent feeders or transformer bays throughout the outage. Document all as-left settings and wiring changes in the station protection file immediately after commissioning to maintain an accurate record for future maintenance cycles. All units supplied by KNMKS include a pre-shipment functional test report, which can be used as the baseline commissioning reference and reduces on-site testing time.

Retrofit Support FAQ

Q1: Is the ABB 1MRK000508-BDr04 a direct drop-in replacement for the REX521 or REX523?
The 1MRK000508-BDr04 is a functional replacement within the REx IED platform, but it is not a mechanical drop-in. Panel cutout dimensions, terminal block layouts, and auxiliary wiring must be verified against the existing installation drawings. In most cases, a wiring adapter or terminal block relabeling is required. PCM600 is used to configure the new module’s protection functions and I/O mapping to match the legacy relay’s operational behavior.

Q2: What communication protocols does the 1MRK000508-BDr04 support, and is it compatible with my existing SCADA system?
The module natively supports IEC 61850 Ed.1 and Ed.2 (MMS and GOOSE), as well as DNP3 and Modbus TCP depending on the firmware variant. For legacy SCADA systems using SPA-bus or LON protocol, a protocol converter or gateway device will be required. Confirm the target firmware version and protocol license with your ABB representative or KNMKS before ordering to ensure compatibility with your existing RTU or SCADA front-end.

Q3: Does KNMKS provide pre-shipment testing, and what does the support terms confirmed by quotation cover?
Yes. Every ABB 1MRK000508-BDr04 unit supplied by KNMKS undergoes a pre-shipment functional test covering auxiliary power input, binary I/O operation, communication port integrity, and display function. A test report is included with each shipment. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, or unauthorized firmware modification.

Q4: How long does it typically take to receive the unit, and is stock available?
KNMKS maintains inventory of the ABB 1MRK000508-BDr04 to support urgent spare part and retrofit requirements. Standard lead time for in-stock units is 3–7 business days for international shipments. For project quantities or long-term supply agreements (12–36 months), contact KNMKS to discuss reserved stock arrangements and volume pricing. Email admin@knmks.com or call +86 18359268345 for availability confirmation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

1MRK000508-BDr04

Product Family

Relays & Interface

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Interface range

Relays, isolation and signal modules

Common needs

Coil voltage and contact rating

Project support

Panel wiring and signal protection

Inquiry Support

• Relay base and module matching
• Signal isolation and protection options
• Panel accessory inquiry support

What to Send Us

• Brand and exact model number: ABB 1MRK000508-BDr04
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
