ABB 1MRK000167-GCr00 Fail-Safe Protection Relay PC Board

Overview

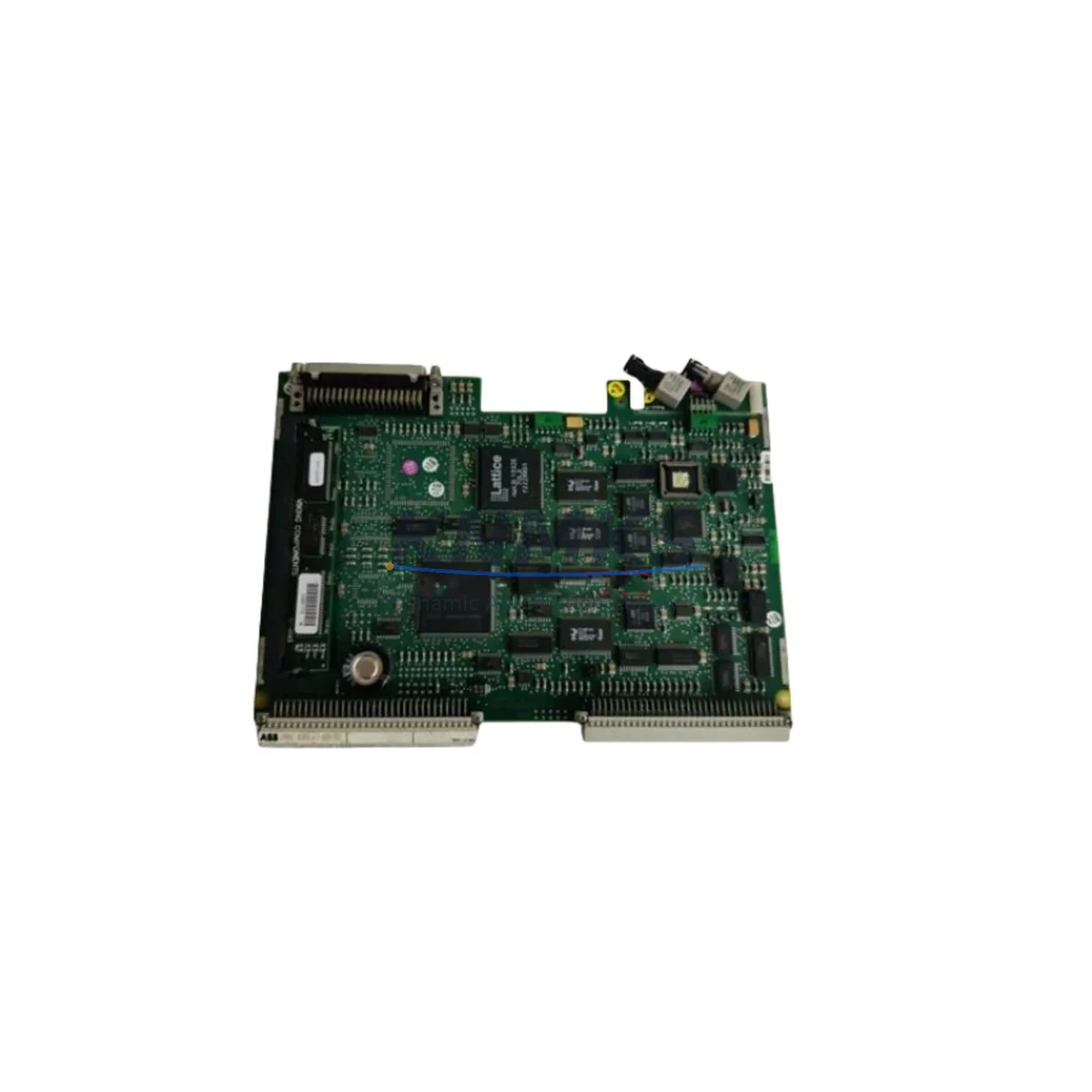

ABB 1MRK000167-GCr00 Fail-Safe Protection Relay PC Board for Industrial Control Reliability

In critical industrial environments — from high-voltage substations and petrochemical plants to continuous steel mills and offshore platforms — the integrity of protection relay systems is non-negotiable. The ABB 1MRK000167-GCr00 (cross-reference: 1MRK000005-258) is a precision-engineered protection relay PC board designed for the ABB REL, REB, and REF series of numerical protection relays. It serves as the core processing and signal conditioning assembly within the relay chassis, directly governing fault detection, trip logic, and interlock execution in high-stakes electrical protection circuits.

When a protection relay fails silently — or worse, trips spuriously — the consequences extend far beyond a single panel. Unplanned shutdowns in power generation, refinery control, or water treatment can cascade into hours of lost production, equipment damage, and safety incidents. The 1MRK000167-GCr00 is built to prevent exactly these scenarios, delivering stable, repeatable performance even under sustained electromagnetic interference, supply voltage fluctuations, and harsh ambient conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 1MRK000167-GCr00 does not operate in isolation. Its reliability is directly tied to the health of the surrounding protection and control architecture. Maintenance engineers planning a board replacement should conduct a concurrent inspection of the entire protection relay panel to prevent repeat failures and ensure system-wide integrity.

Begin with the ABB REL 316*4 or REF 615 relay chassis itself — verify that the backplane connectors show no signs of oxidation, mechanical stress, or intermittent contact, as a degraded backplane can corrupt the replacement board within weeks of installation. Next, inspect the DC auxiliary power supply module feeding the relay panel; voltage ripple or transient spikes above 10% of nominal can stress the board’s internal regulators and accelerate component aging. ABB’s PSTX or PST series soft-starter power feeds used in adjacent motor protection circuits should also be checked for harmonic distortion that may propagate into the relay bus.

The binary input/output (I/O) terminal blocks connected to the board’s trip and alarm outputs deserve close attention — loose or corroded terminals are a leading cause of false trip signals that are often misdiagnosed as board failures. Similarly, the communication interface module (IEC 61850 GOOSE or DNP3 card, depending on relay variant) should be reseated and its fiber or copper link verified, as communication faults can mask genuine protection events. Finally, review the surge protection devices (SPDs) on the CT/VT secondary circuits feeding the relay; a failed SPD allows transient energy to reach the board directly, causing latent damage that only manifests under load.

Critical Industrial Safety Applications

The ABB 1MRK000167-GCr00 is deployed across the most demanding protection scenarios in global industry. In petrochemical and refinery plants, it governs transformer differential protection and busbar fault isolation, where a delayed trip can result in catastrophic arc flash events. In power generation facilities — including coal, gas, and hydroelectric plants — it supports generator protection relays that must respond within milliseconds to out-of-step conditions or loss-of-excitation faults.

In mining and mineral processing operations, where high-capacity motors drive crushers, conveyors, and hoists, the board’s robust EMI immunity ensures protection relay logic remains stable despite the intense electrical noise generated by variable frequency drives and large contactors. Water and wastewater treatment plants rely on it for pump motor protection in humid, chemically aggressive environments where lesser components corrode rapidly. In metallurgical and steel production facilities, it withstands the extreme thermal cycling and vibration present near arc furnaces and rolling mills. Port and marine terminal crane systems depend on it for reliable feeder protection in salt-air environments with frequent load switching transients.

Across all these applications, the common requirement is zero tolerance for protection system failure. The 1MRK000167-GCr00 meets this standard through its hardened design, rigorous factory testing, and compatibility with ABB’s established relay platform — ensuring that when a fault occurs, the protection system responds correctly, every time.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 1MRK000167-GCr00?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional non-conformance under normal operating conditions. Each unit undergoes pre-shipment functional testing — including power-on verification, I/O signal checks, and communication interface validation — before dispatch. If a fault is confirmed within the confirmed support period, we provide replacement or repair at no additional cost.

Q2: How do I confirm compatibility before installation?
Compatibility is determined by the relay chassis model and firmware revision. The 1MRK000167-GCr00 is designed for ABB REL, REB, and REF series numerical protection relays. Cross-reference the board part number against your relay’s bill of materials or the ABB relay documentation. If you have the relay serial number, our technical team can confirm compatibility before shipment.

Q3: Can this board replace the 1MRK000005-258 directly?
Yes. The 1MRK000005-258 is an alternate part number for the same board assembly. Both references are interchangeable within the same relay platform. No firmware changes or hardware modifications are required for a direct swap, provided the relay chassis and software version are compatible.

Q4: What is your long-term supply commitment for this part?
We maintain dedicated stock of the 1MRK000167-GCr00 to support long-term maintenance contracts and multi-site spare parts programs. For customers requiring guaranteed availability over 12–36 months, we offer reserved inventory agreements. Contact our team to discuss volume pricing, scheduled delivery, and extended supply commitments tailored to your maintenance planning cycle.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

ABB
ABB

Model / Series

1MRK000167-GCr00 1MRK000005-258

Product Family

Relays & Interface

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Interface range

Relays, isolation and signal modules

Common needs

Coil voltage and contact rating

Project support

Panel wiring and signal protection

Inquiry Support

• Relay base and module matching
• Signal isolation and protection options
• Panel accessory inquiry support

What to Send Us

• Brand and exact model number: ABB 1MRK000167-GCr00 1MRK000005-258
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
