DCS I/O Module Replacement: Signal & MTU Checks

A DCS I/O module is not identified safely by channel count or front-panel appearance alone. The replacement decision can depend on the signal type, field termination, module termination unit (MTU), communication interface, redundancy arrangement, hazardous-area requirements and the controller or I/O family around it.

This guide is for maintenance planning and spare-parts RFQ preparation. It is not an instruction to remove or install equipment in a live process system. Confirm the technical decision with the responsible controls engineer and follow the plant’s approved isolation, change-control, cybersecurity and safety procedures.

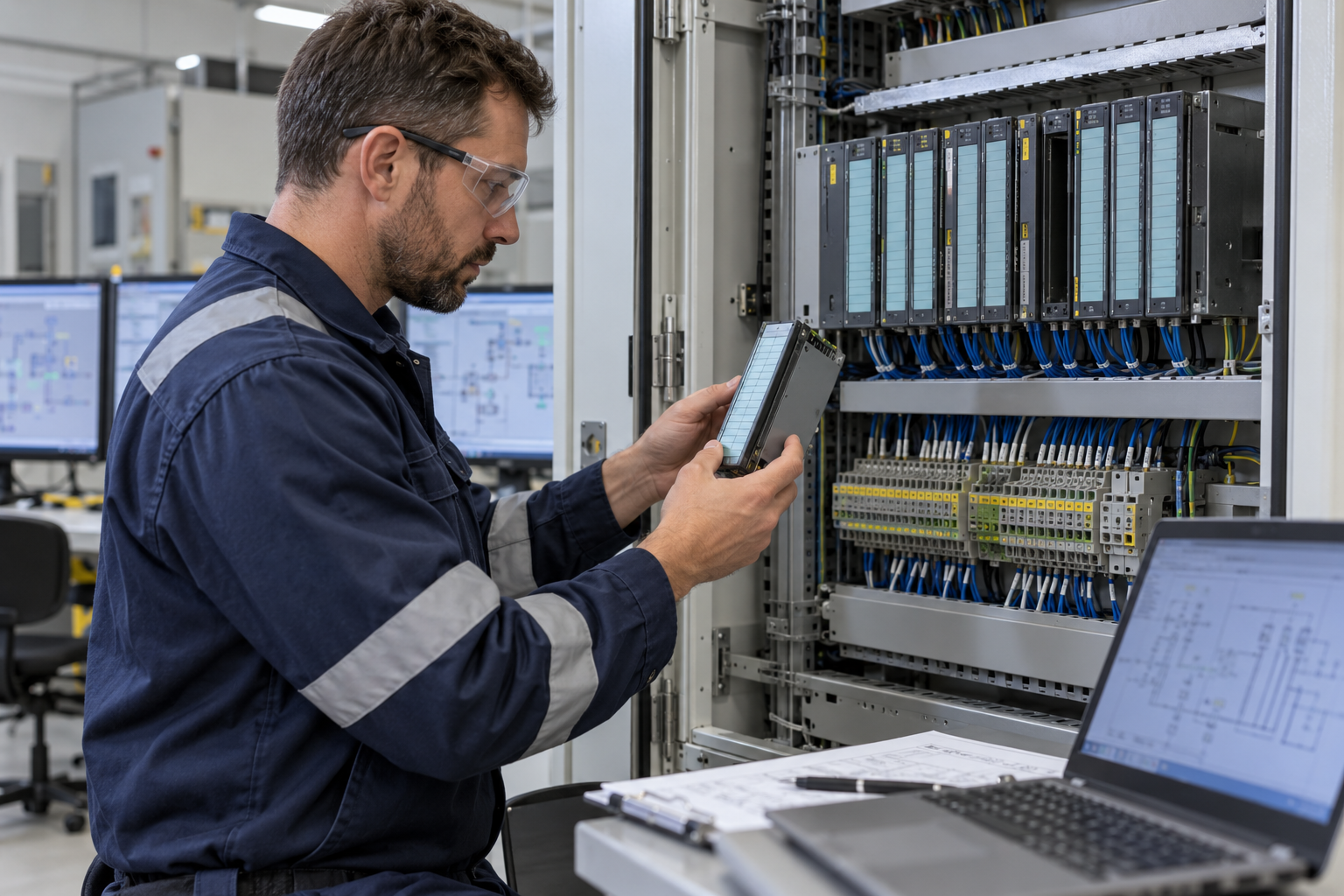

Maintenance engineer reviewing a distributed control system I/O module and marshalling terminals — Review the I/O module together with its termination, wiring and system context; the card alone is not the complete interface.

Start with the installed module and its system context

Record the manufacturer, full catalog number, hardware revision if shown, installed location and the parent DCS or controller family. Include the node, station, cabinet, rack or carrier position and the position of any redundant partner. A module that looks similar may belong to a different I/O family, communication interface or system generation.

Capture a permitted nameplate photo and compare it with the site’s cabinet drawings, I/O list and maintenance records. The record should distinguish the installed part from a proposed alternative. Do not describe an item as compatible merely because the brand and channel count appear to match.

Separate signal function from channel count

Identify what each channel is actually doing: analog input, analog output, digital input, digital output, pulse, RTD, thermocouple, frequency or a specialized safety or intrinsic-safety function. Then record the electrical range, isolation arrangement, excitation or loop-power requirement, diagnostic behavior and any signal conditioning.

For example, two eight-channel analog input modules can differ in input type, isolation, HART capability, redundancy support or hazardous-area interface. A channel count on a product listing is therefore only one field in the comparison. The RFQ should include the signal list or the relevant I/O schedule when the exact module role is unclear.

Check the MTU, terminal and wiring boundary

Many distributed I/O systems use a separate termination or mounting element. Confirm the installed MTU or terminal assembly, keying, power feed, field wiring arrangement and whether the proposed module is intended for that termination. A replacement card can be electrically similar but physically unsuitable if the MTU, keying or terminal assignment is different.

ABB’s official System 800xA material describes S800 I/O as a distributed, modular process I/O family and identifies MTUs as the elements that host S800 I/O modules. ABB also provides a hardware selector for comparing modules and MTUs. Use the manufacturer’s current selector and the plant drawings together; the selector does not replace an application-level compatibility check.

Record whether the field wires land directly on the module, on an MTU, through marshalling terminals, or through an intermediate signal-conditioning assembly. If the cabinet has an existing marshalling design, include the terminal designation and drawing reference in the inquiry. This helps prevent a quotation from matching the card while overlooking the installation interface.

Verify communication and redundancy requirements

Document the communication interface, fieldbus or network path, node address and controller-side interface associated with the I/O station. The same I/O family can be used with different communication arrangements, and the replacement may require a different interface module or system configuration.

Check whether the installation uses module redundancy, communication redundancy, controller redundancy or no redundancy. A non-redundant spare is not automatically suitable for a redundant pair, and a module with a similar signal function may not preserve the existing diagnostic or switchover behavior. Record the partner module, communication interface and required configuration status before requesting a replacement.

ABB’s S800 I/O documentation lists features such as module-level redundancy, online reconfiguration and HART pass-through for applicable products. Treat those as family or model-specific capabilities, not assumptions that apply to every card in the range.

Review safety and environmental boundaries

Note whether the channel is part of a safety function, an intrinsic-safety loop, a classified area installation or a high-integrity application. Record the required certification, temperature range, installation environment and approved replacement boundary. A standard I/O module should not be presented as a substitute for a safety or hazardous-area module without the responsible engineering review.

Also check whether the DCS configuration requires a matching hardware definition, firmware revision, device description or engineering-tool version. Keep any configuration files, passwords, plant network details and process logic out of a normal email inquiry unless the site has approved a secure transfer method.

What to include in a DCS I/O module RFQ

A useful inquiry includes the exact part number, manufacturer, series or platform, signal type, channel count, MTU or terminal reference, controller or communication interface, redundancy requirement, quantity, destination country and required timing. Add a nameplate photo and cabinet or drawing reference only when permitted by your organization.
